1. Nhanganyaya
Thank you for choosing the Fudajo XXL Outdoor Enclosure. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new animal enclosure. Please read these instructions carefully before beginning assembly and retain them for future reference.
This enclosure is designed to provide a secure and spacious environment for small animals such as chickens, guinea pigs, and rabbits. Its robust construction and protective features ensure the well-being of your pets.
2. Mirayiridzo Yekuchengetedza
- Always assemble the enclosure on a flat, stable surface to prevent tipping.
- Iva nechokwadi chekuti zvese zvakabatana zvakabatana zvakanaka usati waisa mhuka mukati.
- Regularly inspect the enclosure for any damage, loose parts, or sharp edges that could harm animals or users.
- Keep children away from the assembly area during installation.
- Do not climb on or lean heavily against the enclosure.
- Position the enclosure away from potential hazards such as steep slopes, unstable structures, or areas prone to flooding.
- The sunshade roof provides UV protection and water resistance; however, it is not designed to withstand extreme weather conditions like heavy snow loads or strong winds. Remove the sunshade in such conditions if necessary.
3. Package Zviri mukati
Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact your retailer.
- Galvanized steel frame tubes
- PVC-coated chicken wire mesh
- UV-resistant and waterproof sunshade roof
- Door assembly with latch mechanism
- Connectors and fasteners (e.g., cable ties, bolts)
- Ground stakes or base plates (if applicable)
4. Setup uye Gungano
Assembly is designed to be straightforward. It is recommended to have at least two people for easier installation.
- Gadzirira Saiti: Choose a level, clear area in your garden for the enclosure. Ensure adequate drainage and protection from strong winds.
- Unganidza Frame: Connect the galvanized steel tubes according to the provided diagram. Start by forming the base rectangle, then attach the vertical and arched roof sections. Ensure all connections are tight.
Image 1: The assembled frame of the Fudajo XXL Outdoor Enclosure, viewed from the front, showing the integrated door structure. The frame is made of galvanized steel tubes, and the enclosure is set on a grassy outdoor area.
- Attach the Wire Mesh: Unroll the PVC-coated chicken wire mesh and secure it to the frame using the provided cable ties or fasteners. Start from one end and work your way around, ensuring the mesh is taut and evenly distributed.
Mufananidzo 2: A pedyo-up view of a connection point in the enclosure's galvanized steel frame. The green PVC-coated wire mesh is securely attached to the frame using a black cable tie, demonstrating the assembly method.
- Isa Musuwo: Ensure the door frame is properly integrated into the main structure. Attach the latch mechanism to allow for secure closing.
Image 3: A detailed close-up of the metal latch mechanism on the door of the Fudajo XXL Outdoor Enclosure. The latch is designed to securely close the door, preventing animals from escaping and protecting them from predators.
- Attach the Sunshade Roof: Drape the UV-resistant and waterproof sunshade over the designated section of the roof. Secure it firmly to the frame using the provided attachments to prevent it from being dislodged by wind.
Image 4: The Fudajo XXL Outdoor Enclosure fully assembled with the white sunshade roof installed over a portion of the structure. The enclosure is situated on a grassy area with trees in the background.
- Secure to the Ground: Use ground stakes or secure the base plates (if included) to anchor the enclosure firmly to the ground, especially in windy areas.
Mufananidzo 5: A pedyo-up view of the base plate at the bottom of one of the enclosure's support poles. The plate is designed to be secured to the ground, providing stability for the structure.

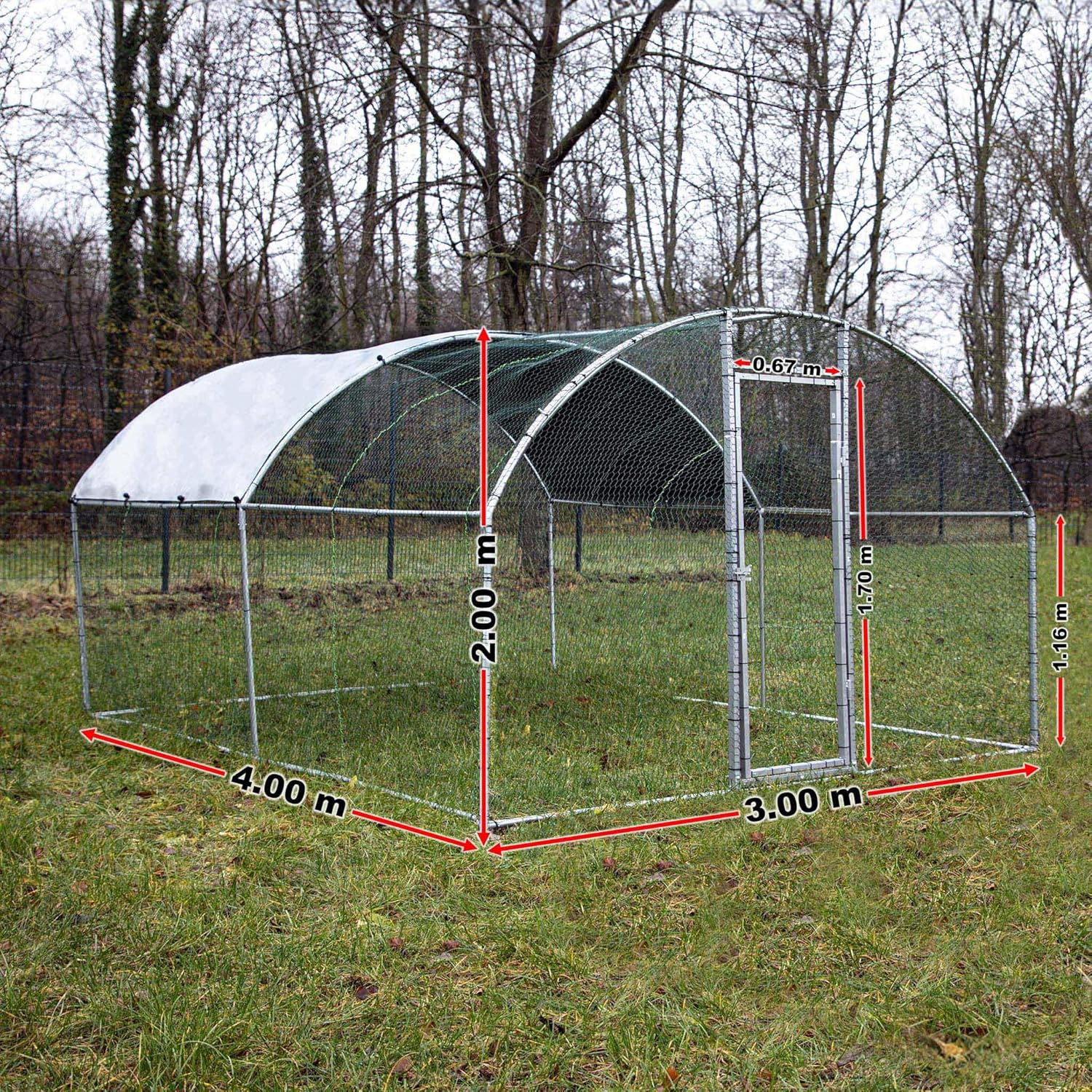

Image 6: A diagram illustrating the overall dimensions of the Fudajo XXL Outdoor Enclosure: 4.00 m (length), 3.00 m (width), and 2.00 m (height), with specific measurements for the door and side panels.
5. Operating Instructions
Once assembled, the Fudajo XXL Outdoor Enclosure is ready for use.
- Animal Placement: Carefully introduce your small animals to the enclosure. Ensure they have access to fresh water, food, and appropriate shelter within the enclosure.
- Door Operation: Use the latch mechanism to open and securely close the door. Always ensure the door is properly latched to prevent animals from escaping and to protect them from predators.
- Environmental Enrichment: Customize the interior of the enclosure with toys, hiding spots, and other enrichment items suitable for your animals' needs.
- Sunshade Use: The sunshade provides protection from direct sunlight and light rain. Adjust its position as needed to provide optimal shade.
Mufananidzo 7: Mukati view of the Fudajo XXL Outdoor Enclosure, showing the partial sunshade covering the roof. The spacious interior provides ample room for small animals.
Image 8: A wide interior shot of the Fudajo XXL Outdoor Enclosure, looking towards the back. The galvanized steel frame and wire mesh are visible, providing a secure and open environment for pets.
6. Kuchengeta
Regular maintenance will extend the life of your enclosure and ensure the safety of your animals.
- Kuchenesa: Periodically clean the wire mesh and frame with mild soap and water. Rinse thoroughly and allow to dry completely.
- Kuongorora: Regularly check all frame connections, wire mesh, and the door latch for any signs of wear, damage, or corrosion. Tighten any loose fasteners.
- Sunshade Care: Clean the sunshade with a damp cloth. If heavy snow or strong winds are expected, remove the sunshade to prevent damage to the enclosure structure.
- Ground Anchoring: Ensure the enclosure remains securely anchored to the ground, especially after heavy rain or strong winds.
7. Kugadzirisa matambudziko
- Enclosure feels unstable: Ensure all frame tubes are fully inserted into their connectors and all fasteners are tightened. Verify that the enclosure is on level ground and securely anchored.
- Gonhi risina kuvharwa zvakanaka: Check the alignment of the door frame and the latch mechanism. Adjust if necessary. Ensure no debris is obstructing the latch.
- Wire mesh sagging or loose: Re-tighten cable ties or add more if needed. Ensure the mesh is evenly stretched across the frame.
- Water pooling on sunshade: Ensure the sunshade is taut and properly angled to allow water runoff. Clear any debris that might be collecting on it.
8. Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Model Number | 64753 |
| Dimensions (L x W x H) | 400 x 300 x 200 masendimita (4 x 3 x 2 mamita) |
| Product Weight | 48.07 makirogiramu |
| Material | Galvanized Steel (frame), PVC-coated (wire mesh) |
| Mesh Size | 25 mamirimita |
| Special Features | Waterproof (sunshade) |
| Inokurudzirwa kuMhuka | Small size (e.g., chickens, rabbits, guinea pigs) |
| Nhamba Yemikova | 1 |
9. Warranty uye Tsigiro
For warranty information and customer support, please refer to the documentation provided with your purchase or contact your retailer directly. Keep your proof of purchase for any warranty claims.
