Nhanganyaya
Thank you for choosing the EMKE Flat Panel Towel Radiator. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new towel radiator. Please read these instructions carefully before installation and retain them for future reference.
Safety Information
Kuti uve nechokwadi chekuti ichishanda zvakanaka uye kudzivirira kukuvara, tevera nhungamiro dzekuchengetedza:
- Installation must be performed by a qualified professional in accordance with local building and plumbing regulations.
- Do not cover the radiator with towels or other materials when it is in operation, as this can lead to overheating and fire hazards.
- Keep children and pets away from the hot surfaces of the radiator to prevent burns.
- Regularly inspect the radiator and its connections for any signs of damage or leaks. If a leak is detected, immediately shut off the water supply and contact a professional.
- Ensure proper ventilation in the room where the radiator is installed.
Product Overview
The EMKE Flat Panel Towel Radiator is designed for efficient heating and towel drying in bathrooms. It features a durable construction and a sleek design.

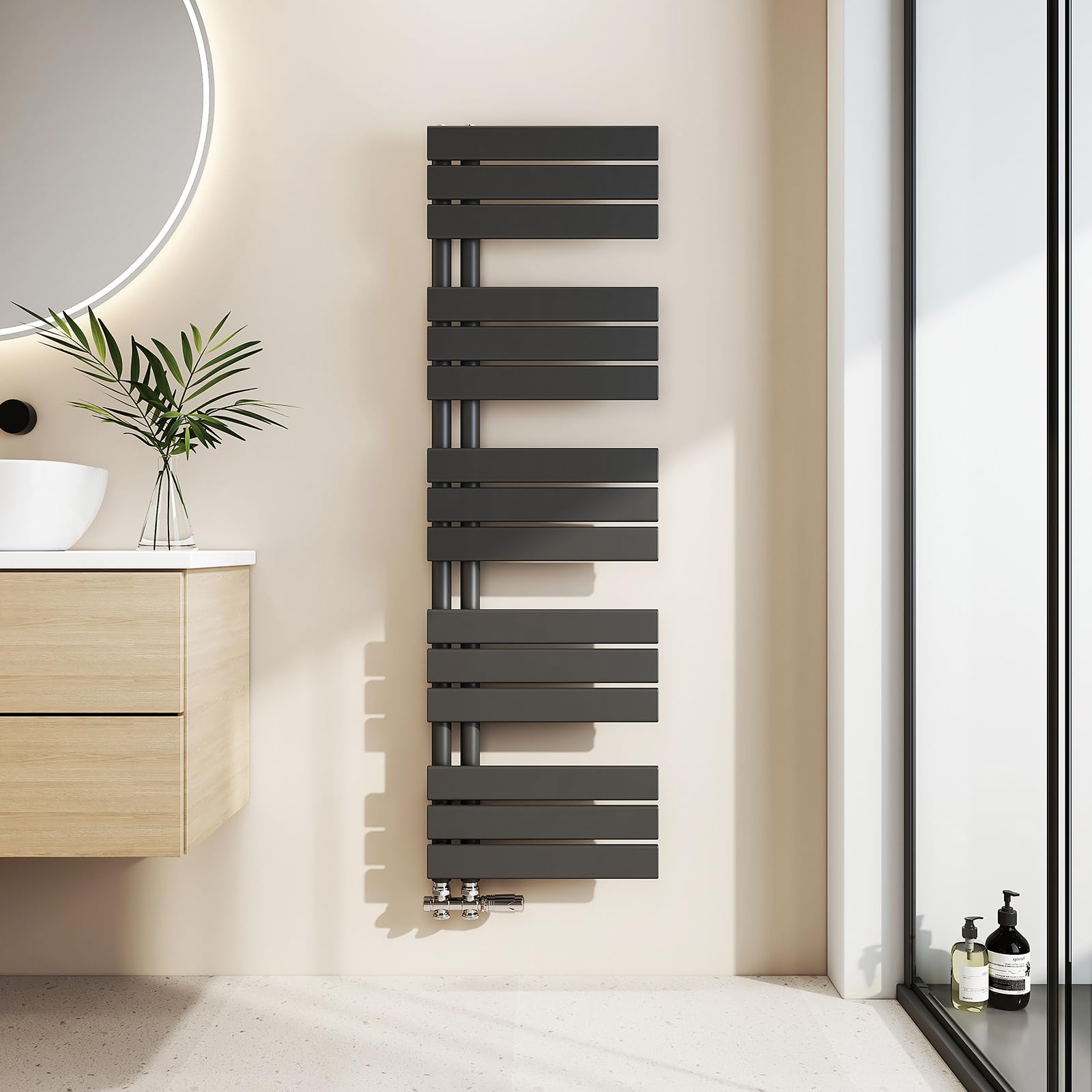

Figure 1: EMKE Flat Panel Towel Radiator (1320x400mm, Black)
Zvinokosha:
- Efficient Heat Emission: Designed for uniform heat distribution and effective towel drying.
- Hygienic Benefits: Aids in drying towels quickly, which can help reduce bacterial growth.
- Kuvaka Kwemhando yepamusoro: Made from high-quality SPCC steel with an environmentally friendly baking paint and anti-corrosion coating for extended durability.
- Dhizaini Inochengetedza Nzvimbo: Wall-mounted design optimizes bathroom space.

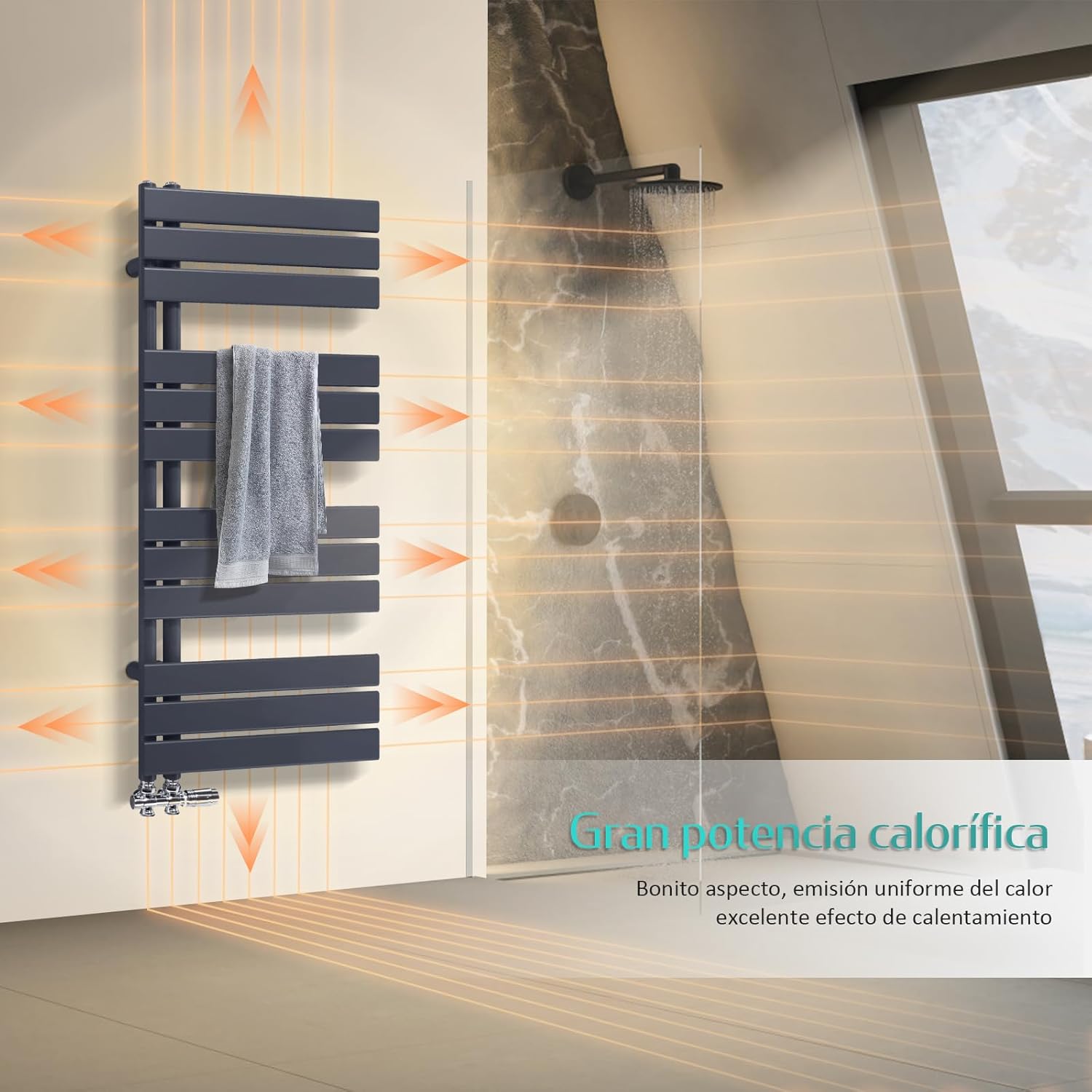

Figure 2: High heat output and uniform heat emission.
Figure 3: Benefits include reduced humidity and bacteria.
Figure 4: High-quality material construction with SPCC steel.
Setup uye Installation
The EMKE Flat Panel Towel Radiator is designed for connection to a hot water central heating system. Professional installation is strongly recommended.
Kuisa Matanho:
- Kugadzirira: Ensure the wall is suitable to support the weight of the radiator when filled with water. Gather all necessary tools and components.
- Kukwidza: Mark the drilling points on the wall according to the radiator's dimensions and mounting brackets. Drill holes and secure the mounting brackets. The wall distance is adjustable between 99-115mm.
- Connection: Connect the radiator to your hot water heating system. The connection thread is G1/2" with a central spacing of 50mm. The radiator can be installed for either left or right side connection by inverting its orientation.
- Mavharuvhu: Please note that connection valves are not included with the radiator and must be purchased separately.
- Kuedza: After installation, slowly fill the system with water and check all connections for leaks. Bleed any air from the radiator using the bleed valve.
Figure 5: Technical dimensions and connection details.
Figure 6: Flexible connection direction (left or right).
Operating Instruction
Once properly installed and connected to your hot water central heating system, the EMKE Flat Panel Towel Radiator operates in conjunction with your home's heating. Ensure your central heating system is active and the radiator valves are open to allow hot water circulation.
- Kushanda kweKudziisa: The radiator will heat up as hot water from your central heating system flows through it.
- Towel Drying: Hang towels on the flat panels for efficient drying. Avoid overloading the radiator to maintain optimal heat distribution.
Maintenance
Regular maintenance ensures the longevity and efficiency of your EMKE Towel Radiator.
- Kuchenesa: Chenesa radiator nguva dzose ne soft, damp jira. Usashandise abrasive cleaners, solvents, kana makemikari ane hukasha, sezvo izvi zvinogona kukanganisa kupera.
- Kubuda ropa: If the radiator is not heating evenly (cold spots), it may have air trapped inside. Use a radiator key to open the bleed valve until water starts to come out, then close it. Perform this when the heating system is off and the radiator is cool.
- Kutariswa Kwekubatanidza: Periodically check all pipe connections for tightness. If any signs of corrosion or leaks are observed, consult a qualified plumber.
Kugadzirisa matambudziko
Heano mamwe matambudziko akajairika uye anogona kugadzirisa iwo:
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Radiator haisi kupisa | Central heating off, valves closed, air trapped in radiator. | Ensure central heating is on. Open radiator valves. Bleed the radiator (see Maintenance). |
| Radiator leaking | Loose connections, damaged seal, manufacturing defect. | Tighten connections carefully. If leak persists or is from the radiator body, shut off water supply and contact a qualified plumber or EMKE support. |
| Kusakwana kupisa kubuda | Radiator too small for room, system pressure low, air in system. | Ensure radiator size matches room requirements. Check central heating system pressure. Bleed the radiator. |
Zvinotsanangurwa
Detailed technical specifications for the EMKE Flat Panel Towel Radiator (Model 1320x400mm, Black, 570W):
| Feature | Tsanangudzo |
|---|---|
| Dimensions (Kureba x Kufara) | 1320 mm x 400 mm |
| Heat Output | 570 W |
| Material | SPCC Steel |
| Color | Nhema |
| Energy Type | Mvura Inopisa |
| Connection Thread | G1/2" |
| Central Connection Spacing | 50 mm |
| Adjustable Wall Distance | 99-115 mm |
| Recommended Inlet Water Temp. | 75°C |
| Recommended Outlet Water Temp. | 65°C |
| Nzvimbo Yekamuri Inoshanda | 6 m² |
| Certifications | DIN EN 442 tested |
Figure 7: Detailed parameter list and dimensions.
Warranty uye Support
For any questions, technical assistance, or warranty claims, please contact EMKE customer service. Ensure you have your product model and purchase details available when contacting support.
You can find more information and contact details on the official EMKE brand store: EMKE Brand Store
