Bhuku rekushandisa reMonstrum Banshee ED 1-10x24 LPVO Rifle Scope

Nhanganyaya

This manual provides comprehensive instructions for the proper setup, operation, and maintenance of your Monstrum Banshee ED 1-10x24 LPVO Rifle Scope. Designed for versatility and precision, this scope features an Extra Low Dispersion (ED) glass lens system for superior image quality and a range of reticle options. Please read this manual thoroughly before use to ensure optimal performance and longevity of your optic.

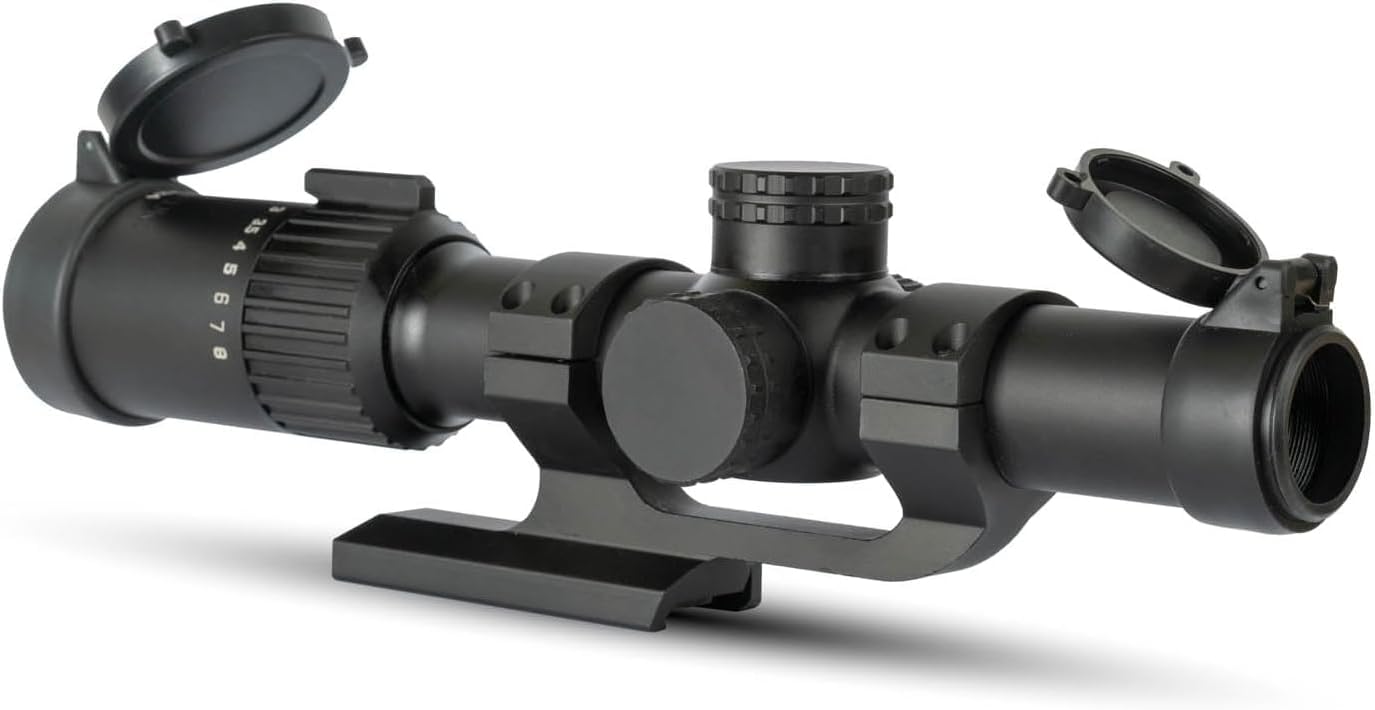

Tsanangudzo yemufananidzo A black Monstrum Banshee ED 1-10x24 LPVO Rifle Scope, shown with its included offset scope mount and flip-up lens covers. The scope features adjustment turrets and a magnification ring.

Gadzirira

Kuisa Scope

The Monstrum Banshee LPVO comes with a dedicated offset cantilever mount. Ensure your rifle's Picatinny rail is clean and free of debris.

1. Position the cantilever mount on your rifle's Picatinny rail, ensuring proper eye relief for your shooting stance.
2. Secure the mount to the rail using the provided screws. Tighten evenly to the manufacturer's recommended torque specifications.
3. Place the scope into the rings of the mount. Ensure the reticle is level with the rifle.
4. Tighten the scope ring screws evenly, alternating between screws to apply even pressure. Avoid over-tightening, which can damage the scope tube. Refer to the included wrench sizes for proper fit.

Tsanangudzo yemufananidzo A Monstrum Banshee 1-10x24 SFP LPVO rifle scope mounted on a black rifle, viewed from above, with a snowy, rocky ground in the background. This illustrates the scope's appearance when installed.

Diopter Adjustment

To ensure a clear reticle image, adjust the diopter. Point the scope at a plain, bright background (like a wall or clear sky). Look through the scope and quickly glance away. Then, look back through the scope and immediately adjust the diopter ring (located at the eyepiece) until the reticle appears sharp and clear. Repeat this process until the reticle is instantly clear when you look through the scope.

Operating the Scope

Magnification Adjustment

The Banshee LPVO offers a variable magnification range from 1x to 10x. Rotate the magnification ring, located near the eyepiece, to adjust the desired power. The integrated throw lever facilitates quick and smooth magnification changes.

Tsanangudzo yemufananidzo A pedyo-up view of a hand adjusting the integrated throw lever on the magnification ring of a Monstrum Banshee LPVO, highlighting the ease of magnification changes.

At 1x magnification, the scope provides a true 1x view, allowing for rapid target acquisition similar to a red dot sight. As magnification increases, the target appears closer.

Tsanangudzo yemufananidzo Two circular views through the scope. The top image shows a target at 50 yards at 1x magnification, demonstrating a wide field of view. The bottom image shows the same target at 6x magnification, illustrating the increased detail and zoom.

Reticle Illumination

The Banshee LPVO features inline dial-controlled reticle illumination with 5 brightness levels in both red and green.

• Rotate the illumination dial, located on the left side of the scope, to turn the illumination on or off and select the desired brightness level.
• The "off" positions are located between each brightness setting, allowing you to quickly return to your preferred setting.
• While the illumination is effective in low-light conditions, it may not be daylight bright in direct sunlight.

Tsanangudzo yemufananidzo A close-up of a hand adjusting the illumination dial on the side of the Monstrum Banshee LPVO, showing the red and green brightness settings.

Windage uye Elevation Adjustments

The scope features precision turrets for windage (horizontal) and elevation (vertical) adjustments. Each click of the turret adjusts the point of impact by 1/2 MOA at 100 yards.

• Remove the turret caps to access the adjustment dials.
• Rotate the elevation turret (top) to adjust for vertical bullet drop. "UP" moves the point of impact up, "DOWN" moves it down.
• Rotate the windage turret (right side) to adjust for horizontal wind drift. "R" moves the point of impact right, "L" moves it left.
• After zeroing, you can reset the turrets to "0" by loosening the screws on the turret cap, rotating the cap to align "0" with the indicator mark, and then re-tightening the screws.

Tsanangudzo yemufananidzo A close-up of a hand adjusting the elevation turret on the top of the Monstrum Banshee LPVO, showing the clear markings for precise adjustments.

Reticle Options and Second Focal Plane (SFP)

The Banshee LPVO is available with several reticle options, including MX1, BDC B1, BDC C1, CM9, and BDC A2. The specific reticle for your model is BDC B1.

Tsanangudzo yemufananidzo A graphic displaying five different reticle patterns available for the Monstrum Banshee LPVO: MX1, BDC-C1, CM9, BDC-B1, and BDC-A2, each shown within a circular scope view.

This scope features a Second Focal Plane (SFP) reticle. In SFP scopes, the size of the reticle remains constant regardless of the magnification level. This ensures high visibility of the reticle at all magnifications. Ballistic drop compensation (BDC) marks on SFP reticles are typically accurate at a specific magnification (often the highest magnification), so consult your reticle's specific instructions for precise holdovers.

Tsanangudzo yemufananidzo A diagram illustrating the benefits of Extra Low Dispersion (ED) glass. It shows how standard glass can cause chromatic aberration (color fringing) and how ED glass corrects this, resulting in superior color contrast and sharper image quality. Below the diagrams are two comparative images of a deer, one showing the effect of chromatic aberration and the other showing the clear image with ED glass.

Maintenance

Kuchenesa maLens

Proper care of the lenses is crucial for maintaining optical clarity.

• Use a soft brush or compressed air to remove loose dust and debris from the lens surfaces.
• Apply a small amount of lens cleaning solution to a clean microfiber cloth.
• Gently wipe the lens surfaces in a circular motion, starting from the center and moving outwards.
• Avoid using harsh chemicals, abrasive cloths, or excessive pressure, as these can damage the lens coatings.

General Care

• Store the scope in a dry, cool place, preferably in its original packaging or a protective case.
• Keep the lens caps on when not in use to protect the lenses from dust and scratches.
• Periodically check all mounting screws and ensure they are securely tightened.
• Avoid exposing the scope to extreme temperatures or sudden temperature changes.

Kugadzirisa matambudziko

Zvinotsanangurwa

Warranty uye Support

Warranty Information

Monstrum offers a Hupenyu hwese Warranty on their products, covering defects in materials and workmanship. For specific terms and conditions, please refer to the official Monstrum websaiti kana kubata basa ravo revatengi.

Mutengi Support

For further assistance, technical support, or warranty claims, please visit the official Monstrum websaiti kana kubata timu yavo yekutsigira vatengi.
