1. Nhanganyaya
The Optex ORT8915-UHD is a state-of-the-art 4K DVB-T2 terrestrial digital television receiver. This device allows you to receive terrestrial digital television programs in stunning 4K quality, providing a high-quality visual and audio experience. It supports HEVC encoding for efficient broadcasting and offers various features to enhance your viewing experience.
2. Package Zviri mukati
Usati waenderera mberi nekuisa, ndapota simbisa kuti zvinhu zvese zviripo mupakeji:
- Optex ORT8915-UHD 4K DVB-T2 Receiver x1
- Power Adapter x1
- 1.5V Batteries x2
- Mushandisi Chinyorwa x1
- Remote Kudzora x1
- HDMI Cable x1
Image 2.1: The Optex ORT8915-UHD receiver along with its included accessories: power adapter, batteries, user manual, remote control, and HDMI cable.
3. Chigadzirwa Pamusoroview
3.1 Pamberi Panel

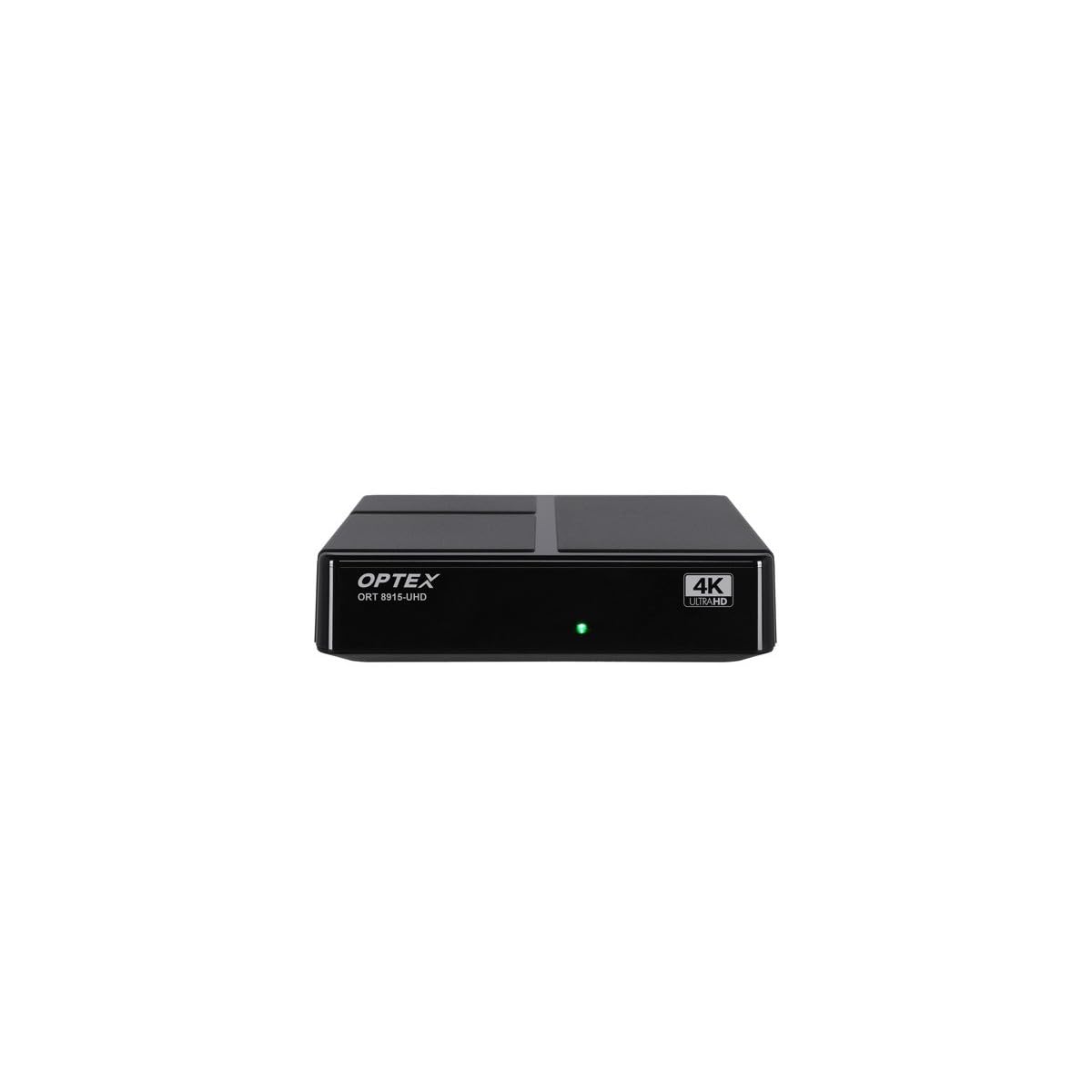

Mufananidzo 3.1: Mberi view of the Optex ORT8915-UHD receiver, showing the USB port and control buttons.
The front panel features a USB port for connecting external storage devices, along with basic control buttons for power, menu navigation, channel selection (CH+/CH-), and volume adjustment (V+/V-).
3.2 Rear Panel
Mufananidzo 3.2: Kumashure view of the Optex ORT8915-UHD receiver, displaying various input/output ports.
Rear panel inosanganisira zvinotevera zvinongedzo:
- ANT IN: For connecting your terrestrial antenna.
- OPTIC: Optical digital audio output.
- YE: Analog video/audio output.
- HDMI: High-Definition Multimedia Interface output for connecting to a TV.
- DC IN: Power input for the adapter.
3.3 Remote Kudzora
Image 3.3: The remote control for the Optex ORT8915-UHD receiver, featuring various function buttons.
The remote control provides full functionality for navigating menus, changing channels, adjusting volume, accessing program guides, and utilizing special features like Timeshift and USB recording.
4. Setup
- Batanidza iyo Antenna: Connect your terrestrial antenna cable to the "ANT IN" port on the rear panel of the receiver.
- Batanidza kuTV:
- For High-Definition (HD) connection: Use the provided HDMI cable to connect the "HDMI" port on the receiver to an HDMI input on your television.
- For Standard-Definition (SD) connection: Use an AV cable (not included) to connect the "AV" ports on the receiver to the corresponding AV inputs on your television.
- Batanidza Simba: Plug the power adapter into the "DC IN" port on the receiver, then plug the adapter into a power outlet.
- Isa Mabhatiri muKure: Open the battery compartment on the back of the remote control and insert the two 1.5V batteries, ensuring correct polarity.
- Power On: Press the power button on the receiver or the remote control to turn on the device.
- Select TV Input: On your television, select the correct HDMI or AV input source that corresponds to the connection you made in step 2.
5. Operating Instructions
5.1 Initial Channel Scan
Upon first use or after a factory reset, the receiver will guide you through an initial setup process, including a channel scan. Follow the on-screen prompts to automatically search for available DVB-T2 channels in your region. Ensure your antenna is properly connected for optimal results.
5.2 Basic Mabasa
- Channel Navigation: Shandisa iyo CH+ uye CH- buttons on the remote or front panel to change channels.
- Kudzora inzwi: Shandisa iyo V+ uye V- mabhatani ekugadzirisa vhoriyamu.
- Menu Access: Press the MENU bhatani kuti uwane menyu huru yezvigadziriso uye maficha.
- Chirongwa chechirongwa (EPG): Press the EPG bhatani kuti view the Electronic Program Guide, which displays broadcast schedules.
- Teletext: Access teletext services by pressing the TTX bhatani.
5.3 Advanced Features
- Timeshift (Live Control): Connect a USB storage device to the receiver. Press the Timeshift button (often a pause/play icon) to pause live TV, allowing you to resume viewgare gare.
- USB Recording (PVR): With a USB storage device connected, you can record live TV programs. Use the REC bhatani riri paremote kuti utange kurekodha.
- Multimedia Playback: The USB port also supports playback of various multimedia files (audio, video, images) from a connected USB storage device. Navigate to the multimedia section in the main menu to access this feature.
- Kudzora Kwevabereki: Set up parental control features through the menu to restrict access to certain channels or programs based on age ratings.
- Favorite Lists: Create customized lists of your favorite channels for quick access.
6. Kuchengeta
- Kuchenesa: Shandisa jira rakapfava, rakaoma kuchenesa kunze kwechinhu chinogadzikwa. Usashandise zvinhu zvinochenesa mvura kana zvinhu zvinokwesha.
- Kufefetedza Ensure the receiver is placed in a well-ventilated area to prevent overheating. Do not block the ventilation holes.
- Zvigadziriso zveSoftware: Periodically check for software updates via USB to ensure optimal performance and access to new features. Refer to the main menu settings for update options.
7. Kugadzirisa matambudziko
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Hapana mufananidzo kana ruzha | Incorrect TV input selected, loose cable connections, power issue. |
|
| Hapana chiteshi chawanikwa | Antenna not connected or positioned correctly, no channel scan performed. |
|
| Remote control haisi kushanda | Dead batteries, obstructed signal, remote not paired (if applicable). |
|
| Hunhu hwemifananidzo husina kunaka | Weak antenna signal, incorrect resolution settings. |
|
8. Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Model | ORT8915-UHD |
| Brand | Optex |
| Product Type | 4K DVB-T2 Terrestrial Receiver |
| Vhidhiyo Encoding | HEVC |
| Inowirirana Devices | Television, Game Console, Tablet, Personal Computer, Amplifier, Speaker, Smartphone |
| Kubatana Technology | USB |
| Audio Output Mode | Stereo |
| Audio Output Type | HDMI, Optical |
| Kutenderedza Inzwi Channel Configuration | 5.1, 7.1, 9.2 |
| Special Feature | Inofamba Detector |
| Total HDMI Ports | 1 |
| Kushandiswa kweSimba (Yakamira) | <0.5 W |
| Zviyero (Kureba x Upamhi) | 126.0 mm x 125.0 mm |
| Product Weight | 470 g |
9. Warranty uye Tsigiro
For warranty information and technical support, please refer to the official Optex website or contact your local retailer. Keep your purchase receipt as proof of purchase for any warranty claims.
Software updates are guaranteed until an unknown date, as per product information. For the latest information, please visit the manufacturer's support page.
