1. Nhanganyaya
Ndatenda nekutengaasing the TTArtisan 27mm F2.8 XF-Mount Auto Focus APS-C STM Lens. This compact and versatile lens is designed for Fujifilm X-Mount mirrorless cameras, offering a 27mm focal length (approximately 40.5mm equivalent in full-frame) and a bright F2.8 aperture. It features an STM stepping motor for smooth and quiet autofocus, making it suitable for various photography and videography applications.
Inoenderana Kamera: X-A1, X-A10, X-A2, X-A3, X-A5, X-A7, X-M1, X-H1, X-H2, X-T1, X-T10, X-T2, X-T20, X-T30, X-T3, X-T4, X-T5, X-T100, X-T200, X-PR01, X-PR02, X-PR03, X-E1, X-E2, X-E2S, X-E3, X-E4, XS10.

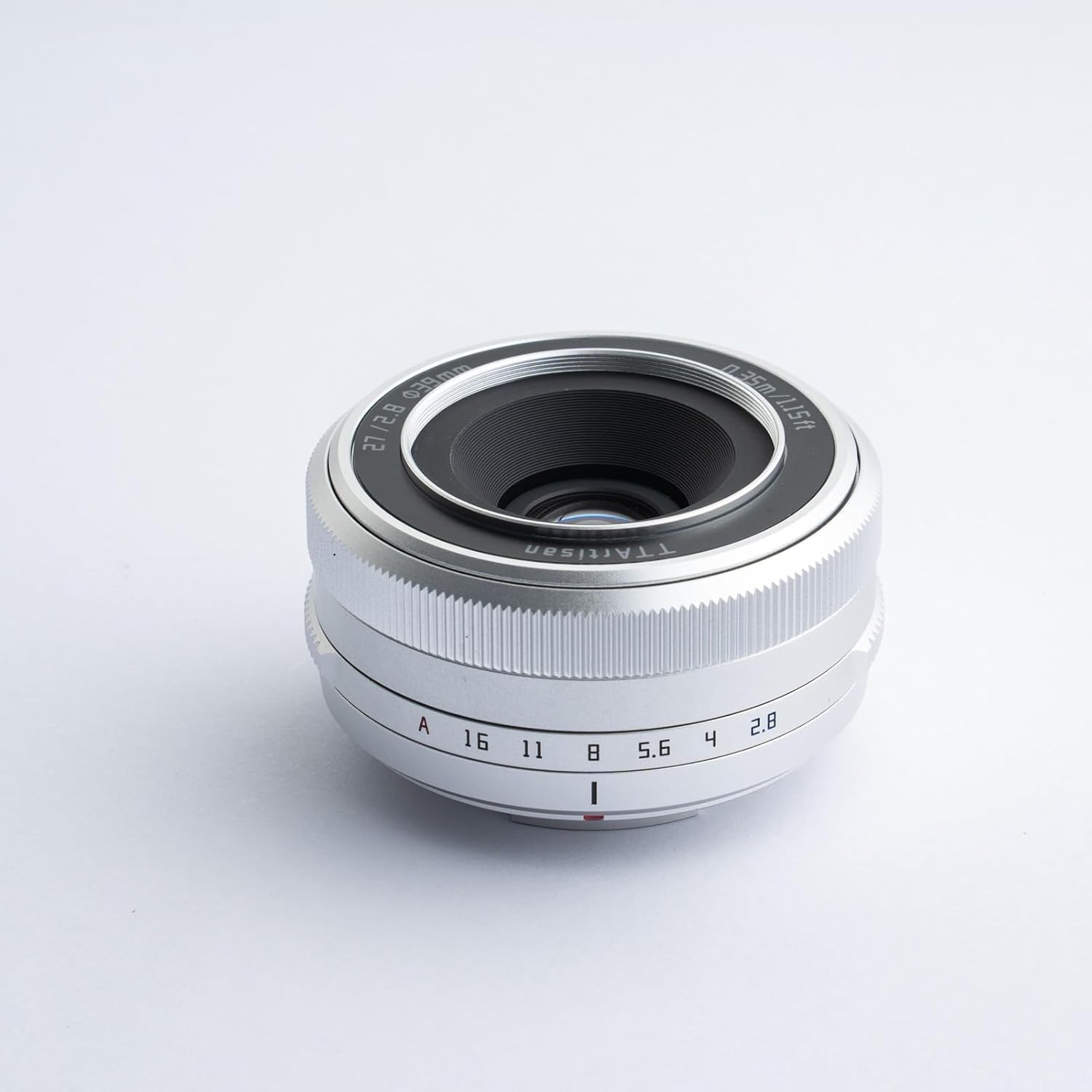

Mufananidzo 1.1: Mberi view of the TTArtisan 27mm F2.8 XF-Mount lens.
2. Setup uye Kuiswa
2.1 Unpacking the Lens
Carefully remove the lens and its accessories from the packaging. Ensure all components listed in the specifications are present.
Figure 2.1: The TTArtisan 27mm F2.8 lens with its standard accessories, including front and rear caps, lens hood, filter, pouch, and cleaning cloth.
2.2 Kubatanidza Lenzi kuKamera Yako
- Ita shuwa kuti kamera yako yakadzimwa.
- Remove the rear lens cap from the TTArtisan 27mm F2.8 lens and the body cap from your Fujifilm X-Mount camera.
- Gadzirisa doti dzvuku riri pabhare relenzi nedoti dzvuku riri pachigadziko chelenzi chekamera yako.
- Isa lenzi zvinyoro nyoro muchibatiso chekamera woitenderedza newachi kusvika yadzvanya panzvimbo yayo. Usamanikidza lenzi.
- Remove the front lens cap. Your lens is now ready for use.
Figure 2.2: The TTArtisan 27mm F2.8 lens properly mounted on a Fujifilm X-M1 camera body.
Figure 2.3: Demonstrating the compact size of the lens when attached to a camera.
3. Kushandisa Lenzi
3.1 Autofocus System (STM Stepping Motor)
The TTArtisan AF 27mm F2.8 lens incorporates an STM (Stepping Motor) with a leading screw design. This motor provides fast, smooth, and quiet autofocus performance, which is beneficial for both still photography and video recording. The compact size of the motor contributes to the overall small form factor of the lens.

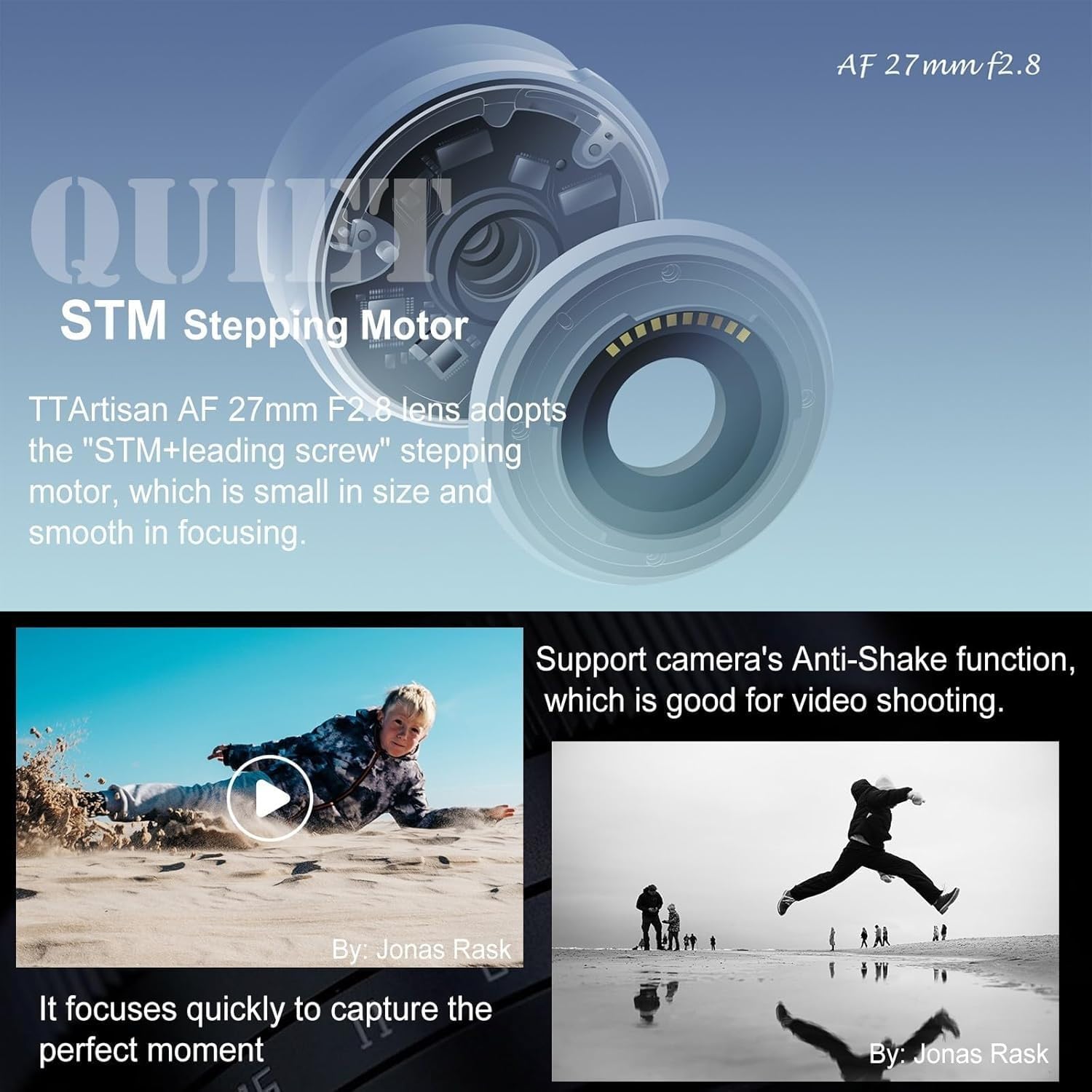

Mufananidzo 3.1: Yemukati view illustrating the STM stepping motor mechanism.
3.2 Eye Detection Autofocus
This lens supports eye-detection autofocus when used with compatible Fujifilm cameras. This feature allows the camera to automatically detect and track the subject's eyes, ensuring sharp focus on portraits and moving subjects. This functionality enhances both photo and video capture.
Figure 3.2: A visual representation of the eye-detection autofocus feature in action.
3.3 Click Aperture Ring
The lens features an independent aperture ring with distinct click stops. This design allows for tactile and precise aperture adjustments directly on the lens, providing a more intuitive and faster shooting experience compared to adjusting aperture through the camera body's controls.
Figure 3.3: Detail of the lens's aperture ring with click stops.
3.4 Close-up Shooting
The lens offers a minimum focusing distance of 0.35 meters (1.15 feet), enabling close-up photography to capture fine details. The wide F2.8 aperture also contributes to pleasing background blur (bokeh) in close-up shots.
Mufananidzo 3.4: Kuratidzwa kwemufananidzoasing the shallow depth of field and bokeh achievable with the F2.8 aperture.
4. Kuchengeta uye Kuchengeta
4.1 Kuchenesa Lenzi
- Shandisa jira rakapfava, risina lint kana bhurasho re lens kuti ubvise huruva kubva panzvimbo yelens.
- Kune smudges kana zvigunwe zvemunwe, shandisa chidimbu chidiki chekuchenesa lens mhinduro kumucheka wemicrofiber uye zvinyoro pukuta lens mukufamba kwedenderedzwa.
- Dzivisa kubata zvinhu zvegirazi zvakananga neminwe yako.
4.2 Kuchengeta
- Gara uchibatanidza zvivharo zvelenzi yekumberi neyekumashure kana lenzi isiri kushandiswa.
- Chengetedza lens munzvimbo inotonhorera, yakaoma, kure nechiedza chezuva uye tembiricha yakanyanyisa.
- Kana uchichengeta kwenguva yakareba, funga nezvekushandisa desiccant kudzivirira chakuvhuvhu nekuora.
4.3 Firmware Ndiwedzere
The lens features a USB-C interface on its rear lens cap for firmware upgrades. This allows for improved performance and compatibility updates. Refer to the official TTArtisan website for the latest firmware and detailed upgrade instructions.
Figure 4.1: The USB-C port located on the rear lens cap for firmware updates.
5. Kugadzirisa matambudziko
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Lenzi haionekwe nekamera | Lens not properly mounted; dirty electrical contacts. | Re-mount the lens, ensuring it clicks into place. Clean the lens and camera electrical contacts with a clean, dry cloth. |
| Autofocus is slow or hunts | Low light conditions; low contrast subject; outdated firmware. | Ensure adequate lighting. Focus on a high-contrast area. Update lens firmware via the USB-C port. |
| Vignetting (dark corners) in images | Common at wide apertures (e.g., F2.8); lens hood misalignment. | This is often a characteristic of wide-aperture lenses and can be corrected in post-processing. Ensure lens hood is correctly attached. |
| Aperture ring not responding | Camera settings overriding lens control. | Check your camera's settings to ensure it is set to allow aperture control via the lens. |
6. Zvinotsanangurwa
- Focal Length: 27mm
- Maximum Aperture: F2.8
- Minimum Aperture: F16
- Sefa Saizi: 39mm
- Rudzi rweframe: APS-C
- Pedyo Nekutarisisa Distance: 0.35m (1.15ft)
- Diaphragm Blades: 7
- Optical Design: Zvinhu zvishanu mumapoka matatu
- Focus Method: AF (Autofocus)
- Angle ye View: 56°
- Dimensions: 61 x 29 mm
- Kurema 93g (approximately 3.3 ounces)
- Zvinosanganisira: Lens, front lens cap, rear lens cap, lens hood, lens filter, user manual, pouch case, clean cloth.
7. Ruzivo rweWaranti
TTArtisan products are covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region. Please retain your proof of purchase for warranty claims. For detailed warranty information, please visit the official TTArtisan websaiti kana kubata muparidzi wenzvimbo yako.
8. Mutengi Tsigiro
If you encounter any issues or have questions regarding your TTArtisan 27mm F2.8 lens, please refer to the troubleshooting section of this manual. For further assistance, you can contact TTArtisan customer support through their official websaiti kana mutengesi kwawakatenga chigadzirwa.
Official Websaiti: www.tartisan.com
