Nhanganyaya
Thank you for choosing the LEDVANCE Osram 10W LED Bulkhead Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
Safety Information
WARNING: Risk of electric shock. Installation must be performed by a qualified electrician in accordance with all local and national electrical codes.
- Ensure power is disconnected at the circuit breaker before installation, maintenance, or cleaning.
- Usaedza kugadzirisa jira racho. Chero shanduko dzingakanganisa garandi uye dzikonzere njodzi dzekuchengetedza.
- This fixture is designed for 220-240V, 50Hz electrical systems.
- Usatarise zvakananga muchiedza che LED kana chavhenekerwa.
- Ramba uchirongedza zvinhu zviri kure nevana.
Package Zviri mukati
Verify that all components are present before beginning installation. This product is typically sold as a pack of 4 units.
- LEDVANCE Osram 10W LED Bulkhead Light (quantity as per purchase, e.g., 4 units)
- Translucent Lens (pre-installed on each unit)
- Kukwirisa Hardware (screws, wall plugs)
- Bhuku reMirayiridzo

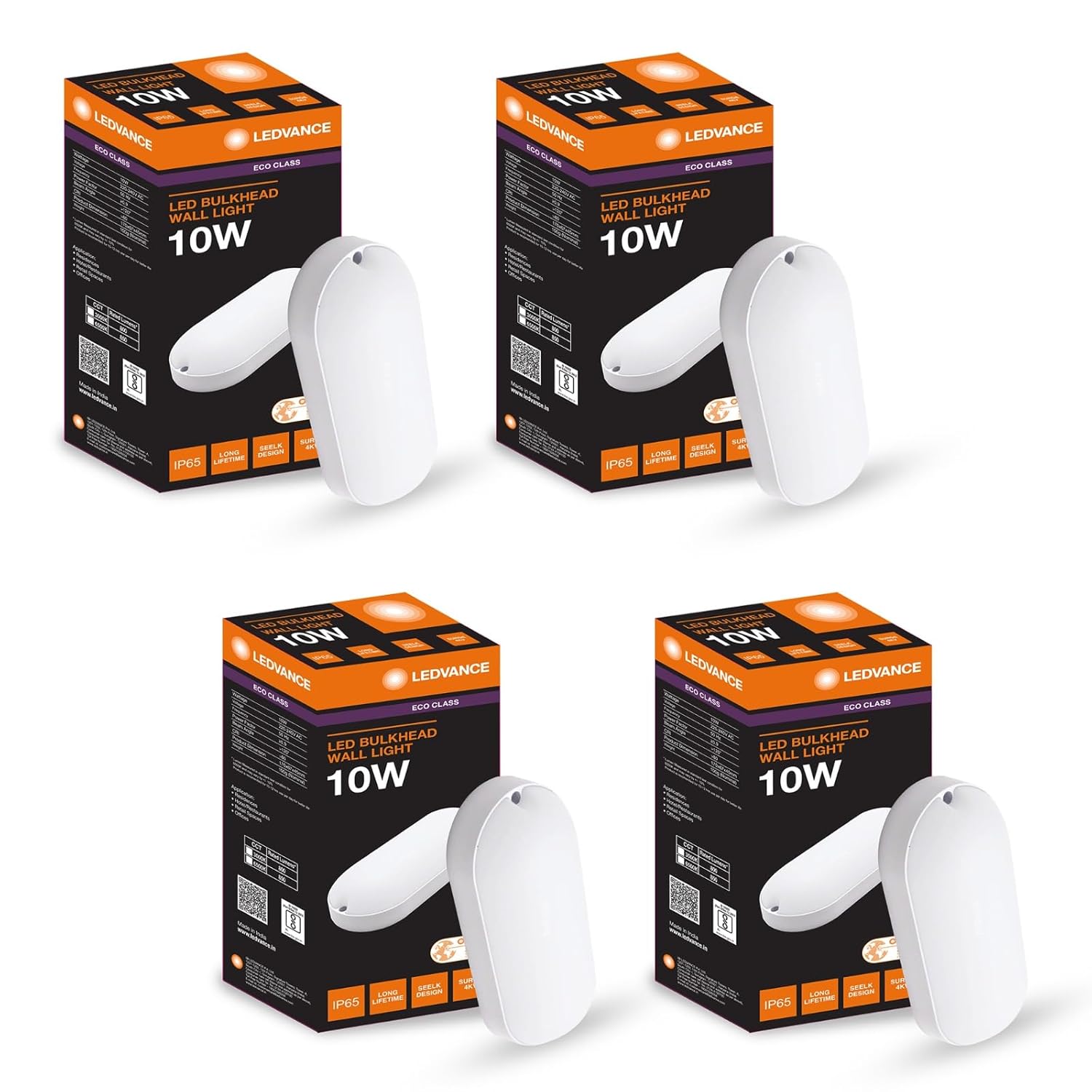

Image: The LEDVANCE Osram 10W LED Bulkhead Light, showcasing its sleek oval design and cool white light output.
Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Brand | LEDVANCE |
| Model Number | LED BULKHEAD 10W/6500K |
| Chiedza Type | Yakabatanidzwa LED |
| Wattage | 10 Watts |
| Chiedza Rudzi | Cool White |
| Rudzi Tembiricha | 6500 Kelvin |
| Luminous Efficacy | 85 lm/W |
| Simba Factor | >0.90 |
| Voltage Frequency | 220-240 Volts, 50 Hertz |
| Indoor / Outdoor Kushandiswa | Outdoor (also suitable for indoor common areas) |
| IP Rating | IP65 (Dust tight uye yakachengetedzwa kubva kujeti dzemvura) |
| Material | Polycarbonate (PC) |
| Zviyero (W x H) | Approx. 67mm x 170mm |
| Item Weight | 0.2 Kilograms (per unit) |
| Inosanganisirwa Zvikamu | Translucent Lens |
Image: Dimensions of the LEDVANCE Osram Bulkhead Light, approximately 67mm wide and 170mm high.
Mufananidzo: Pedyo-up view of the bulkhead light, highlighting its durable polycarbonate material and construction.
Installation
Tevedza aya matanho ekumisikidza kwakachengeteka uye kwakaringana:
- Chengetedzo Kutanga: Before starting, ensure the main power supply to the installation area is switched off at the circuit breaker.
- Sarudza Nzvimbo: Select a suitable mounting location on a wall or ceiling. Ensure it is a flat, stable surface capable of supporting the fixture's weight. This light is suitable for both indoor common areas and outdoor use due to its IP65 rating.
- Mako Drilling Points: Carefully remove the translucent lens or cover to access the mounting holes. Use the fixture as a template to mark the drilling points on the wall/ceiling.
- Drill Holes: Boora maburi panzvimbo dzakanyorwa uchishandisa chibooreso chakakodzera chemidziyo yako yemadziro. Isa mapulagi emadziro kana zvichidikanwa.
- Wiring: Connect the electrical wires from the power supply to the terminal block inside the fixture. Ensure correct polarity (Live, Neutral, Earth) according to local wiring regulations. Secure all connections firmly.
- Mount Fixture: Align the fixture with the drilled holes and secure it to the wall/ceiling using the provided screws. Do not overtighten.
- Reattach Lens: Carefully reattach the translucent lens or cover, ensuring it is securely fastened to maintain the IP65 rating.
- Dzosera Simba: Kana kuiswa kwapera uye zvese zvinongedzo zvakachengeteka, dzosera simba pane redunhu breaker.
Mufananidzo: Eksample of the LEDVANCE Bulkhead Light installed on an outdoor wall, demonstrating its suitability for various environments.
Operation
The LEDVANCE Osram 10W LED Bulkhead Light operates by a standard wall switch connected to its power supply. Once installed and power is restored, simply use the connected switch to turn the light ON or OFF.
- Light Output: Provides a crisp Cool White light at 6500 Kelvin.
- Kushanda Kwesimba: Designed for high energy savings compared to traditional lighting, with a luminous efficacy of 85 lm/W.
Maintenance
The LEDVANCE Osram 10W LED Bulkhead Light is designed for low maintenance and long-lasting performance. Follow these guidelines for optimal care:
- Kuchenesa: Disconnect power before cleaning. Wipe the fixture with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or the translucent lens.
- Kuongorora: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and contact a qualified electrician or customer support.
- MaODs: The integrated LED light source is not user-replaceable. If the LEDs fail, the entire fixture should be replaced.
Kugadzirisa matambudziko
If you experience issues with your LEDVANCE Osram Bulkhead Light, refer to the following common problems and solutions:
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Chiedza hachibatiki. | Hapana magetsi. Loose wiring connection. Faulty switch. | Tarisa wedunhu breaker uye madziro switch. Ensure all wiring connections are secure (power off first). Test the switch with another appliance or replace if faulty. |
| Chiedza chinopenya kana kudzima. | Simba remagetsi risina kugadzikana. Loose wiring. Incompatible dimmer switch (this fixture is not dimmable). | Verify stable power supply. Tarisa kubatana kwewaya (tanga wadzima). Ensure no dimmer switch is used; this fixture requires a standard ON/OFF switch. |
| Water ingress or condensation inside fixture. | Improper installation of lens/cover. Yakakuvadzwa chisimbiso. | Ensure the translucent lens is securely fastened and the seal is properly seated during installation. If the seal is damaged, contact customer support for advice. |
If the problem persists after attempting these solutions, please contact LEDVANCE customer support.
Warranty uye Support
For warranty information or technical assistance, please contact LEDVANCE customer support using the details below:
- Rutsigiro rwerunhare: 1800 102 6258
- Email: customercare@ledvance.com
- Websaiti: www.ledvance.com
- Maawa Ekutsigira Mutengi: Monday - Saturday, 10:00 AM - 6:00 PM (IST)
Image: LEDVANCE customer support contact details and operating hours for assistance.
