MechMaxx FM180 72'' Working Width Finish Mower Attachment Instruction Manual

1. Nhanganyaya

This manual provides essential information for the safe and efficient operation and maintenance of your MechMaxx FM180 72'' Working Width Finish Mower Attachment. Please read this manual thoroughly before assembly, installation, operation, or maintenance to ensure proper use and to prevent injury or damage. Keep this manual for future reference.

2. Safety Information

YAMBIRO: Kukundikana kutevedzera mirairo iyi yekuchengetedza kunogona kukonzera kukuvara kwakanyanya kana rufu.

• Always read and understand the entire instruction manual before operating the mower.
• Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy footwear.
• Keep all bystanders, especially children and pets, at a safe distance from the operating area.
• Ensure the mower is securely attached to the tractor's 3-point hitch and PTO shaft before operation.
• Never operate the mower with guards removed or damaged.
• Disengage the PTO, shut off the tractor engine, and remove the key before performing any adjustments, maintenance, or clearing blockages.
• Be aware of rotating blades and other moving parts. Keep hands and feet clear.
• Operate on slopes with extreme caution to prevent rollovers.
• Before first use, ensure the gearbox is filled with the specified oil type and quantity.

Mufananidzo 2.1: Warning to add gearbox oil before initial operation. Ensure 1.20L (1.27 quart) of 85W-90 Gearbox Oil is added to the oil filler hole.

3. Chigadzirwa Pamusoroview

The MechMaxx FM180 is a robust 72-inch working width finish mower attachment designed for efficient and precise grass maintenance. It is compatible with Category 1 tractors and loaders with 3-point hitches, requiring 18-50 HP for optimal performance.

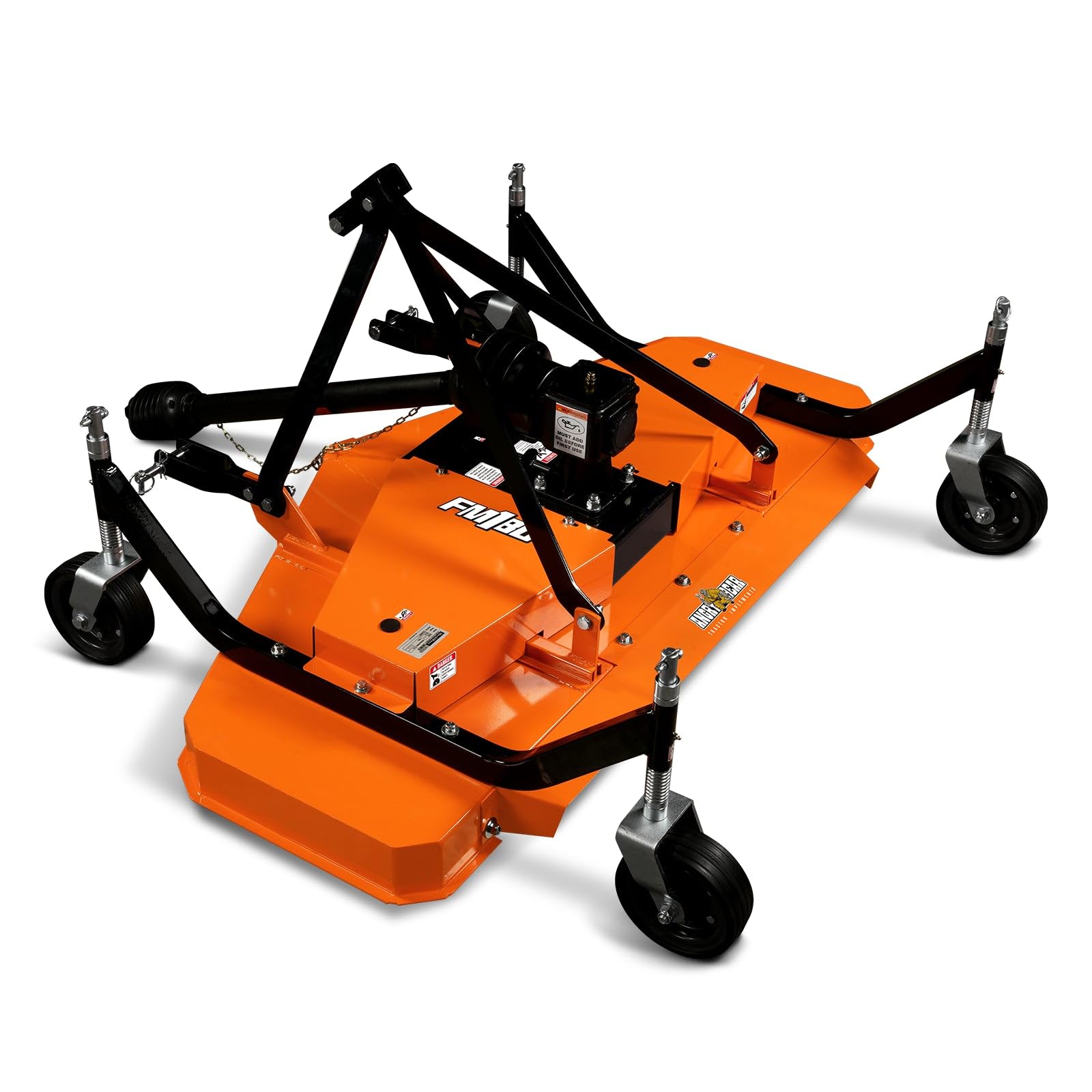

Mufananidzo 3.1: The MechMaxx FM180 72'' Working Width Finish Mower Attachment.

Zvinokosha:

• Simba rinodiwa: Designed for 18-50 HP tractors with PTO driveshaft.
• Kuita Upamhi: 72 inches, capable of cutting material up to 0.75 inches in diameter.
• Adjustable Cutting Height: Wheel brackets allow height adjustment from 0.4" to 4.5".
• Blades: Equipped with 3 high-grade steel, heat-treated 60Si2Mn blades for effective cutting.
• Floating Hitch: Ensures blades contour to uneven surfaces, maintaining an even cut.
• Kubuda Kwemashure: Wide rear discharge design minimizes grass buildup and eliminates the need for additional cleanup.
• Gearbox: Features a high-quality, low-noise cast iron gearbox for reliable power transmission.

Mufananidzo 3.2: The FM180 requires a tractor with 18-50 horsepower for operation.

Mufananidzo 3.3: Four solid tires support the mower, with adjustable wheel brackets for setting cutting height from 0.4 to 4.5 inches.

Mufananidzo 3.4: The mower is equipped with three durable 60Si2Mn blades.

Mufananidzo 3.5: The wide rear discharge design helps prevent grass buildup.

4. Zvinotsanangurwa

5. Setup

5.1 Initial Gearbox Oil Fill

Before operating the mower for the first time, it is critical to fill the gearbox with the specified oil. Failure to do so will result in severe damage to the gearbox and void the warranty.

1. Locate the oil filler hole on the gearbox (refer to Figure 2.1).
2. Bvisa chivharo chekuzadza.
3. Carefully add 1.20 liters (1.27 quarts) of 85W-90 gearbox oil.
4. Dzorera chivharo chekuzadza zvakachengeteka.

5.2 Kubatanidza kuTractor

The FM180 mower is designed for easy attachment to Category 1 tractors with a 3-point hitch system.

1. Position the tractor in front of the mower, aligning the 3-point hitch arms with the mower's attachment points.
2. Connect the lower lift arms of the tractor to the mower's lower pins, securing them with appropriate pins.
3. Connect the top link of the tractor to the mower's upper attachment point, securing it with a pin.
4. Connect the PTO driveshaft from the tractor to the mower's gearbox input shaft. Ensure the quick coupler PTO with shear pin is properly engaged and secured.
5. Verify all connections are secure and that the PTO shaft has sufficient clearance throughout the tractor's lift range.

Mufananidzo 5.1: Proper connection of the PTO shaft to the mower.

Mufananidzo 5.2: The mower features a Category 1, 3-point hitch for tractor attachment.

6. Operating Instructions

6.1 Pre-Operation Checks

• Iva nechokwadi chekuti varindi vese vekuchengetedza vari munzvimbo uye vakachengeteka.
• Check gearbox oil level.
• Inspect blades for sharpness and damage. Replace or sharpen as needed.
• Clear the mowing area of any debris, rocks, or obstacles that could be thrown by the blades.

6.2 Kugadzirisa Kucheka Hurefu

The cutting height can be adjusted from 0.4 inches to 4.5 inches using the adjustable wheel brackets.

1. Park the tractor and mower on a level surface, disengage the PTO, shut off the engine, and remove the key.
2. Adjust the pins on each wheel bracket to raise or lower the mower deck to the desired cutting height. Ensure all four wheels are set to the same height for an even cut.
3. Secure the pins firmly in place.

6.3 Mowing Procedure

1. Start the tractor and slowly engage the PTO.
2. Lower the mower to the desired cutting height.
3. Begin mowing at a slow, steady pace. Avoid sudden turns or excessive speed, especially on uneven terrain.
4. Overlap each pass slightly to ensure complete coverage.
5. When finished, raise the mower, disengage the PTO, shut off the tractor engine, and remove the key.

7. Kuchengeta

Regular maintenance is crucial for the longevity and optimal performance of your MechMaxx FM180 mower.

• Mushure meKushandisa Kwese:
  • Clean the mower deck to remove grass clippings and debris.
  • Inspect blades for damage, wear, or looseness. Tighten or replace as necessary.
  • Tarisa mabhaudhi ese uye nzungu kuti asimbise.
• Every 10 Hours of Operation:
  • Check gearbox oil level and top up if needed.
  • Lubricate all grease points on the mower and PTO shaft.
• Annually or Every 50 Hours of Operation:
  • Drain and replace gearbox oil.
  • Inspect PTO shaft for wear or damage.
  • Check the condition of the drive belts.

8. Kugadzirisa matambudziko

9. Warranty uye Tsigiro

MechMaxx offers a 30-day easy return policy for this product. For any questions, technical assistance, or warranty claims, please contact MechMaxx customer support. Refer to your purchase documentation for specific contact details or visit the official MechMaxx website.
