1. Nhanganyaya
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Momento M8 MAX Dash Camera Kit (MD-8400). The M8 MAX is a 3-channel 4K UHD dash camera system featuring dual 5.0GHz Wi-Fi, GPS, and a Sony IMX image sensor, designed to capture high-quality video footage of your journeys and provide 24/7 vehicle protection.
Please read this manual thoroughly before using the product to ensure proper functionality and to maximize your user experience.
Image 1.1: Momento M8 MAX Dash Camera Kit, showing the main front camera unit, rear camera, and product packaging.
2. Chii Chinosanganisirwa
Tarisa kuti zvese zvirimo zviripo mupakeji:
- M8 Front 4K Dash Camera with Built-in Dual 5.0GHz Wi-Fi + GPS
- FHD Rear Camera with Installation Cable
- Hardwire Installation Harness
- 64GB Micro SD Card with SD Card Adapter
- Gomo
- 2-Yegore Warranty Information

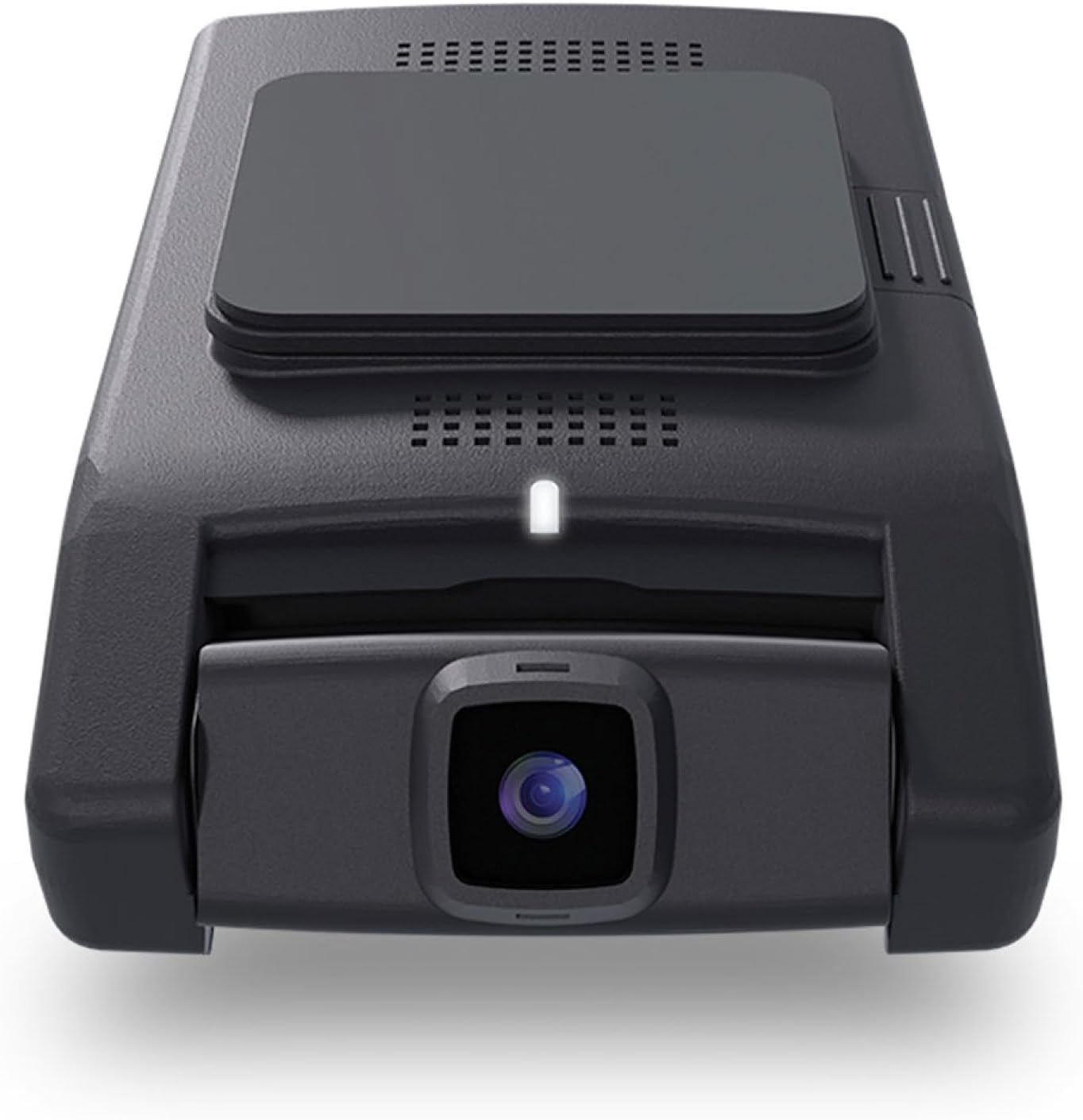

Mufananidzo 2.1: Mberi view of the Momento M8 MAX dash camera, highlighting the lens and compact design.
3. Key Features
- 4K UHD (2160p) Image Resolution: Records sharp, detailed footage for clear evidence.
- Front and Rear Cameras: Provides comprehensive coverage of your vehicle's surroundings.
- 30 Frames per Second: Ensures smooth video capture.
- Sony IMX Image Sensor: Enhances image quality, especially in low-light conditions.
- 64GB Micro-SD Card Included: Ample storage for recorded footage. Supports up to 256GB.
- ECO Parking Mode Battery Saving Technology: Activates automatically when motion or impact is detected while parked, conserving battery.
- Voice Control: Allows hands-free operation of certain functions.
- Dual 5.0GHz Wi-Fi Smartphone Connectivity: Enables direct download of footage uye urarame viewing via the Momento App.
- Yakavakwa-mukati GPS: Records location and speed data with video footage.
4. Setup uye Kuiswa
4.1 Preparing the MicroSD Card
Before first use, insert the included 64GB MicroSD card into the designated slot on the main dash camera unit. Ensure the card is inserted correctly until it clicks into place. It is recommended to format the MicroSD card periodically through the Momento App or the dash camera's settings to maintain optimal performance.
Mufananidzo 4.1: Kurutivi view of the Momento M8 MAX dash camera, indicating the MicroSD card slot.
4.2 Kuisa Kamera Yepamberi
- Clean the windshield area where the camera will be mounted. Ensure it is free of dust and grease.
- Attach the mount to the front camera.
- Peel off the protective film from the adhesive pad on the mount.
- Firmly press the mount onto the chosen location on your windshield, ideally behind the rearview mirror to avoid obstructing your view. Hold for at least 30 seconds.
- Gadzirisa kona yekamera kuti ive nechokwadi chekuti yakajeka view yenzira iri mberi.
4.3 Kuisa Rear Kamera
- Determine the optimal mounting location for the rear camera, typically on the rear windshield.
- Route the rear camera's installation cable from the front camera to the rear of the vehicle, tucking it neatly along the headliner and pillar trim.
- Connect the rear camera cable to the main front camera unit.
- Mount the rear camera using its adhesive pad, ensuring a clear view nepahwindo rekumashure.
4.4 Power Connection (Hardwire Installation)
The M8 MAX includes a hardwire installation harness for continuous power and parking mode functionality. Professional installation is recommended for hardwiring.
- Connect the ACC (Accessory) wire of the harness to a fuse that is active only when the ignition is on.
- Connect the BATT (Battery) wire to a constant power fuse (always active).
- Connect the GND (Ground) wire to a metal part of the vehicle chassis.
- Plug the hardwire harness into the main dash camera unit.
4.5 Momento App Connection
- Download the "Momento" app from your smartphone's app store (iOS or Android).
- Turn on your vehicle's ignition to power the dash camera.
- On your smartphone, go to Wi-Fi settings and connect to the dash camera's Wi-Fi network (SSID and password can be found on the camera or in the quick start guide).
- Open the Momento App. The app should automatically detect and connect to the dash camera.
Image 4.2: Momento App interface on a smartphone, displaying live view uye menyu sarudzo.
5. Operating Instructions
5.1 otomatiki Kurekodha
Once powered on, the Momento M8 MAX will automatically begin continuous loop recording. Older files will be overwritten when the MicroSD card is full, unless they are protected (event recordings).
5.2 Event Recording (G-Sensor)
The built-in G-sensor detects sudden impacts or rapid acceleration/deceleration. When an event is detected, the current video segment will be automatically locked and saved to prevent overwriting.
5.3 Parking Mode (ECO Battery Saving Technology)
With the hardwire kit installed, the dash camera will automatically switch to parking mode when the vehicle's ignition is turned off. In ECO Parking Mode, the camera consumes minimal power and activates recording only when motion or impact is detected, providing 24/7 surveillance.
5.4 Kudzora Izwi
The M8 MAX supports voice commands for certain operations. Refer to the quick start guide or Momento App for a list of available voice commands.
5.5 Using the Momento App
The Momento App provides full control and access to your dash camera:
- Rarama View: Stream real-time video from the front and rear cameras to your smartphone.
- Gallery: Browse, play back, and download recorded video footage directly to your phone.
- Settings: Adjust camera settings such as video resolution, G-sensor sensitivity, parking mode options, and Wi-Fi settings.
- Firmware Dzokorora: The app can notify you of and facilitate firmware updates for your dash camera.
Mufananidzo 5.1: Pamusoro view of the Momento M8 MAX dash camera, showing the Wi-Fi and manual recording buttons.
6. Kuchengeta
6.1 Kutarisira Makadhi eMicroSD
Regularly format the MicroSD card (at least once a month) to prevent data corruption and ensure optimal recording performance. This can be done through the Momento App. Replace the MicroSD card if you experience frequent recording errors or data loss.
Image 6.1: The included Momento 64GB MicroSD card.
6.2 Kuchenesa maLens
Shandisa jira rakapfava, risina ruvara kuti upukute zvinyoro nyoro malenzi ekamera. Dzivisa kushandisa zvinochenesa kana zvinonyungudutsa zvinogona kukuvadza kufukidza lenzi.
6.3 Firmware Updates
Check the Momento App periodically for available firmware updates. Keeping your dash camera's firmware up-to-date ensures access to the latest features and performance improvements.
7. Kugadzirisa matambudziko
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Kamera haisi kushanda. | Loose power connection, vehicle power issue. | Check all power cable connections. Ensure vehicle's ignition is on if not hardwired to constant power. Verify fuse connections if hardwired. |
| Kurekodha kunomira kana kuomesa chando. | MicroSD card error, full card, or incompatible card. | Format the MicroSD card via the app. If issues persist, try a new, high-quality MicroSD card (Class 10 or higher, U3 recommended). |
| Wi-Fi nyaya dzekubatanidza. | Incorrect password, too far from camera, app issue. | Ensure you are within close proximity to the camera. Re-enter Wi-Fi password. Restart the camera and the app. |
| Hunhu hwevhidhiyo husina kunaka. | Dirty lens, low light, incorrect resolution setting. | Clean the camera lens. Ensure sufficient lighting. Check video resolution settings in the Momento App (4K for front, 1080p for rear). |
| Hapana chiratidzo cheGPS. | Kuvharirwa view of sky, camera not properly positioned. | Ita shuwa kuti kamera ine yakajeka view of the sky. Avoid mounting near metallic tints or other signal-blocking materials. |
For further assistance, please refer to the Momento App's help section or contact customer support.
8. Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Model Name | Momento M8 MAX MD-8400 |
| Front Camera Resolution | 4K UHD (2160p) @ 30fps |
| Rear Camera Resolution | FHD (1080p) @ 30fps |
| Image Sensor | Sony IMX Sensor |
| Viewing Angle | Up to 270° (Front + Rear) |
| Wi-Fi Kubatana | Dual 5.0GHz Wi-Fi |
| GPS | Yakavakwa-mukati |
| Parking Mode | ECO Battery Saving Technology (Motion/Impact Detection) |
| Voice Control | Ehe |
| Included MicroSD Card | 64GB (Supports up to 256GB) |
| Power Connection | Hardwire Installation Harness |
| Dimensions | 5 x 5 x 3 inches |
| Item Weight | 1.2 makirogiramu |
9. Warranty uye Tsigiro
9.1 Ruzivo rweWaranti
The Momento M8 MAX Dash Camera Kit (MD-8400) comes with an industry-leading 2-Yegore Warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product performs as specified under normal use. Please retain your proof of purchase for warranty claims.
9.2 Mutengi Tsigiro
For technical support, troubleshooting assistance, or warranty inquiries, please contact Idatalink customer service. You can also find helpful resources and FAQs within the Momento App.
Mugadziri: Momento
Brand: Idatalink
For the most up-to-date support contact information, please visit the official Idatalink or Momento website.
