ACEZUK M06 6000A Car Jump Starter with 150PSI Air Compressor User Manual

1. Chigadzirwa Pamusoroview

Key Features

• 6000A Jump Starter: Capable of reliably jump-starting 12V vehicles (all gasoline engines and up to 12.0L diesel engines) in seconds, even in temperatures ranging from -20°C to 60°C. Provides up to 70 jump starts on a single charge. Suitable for automobiles, trucks, motorcycles, boats, lawnmowers, yachts, pickups, and snowmobiles.
• 150PSI Portable Air Compressor: Designed for rapid inflation of all tires from 0 PSI to 150 PSI. Features dual-cylinder technology for a fast inflation rate of 50 LPM (1.76 CFM).
• Digital Pressure Gauge & Automatic Shut-off: Equipped with a real-time LED digital pressure gauge for accurate readings. Allows selection of preset modes (car, bicycle, motorcycle, ball) and automatically stops inflation once the desired PSI is reached.
• Bhengi reMagetsi re21800mAh: Functions as a power bank with Type-C input (5V/3A, 9V/2A) and dual USB outputs (5V/3A) to charge personal devices like cell phones and tablets. Recommended charging the jump starter with a 5V/2A adapter or higher.
• Anoshanda Dhizaini: Features a unique 3.4-inch large LCD screen displaying operational status, battery level, and potential errors. Includes a 600 lumens LED light with 3 modes (constant light, strobe, SOS) for outdoor activities or emergencies. An additional small light is integrated for illuminating the inflation operation area.
• Smart Jump Cables: Provides 8 types of protection, including protection against overheating, overcharge, over-discharge, over-voltage, short-circuit, reverse polarity, and anti-interference.

Package Zviri mukati

• 1 x ACEZUK M06 Jump Starter with Air Compressor
• 1 x Smart Jump Cable
• 1 x Air Pump Hose
• 4 x Gas Nozzles
• 1 x USB-C Yekuchaja Cable
• 1 x Chinyorwa cheMushandisi
• 1 x Portable EVA Carrying Case

2. Safety Information

Ndapota verenga uye unzwisise mirairo yese yekuchengetedza usati washandisa chigadzirwa ichi. Kutadza kutevedzera mirairo iyi kunogona kukonzera kuvhunduka kwemagetsi, moto, uye/kana kukuvara kwakanyanya.

• Do not operate the air pump continuously for extended periods. If the tire compressor becomes hot, allow it to cool down for several minutes before resuming inflation.
• Avoid over-inflating tires, as this can cause damage. If a tire is over-inflated, gently press the tire valve to release excess air.
• Always ensure correct polarity when connecting the jump cables to the vehicle battery terminals. Incorrect connection can cause sparks, damage the device, or harm the user.
• Chengetedza mudziyo nemidziyo yayo kunze kwekusvikirwa nevana.
• Do not attempt to disassemble, modify, or repair the device. This will void the warranty and may lead to hazards.
• Store the device in a cool, dry place, away from direct sunlight, moisture, and flammable materials.
• Use only the provided smart jump cables and accessories with this device.

3. Setup

Kuchaja Chishandiso

Before initial use, fully charge the ACEZUK M06. It is recommended to charge the device every 3-4 months to maintain optimal battery health, especially if not in regular use.

1. Connect the provided USB-C charging cable to the device's Type-C input port.
2. Connect the other end of the USB-C cable to a 5V/2A or higher USB power adapter (not included).
3. The LCD screen will display the charging status and battery level. Charge until the battery indicator shows 100%.

Kutanga Kuongorora

Upon receiving your ACEZUK M06, perform a quick inspection:

• Check the device and all accessories for any visible damage.
• Ensure all components listed in the 'Package Contents' section are present.

4. Operating Instructions

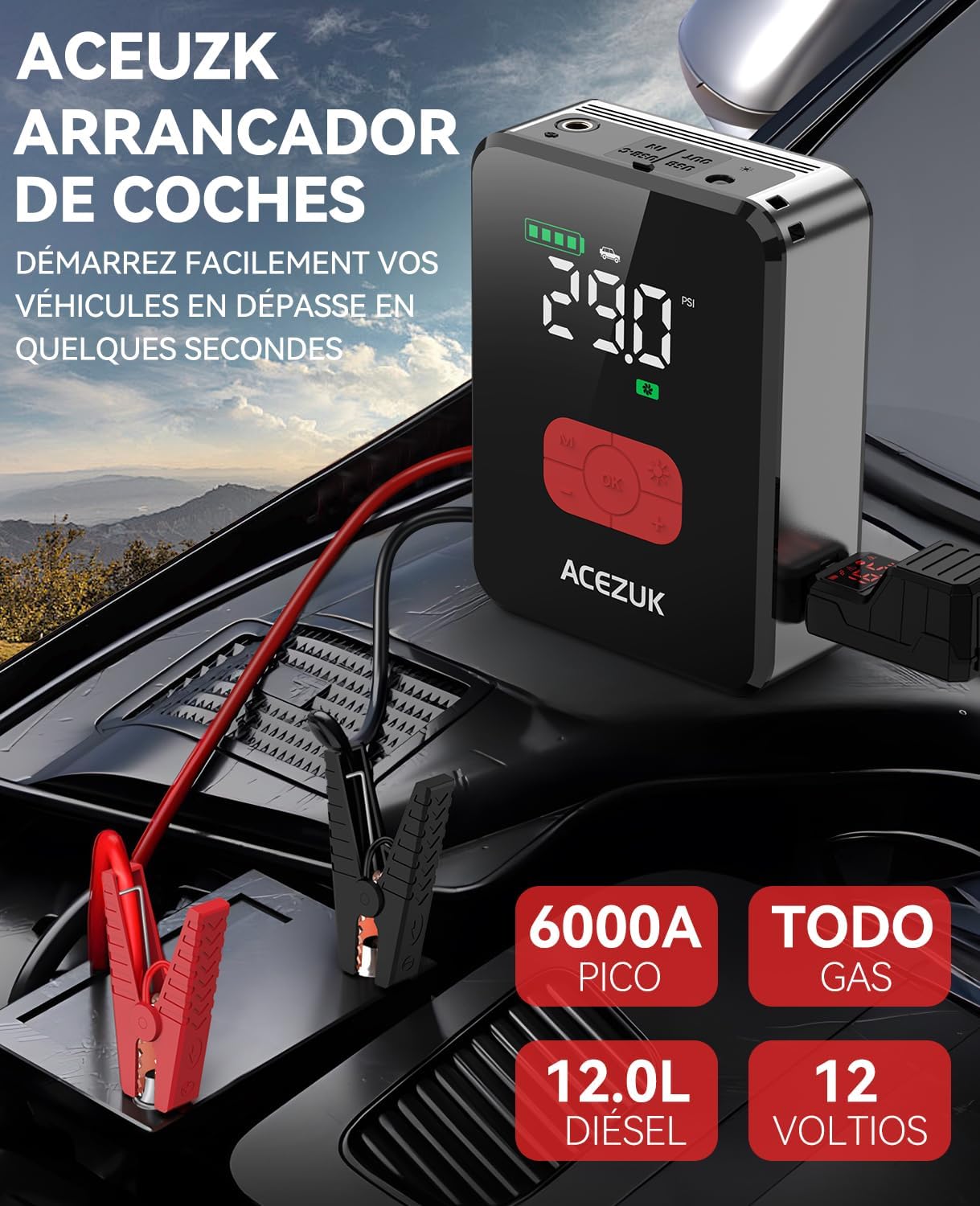

4.1 Svetuka Kutanga Mota

Tevedzera matanho aya kuti utange motokari yako zvakachengeteka:

1. Ita shuwa kuti mota yakadzimwa uye mabhureki ekupaka abatwa.
2. Insert the smart jump cable plug completely into the jump starter's designated port. The red and green lights on the clamp will flash alternately, indicating it's ready.
3. Batanidza tsvuku clamp kune terminal yakanaka (+) yebhatiri remotokari.
4. Batanidza dema clamp kune iyo yakaipa (-) terminal yebhatiri remotokari.
5. If the indicator light on the smart cable flashes red and green alternately, and the vehicle does not start, press and hold the forced start button on the smart cable for 3 seconds until the light turns solid green. This bypasses safety checks for severely discharged batteries.
6. Start the vehicle's engine within 30 seconds of the indicator light turning solid green.
7. Kana mota yangotanga, bvisa cl ipapo ipapoamps from the battery terminals within 30 seconds. First, remove the black clamp, wobva waona cl tsvukuamp.

4.2 Kushandisa Mhepo Compressor

To inflate tires or other inflatables:

1. Dzvanya bhatani re ON/OFF kuti usimbise pane mudziyo.
2. Briefly press the air pump button (usually indicated by a tire icon) to enter inflation mode. The screen will display the current pressure.
3. Press the 'M' (Mode) button to cycle through and select the appropriate inflation mode (e.g., car, bicycle, motorcycle, ball).
4. Use the '+' and '-' buttons to adjust the desired target air pressure. You can also change the unit of measurement (PSI, BAR, KPA) if available.
5. Connect the air pump hose securely to the tire valve or the appropriate gas nozzle for other inflatables.
6. Press and hold the air pump button for 3 seconds to begin inflation.
7. Iyo compressor inomira otomatiki kana preset preset yasvika.
8. Briefly press the air pump button again to exit inflation mode.

4.3 Kushandisa sePower Bank

The ACEZUK M06 can charge your electronic devices:

1. Connect your mobile phone, tablet, or other USB-powered device to one of the dual USB output ports (5V/3A) on the jump starter.
2. Chishandiso chinozotanga kuchaja mudziyo wako wakabatana.

4.4 Kushandisa Chiedza che LED

Chiedza che LED chakabatanidzwa chinopa chiedza mumamiriro akasiyana-siyana:

1. Press the light button (usually indicated by a light bulb icon) to turn on the LED light.
2. Press the button repeatedly to cycle through the 3 modes: constant light, strobe, and SOS signal.
3. An additional small light is located on the bottom of the product to specifically illuminate the area around the tire valve during inflation.

5. Kuchengeta

Proper maintenance ensures the longevity and optimal performance of your ACEZUK M06:

• Kuchengeta: Store the device in its portable EVA carrying case in a cool, dry place, away from direct sunlight, moisture, and extreme temperatures.
• Recharging: If the device is not used regularly, recharge it every 3-4 months to prevent deep discharge and maintain battery health.
• Kuchenesa: Clean the exterior of the device with a soft, dry cloth. Do not use harsh chemicals, solvents, or abrasive cleaners. Ensure all ports are free from dust and debris.
• Cable Care: Inspect the smart jump cables and air pump hose regularly for any signs of wear or damage. Replace if necessary.

6. Kugadzirisa matambudziko

If you encounter issues with your ACEZUK M06, refer to the table below for common problems and their solutions:

7. Zvinotsanangurwa

• Brand: ACEZUK
• Muenzaniso: M06
• Peak Current: 6000 Amperes
• Battery Capacity: 21800 mAh (Lithium Ion)
• Vehicle Service Type: Automotive (All Gas, up to 12.0L Diesel)
• Voltage: 12 Volts
• Kumanikidzwa kweCompressor yemhepo: 0-150 ​​PSI
• Mhepo Yekuyerera Kwemhepo: 50 LPM (1.76 CFM)
• Type-C Input: 5V/3A, 9V/2A
• USB Inobuda: Dual 5V/3A
• Chiedza che LED: 600 Lumens (3 modes: Light/Strobe/SOS)
• Operating Temperature: -20°C kusvika 60°C
• Product Weight: 1.57 kg
• Package Dimensions: 21.1 x 17.3 x 14.4 cm

8. Warranty uye Tsigiro

ACEZUK yakazvipira kupa zvigadzirwa zvemhando yepamusoro uye sevhisi yakanaka kune vatengi.

• Warranty: This product comes with a 2-year FREE warranty from the date of purchase.
• Tsigiro yehunyanzvi: Lifetime technical support is available for all ACEZUK M06 users.
• Mabatiro evatengi: Our customer service team is available 24/7 to assist you with any questions or concerns.

For warranty claims, technical assistance, or general inquiries, please refer to the contact information provided with your purchase or visit the official ACEZUK webnzvimbo yekutsigira zviwanikwa.
