Masterpart Candy 97920557 Dryer Drum Support Wheels Instruction Manual

Nhanganyaya

This instruction manual provides essential information for the proper installation, maintenance, and troubleshooting of your Masterpart Candy 97920557 dryer drum support wheels. These wheels are genuine manufacturer replacement parts designed to ensure the smooth and efficient operation of your tumble dryer. Please read this manual thoroughly before attempting any installation or repair.

Safety Information

• Always disconnect power: Before performing any service or maintenance on your dryer, ensure it is unplugged from the electrical outlet or the circuit breaker is turned off.
• Pfeka giya rekudzivirira: Use appropriate personal protective equipment, such as gloves and safety glasses, to prevent injury.
• Bata nehanya: Dryer components can be heavy or have sharp edges. Exercise caution during removal and installation.
• Professional assistance: If you are unsure about any step or uncomfortable performing the repair, consult a qualified appliance technician.
• Zvikamu zvepakutanga: Use only genuine replacement parts to ensure compatibility and safety.

Inoenderana Models

These drum support wheels (Manufacturer Part Number: 97920557) are compatible with a wide range of Candy dryer models. Please verify your dryer's model number against the list below to ensure compatibility:

• CC217-80, CC217-88, CC217-SY, CC266-S, CC266T-47, CC267-37, CC267-80, CC267T-01S, CC267T-47, CC267T-84, CC267T-88, CC276T-47, CC277T-86S
• CD6720-ISR, CDC165-83SY, CDC168-SY, CDC179X-88, CDC263, CDC263CH, CDC266UK, CDC266X, CDC266XCH, CDC267ESY, CDC268EX, CDC268TEX, CDC268TEXCH, CDC668-37, CDC668-47, CDC668-SY, CDC679X-SY, CDC679XT-88, CDC768-47, CDC779X-86SY, CDC779XT-88, CDC779XT-SY
• CDE105-80, CDE107-80, CDV160-SY, CDV262, CDV262-04ARG, CDV262ES, CDV262UK, CDV265E, CDV265EX, CDV660-37, CDV660-47, CDV660-SY, CDV671XSY
• CIC200UK, CIC200X, CIC200XES, CIC209TX, CIC209X, CIC209XCH, CIC250EXEU, CIC258E, CIC259EX, CIC259TEX, CIC259TEXCH, CIC60
• CIV100ARG, CIV100EU, CIV100UK, CIV100ES, CIV100OS, CIV109, CIV109OS, CIV130XEU, CIV139X, CIV139XC, CIV140EXES, CIV140EXEU, CIV145E, CIV149EX, CIV14M, CIV60, CIVD14EX
• CV116-80, CV116-SY, CV117-04S, CV117-OS, CV166-37, CV166-37/0, CV166-47, CV166-47/0, CV166-S, CV167-47
• GODC778-37, GODC78-01S, GODC78-88, KT6EMAX, ZW2V

Installation Instructions

Replacing dryer drum support wheels typically involves disassembling the dryer cabinet to access the drum and its support components. The following steps provide a general guide. Specific disassembly procedures may vary by dryer model. Always refer to your dryer's service manual for detailed instructions.

Zvishandiso Zvinodiwa:

• Screwdrivers (Phillips uye flathead)
• Nut drivers or socket set
• Pliers
• Basa magirovhosi
• Magirazi ekuchengetedza

Step-by-Step Replacement:

1. Bvisa Simba: Unplug the dryer from the wall outlet or turn off the circuit breaker.
2. Access the Dryer Interior: Depending on your model, this may involve removing the top panel, front panel, or rear panel. Carefully follow your dryer's specific disassembly instructions.
3. Remove the Drum: Once the interior is accessible, you will need to disconnect the drive belt and lift the drum out of the cabinet. This often requires two people due to the drum's size and weight.
4. Locate Old Support Wheels: The drum support wheels are typically located at the front or rear of the dryer cabinet, supporting the drum. Inspect them for wear, cracks, or damage.
5. Bvisa Mavhiri Ekare: Each wheel is usually held in place by a shaft and a retaining clip or screw. Carefully remove the fasteners and slide off the old, worn wheels.
6. Install New Wheels: Place the new Masterpart 97920557 drum support wheels onto the shafts. Ensure they are seated correctly and secure them with the retaining clips or screws. Make sure they spin freely.

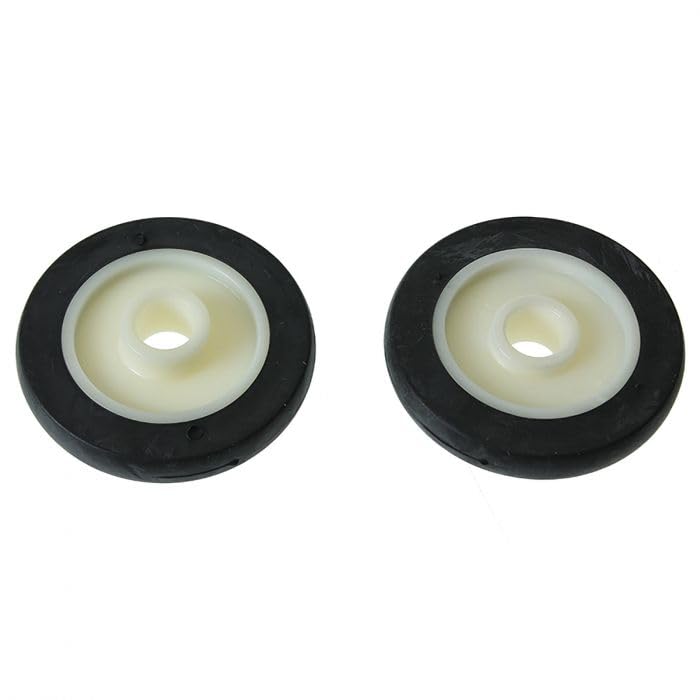

Image 1: A pair of Masterpart Candy 97920557 dryer drum support wheels. These wheels feature a durable black rubber exterior and a white plastic inner hub, designed for smooth drum rotation.

7. Reinstall the Drum: Carefully place the drum back into the dryer cabinet, ensuring it rests properly on the new support wheels. Reattach the drive belt.
8. Kuunganidzazve Muchina wekuomesa: Reattach all panels and secure them with their original fasteners.
9. Test Operation: Plug the dryer back in or restore power. Run a short cycle to ensure the drum rotates smoothly and quietly. Listen for any unusual noises.

Operation Kufunga

While these wheels are replacement parts, proper dryer operation contributes to their longevity and the overall efficiency of your appliance.

• Dzivisa kuwandisa: Overloading the dryer can put excessive strain on the drum support wheels and other components, leading to premature wear.
• Balance Loads: Ensure laundry loads are balanced to prevent uneven stress on the drum and its supports.
• Chenesa Lint Sefa: Regularly clean the lint filter to maintain proper airflow and prevent the dryer from overheating, which can affect component lifespan.

Maintenance

Regular inspection of your dryer's internal components can help identify potential issues before they become major problems.

• Periodic Inspection: Every few years, or if you notice unusual noises, consider opening your dryer to inspect the drum support wheels. Look for signs of wear, flat spots, cracks, or excessive play.
• Chenesa Marara: Remove any lint or debris that may have accumulated around the wheel shafts or housing, as this can impede smooth rotation.
• Lubrication (kana zvichibvira): Some older models might benefit from a small amount of high-temperature grease on the wheel shafts, but most modern wheels are designed to be self-lubricating or require no additional lubrication. Consult your dryer's specific manual.

Troubleshooting Common Issues

Zvigadzirwa Zvinotsanangurwa

Support

For further assistance, technical support, or warranty inquiries regarding your Masterpart product, please contact the manufacturer directly through their official website or customer service channels. Always provide your product model number (97920557) when seeking support.
