1. Nhanganyaya
The Xvive U35D Wireless Microphone System provides a high-fidelity, low-latency solution for converting dynamic microphones and line-level audio sources into a wireless setup. Operating on the 5.8 GHz band, this system offers a stable and clear signal, minimizing interference from crowded 2.4 GHz frequencies. It is designed for ease of use, allowing musicians, DJs, and audio professionals to achieve wireless freedom without compromising audio quality.
Figure 1: The Xvive U35D Wireless Microphone System, featuring two transmitters and two receivers for versatile audio applications.

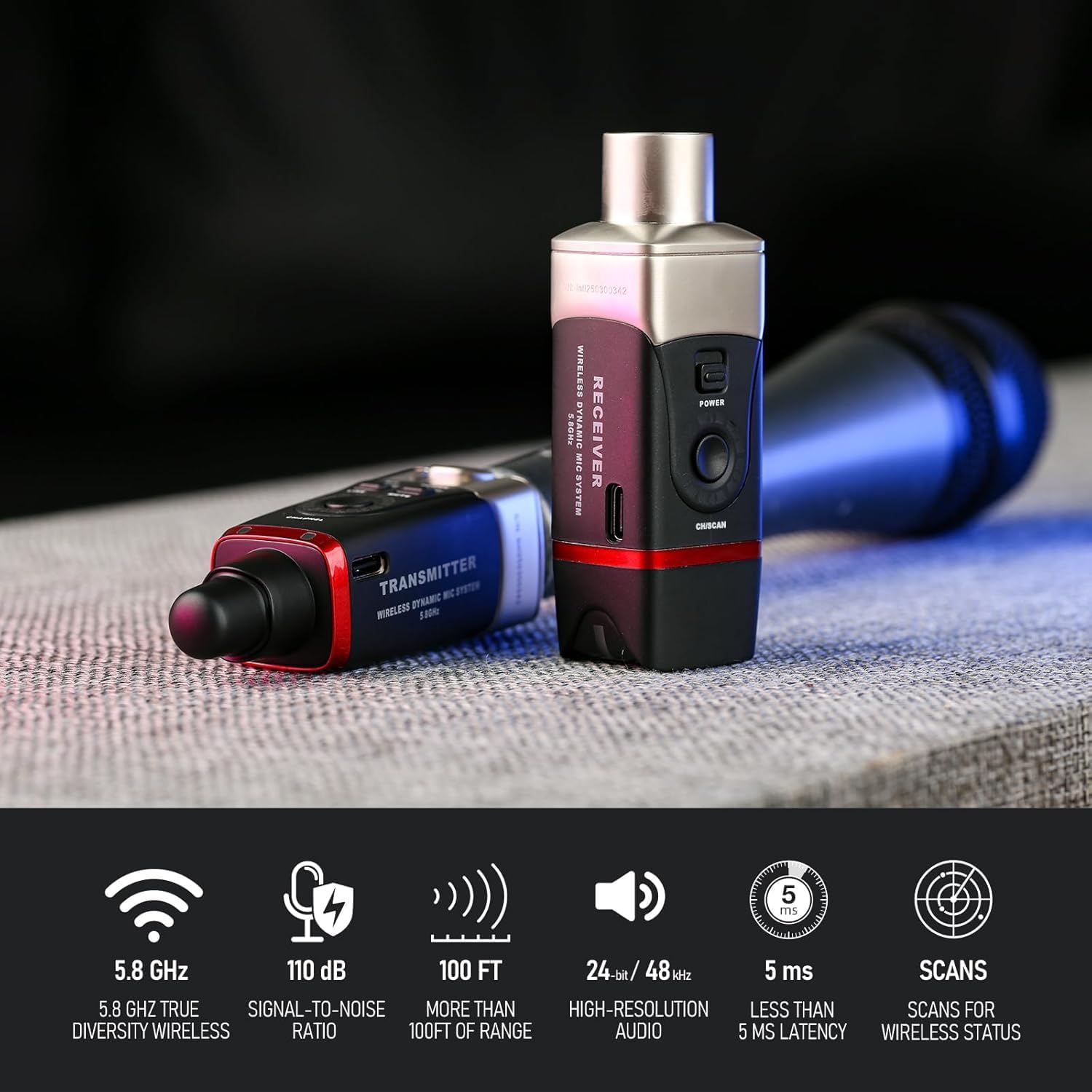

Figure 2: Key features of the Xvive U35D system, highlighting its technical specifications for reliable and high-quality wireless audio transmission.
2. Chii chiri muBhokisi
Your Xvive U35D Wireless Microphone System package includes the following components:
- 2 x U35 Transmitters
- 2 x U35 Receivers
- 2 x USB-C Kuchaja Cables
- 2 x PU Storage Bags
- 1 x Bhuku reMirayiridzo
Figure 3: All components included in the Xvive U35D Wireless Microphone System package.
3. Setup
3.1. Kuchaja mayunitsi
Before initial use, fully charge both the transmitters and receivers using the provided USB-C charging cables. The units feature USB-C ports for convenient charging. A dual-plug USB-C cable is included to charge both units simultaneously.
3.2. Kubatanidza Transmitter
Plug the U35 transmitter directly into the XLR output of your dynamic microphone. Ensure a secure connection. For microphones with recessed XLR connectors or for added flexibility, a short XLR adapter cable may be beneficial.
3.3. Kubatanidza Receiver
Connect the U35 receiver to the XLR input of your audio interface, mixer, PA system, or any other audio input device. Ensure the connection is firm.

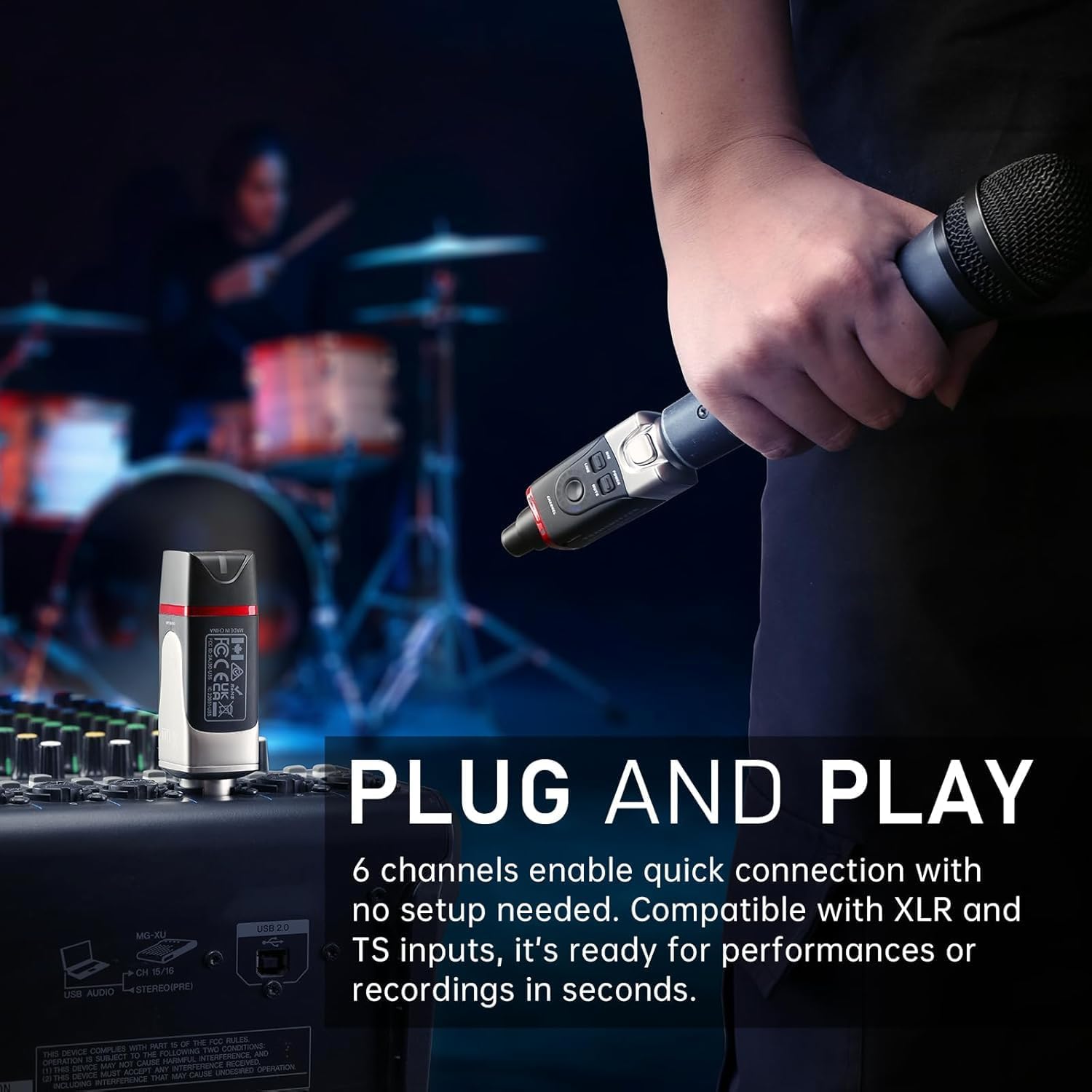

Figure 4: The Xvive U35D system connected to a microphone and a mixer, demonstrating its plug-and-play capability.
3.4. Powering On and Channel Selection
- Dzvanya uye ubate iyo Simba button on both the transmitter and receiver to turn them on.
- The units will automatically attempt to pair. A solid green light indicates a successful connection.
- If interference occurs or you need to use multiple systems, press the Channel button on the transmitter to cycle through the 6 available channels.
- For optimal performance, hold the receiver's Channel button for 3 seconds to initiate Channel Scan mode. The receiver's LED will flash while scanning, then remain steady on the best available wireless channel. Manually set the transmitter's channel to match the receiver's channel after scanning completes.
Figure 5: The channel selection and scan function on the Xvive U35D units, crucial for finding a clear signal.
4. Kushanda
4.1. MIC/LINE Mode Selection
The U35D transmitter features a switch to select between MIC mode uye LINE modhi:
- MIC Mode: Use this mode when connecting the transmitter to a dynamic microphone. This setting is optimized for microphone-level signals.
- LINE Mode: Use this mode when connecting the transmitter to line-level audio sources such as DJ controllers, audio mixers, or PA systems. This mode reduces the input gain to prevent signal distortion.
4.2. Mute Mute
Press the MUTE button on the transmitter to temporarily silence the audio transmission. Press it again to unmute.
4.3. Multiple Systems
The Xvive U35D system supports up to 3 sets operating simultaneously in the same location. Ensure each set (transmitter and receiver pair) is on a different channel to avoid interference.
Figure 6: Multiple Xvive U35D units, illustrating the system's capability to support several wireless connections simultaneously.
4.4. Official Product Video
Video 1: This official product video from Xvive Direct provides a comprehensive overview of the Xvive U35 Wireless Microphone System, demonstrating its features, setup, and applications for various audio needs.
5. Zvinotsanangurwa
| Feature | Tsanangudzo |
|---|---|
| Wireless Frequency | 5.8 GHz |
| Channels | 6 |
| Kunonoka | isingasviki 5 ms |
| Dynamic Range | 110 dB |
| Chiratidzo-ku-Ruzha Ratio | 110 dB |
| Audio Resolution | 24-chidimbu / 48kHz |
| Frequency Response | 20 Hz - 20 kHz |
| Wireless Range | Kusvika 100 ft (30.5 m) |
| Hupenyu hwebhatiri | Anenge maawa maviri |
| Simba Source | Inofambiswa neBateri (mabhatiri matatu eLithium Ion anosanganisira) |
| Maikorofoni Fomu Factor | Handheld, Table Array |
| Impedance | 220 Ohms |
| Material | Metal |
| Zviyero zveChigadzirwa (L x W x H) | 1.5 x 1.5 x 3.9 inches |
| Item Weight | 8 ounces |
| Kubatana Technology | RF (Radio Frequency) |
| Connector Type | XLR |
| Inowirirana Devices | Audio Interface, Audio Mixer, Camera, Karaoke Machine, PA System |
6. Kuchengeta
6.1. Kuchaja
To ensure optimal performance and battery longevity, fully charge the transmitters and receivers after each use, especially before extended storage. The internal Lithium Ion batteries are not user-serviceable.
6.2. Kuchenesa
Wipe the units with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the finish or internal components.
6.3. Kuchengeta
Store the Xvive U35D system in the provided PU storage bags when not in use to protect them from dust, moisture, and physical damage. Keep them in a cool, dry place.
7. Kugadzirisa matambudziko
7.1. No Audio / Intermittent Signal
- Ensure both the transmitter and receiver are powered on and fully charged.
- Verify that the transmitter and receiver are set to the same channel.
- Perform a channel scan on the receiver to find the clearest frequency, then match the transmitter's channel.
- Ensure there is a clear line of sight between the transmitter and receiver. Obstacles like walls, metal structures, or even human bodies can interfere with the 5.8 GHz signal.
- Check for other 5.8 GHz wireless devices in the vicinity that might be causing interference.
7.2. Distorted Audio
- If connecting to a line-level source (e.g., mixer output), ensure the transmitter is set to LINE mode. Using MIC mode with a line-level signal can cause distortion due to excessive gain.
- Check the input gain settings on your mixer or audio interface. Reduce the gain if the signal is clipping.
7.3. Transmitter/Receiver Not Fitting Securely
- Some mixers or microphones may have slightly recessed XLR connectors. If the U35 unit does not mate fully, use a short XLR extender cable or adapter to ensure a proper connection.
8. Warranty & Tsigiro
For warranty information and technical support, please refer to the official Xvive website or contact your local dealer. Keep your purchase receipt as proof of purchase.
