Powerhorse 4500 Watt Portable Dual Fuel Generator Instruction Manual

1. Chigadzirwa Pamusoroview

The Powerhorse 4500 Watt Portable Dual Fuel Generator is designed to provide reliable power for residential use, emergency home backup, camping, and outdoor events. This generator features dual fuel technology, allowing operation on either gasoline or propane, and includes advanced safety features such as CO detection and automatic shut-off.

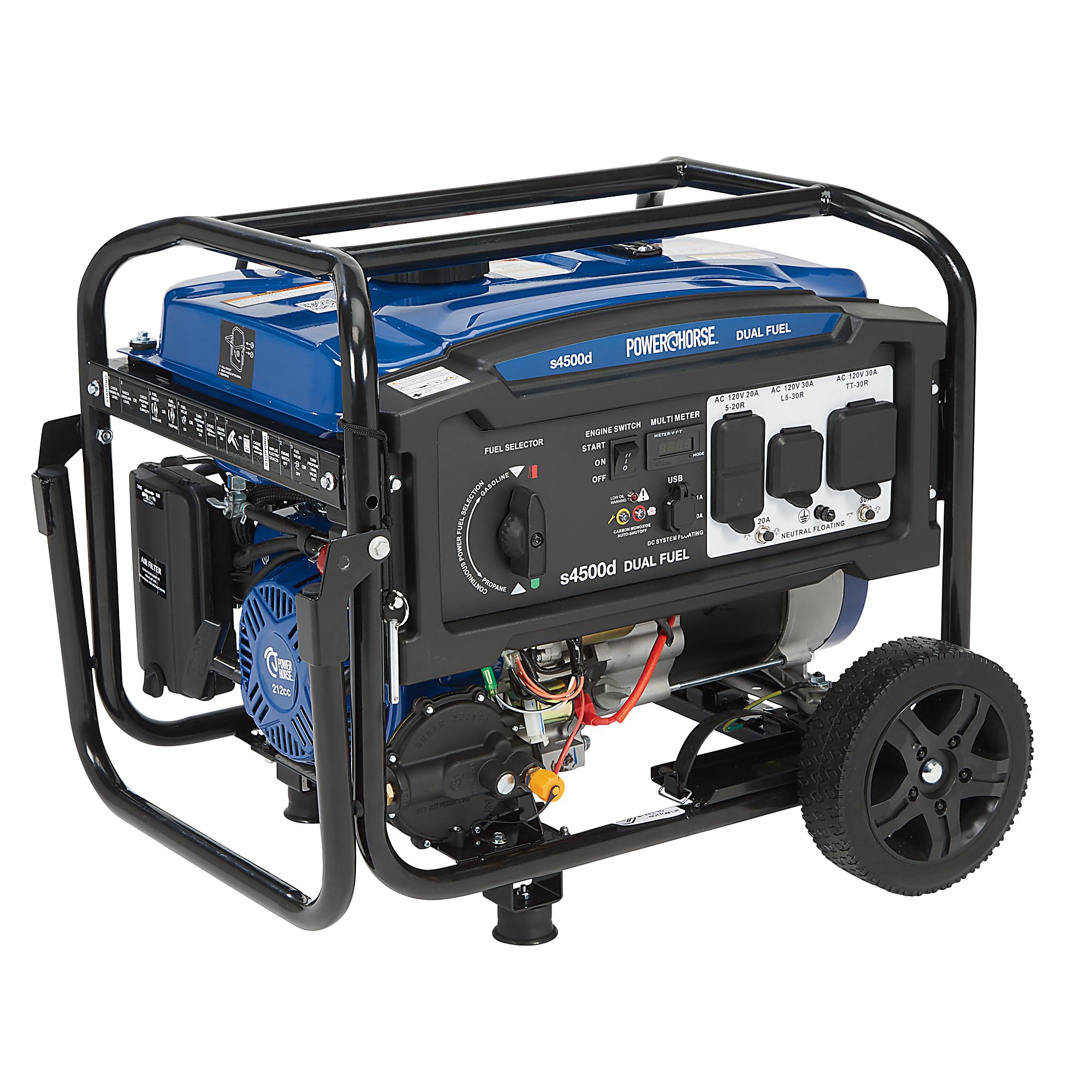

Image 1.1: Powerhorse 4500 Watt Portable Dual Fuel Generator, showcasing its robust frame and control panel.

Zvinokosha:

• Equipped with CO detection and indicator light for excessive emission warning.
• Dual fuel technology allows the generator to switch between gasoline and propane without the unit shutting down.
• 212cc engine with durable cast iron cylinder sleeve.
• Otomatiki voltage regulator with multimeter ensures consistent, reliable power.
• Full-featured control panel displays run time, voltage, uye kuwanda.

2. Safety Information

YAMBIRO: Read and understand all safety precautions and instructions in the complete operator manual before operating this generator. Failure to follow these instructions may result in serious injury or death.

General Safety Guidelines:

• Carbon Monoxide Hazard: Generators produce carbon monoxide, an odorless, colorless gas that can kill you. Operate the generator outdoors only, far away from windows, doors, and vents.
• Electrical Shock Hazard: Never operate the generator in wet conditions. Ensure proper grounding to prevent electrical shock.
• Moto Hazard: Mafuta anobvira moto zvakanyanya. Gara uchidira mafuta munzvimbo ine mhepo yakanaka injini yadzima uye ichitonhorera. Usazadze tangi remafuta zvakawandisa.
• Nzvimbo Dzinopisa The generator's engine and muffler become very hot during operation and remain hot for a period after shutdown. Avoid contact to prevent burns.
• Nzvimbo Yakakodzera: Always ensure the generator is properly grounded before operation. Refer to your local electrical codes and the operator manual for specific grounding instructions.

Image 2.1: Generator with visible safety labels, emphasizing the importance of reading warnings.

3. Setup

3.1 Kusunungura uye Gungano

The generator comes mostly pre-assembled. You will need to attach the wheels and the handle bar. Refer to the included assembly instructions for detailed steps.

3.2 Kuwedzera Injini Mafuta

1. Locate the oil fill cap (yellow cap) on the engine.
2. Bvisa mafuta ekuzadza cap / dipstick.
3. Using a funnel, carefully add the recommended 10W-30 oil until it reaches the bottom lip of the oil fill opening. Do not overfill.
4. Dzorera chivharo/dipstick yekuzadza mafuta zvakanaka.

Image 3.1: Engine oil fill location with the yellow cap, indicating where to add oil.

3.3 Kuwedzera Mafuta (Peturu kana Propane)

This generator operates on either gasoline or propane. Ensure the generator is off and cool before adding fuel.

Yepeturu:

1. Ensure the fuel selector switch on the control panel is set to 'GAS'.
2. Unscrew the gasoline tank cap.
3. Carefully pour fresh, unleaded gasoline (E10 or less ethanol content) into the tank using a funnel. The tank capacity is approximately 10 gallons.
4. Securely replace the gasoline tank cap.

Mufananidzo 3.2: Pamusoro view of the generator, highlighting the gasoline tank cap.

YePropane (LPG):

1. Ensure the fuel selector switch on the control panel is set to 'LPG'.
2. Connect the propane hose (included) to the generator's propane inlet and to a propane tank.
3. Ita shuwa kuti zvese zvinongedzo zvakasimba uye hazvibvisi.

3.4 Grounding the Generator

For safe operation, the generator must be properly grounded. Connect a grounding wire from the generator's grounding terminal to a suitable ground rod. Consult a qualified electrician for proper grounding procedures in your area.

Image 3.3: Detail of the control panel, showing the grounding terminal (labeled "NEUTRAL BONDED TO FRAME").

4. Operating Instructions

4.1 Kutanga jenareta

1. Ensure the generator is on a level surface, outdoors, and away from any structures.
2. Tarisa huwandu hwemafuta einjini nemafuta.
3. Select the desired fuel type (GAS or LPG) using the fuel selector switch on the control panel.
4. Tendeudza switch yeinjini panzvimbo yekuti 'ON'.
5. If starting a cold engine, apply choke as needed (refer to the choke lever position).
6. Press and hold the 'START' button (electric start) or pull the recoil start handle firmly until the engine starts.
7. Once the engine starts, slowly return the choke lever to the 'RUN' position.

Image 4.1: The main control panel, showing the fuel selector, engine switch, multimeter, and various power outlets.

4.2 Kubatanidza Mitoro Yemagetsi

Once the generator is running stably, you can connect your electrical devices. Ensure the total wattaghuwandu hwemidziyo yakabatana haipfuure simba remagetsi rinoyerera rejenaretatage.

• AC 120/240V 50A (14-50R) Outlet: For high-power appliances or connecting to a transfer switch.
• AC 120/240V 30A (L14-30R) Outlet: For heavy-duty appliances.
• AC 120V 30A (L5-30R) Outlet: For 120V 30A applications.
• AC 120V 20A GFCI Outlets: For standard household appliances, featuring ground fault circuit interrupter for safety.
• DC 12V 8A Outlet: Yekuchaja mabhatiri e12V.
• USB Outlets (2.1A, 1.0A): Yekuchaja zvishandiso zvidiki zvemagetsi.

4.3 Kudzima jenareta

1. Bvisa zvinhu zvese zvemagetsi kubva mujenareta.
2. Tendeudza switch yeinjini panzvimbo yekuti 'OFF'.
3. If using gasoline, turn the fuel shut-off valve to the 'OFF' position to run the carburetor dry, preventing fuel stagrudzi.
4. Kana uchishandisa propane, vhara vharuvhu iri patangi repropane.

5. Kuchengeta

Regular maintenance is crucial for the longevity and safe operation of your generator. Always refer to the complete operator manual for detailed maintenance schedules and procedures.

General Maintenance Tasks:

• Tarisa Oiri Level: Before each use, check the engine oil level and add if necessary.
• Chinja Oiri yeInjini: Change the engine oil after the first 20 hours of operation, and then every 100 hours or annually.
• Yakachena Mhepo Sefa: Inspect and clean the air filter regularly, more often in dusty conditions.
• Inspect Spark Plug: Check the spark plug condition and gap periodically. Replace if worn.
• Fuel System Maintenance: Kana ukachengeta jenareta kwenguva yakareba, dururira mafuta mutangi remafuta nekabhureta kana kushandisa chinosimbisa mafuta kudzivirira kuparara kwemafuta.
• Clean Generator: Chengeta jenareta yakachena uye isina tsvina.

6. Kugadzirisa matambudziko

If your generator experiences issues, consult the following basic troubleshooting guide. For more complex problems, refer to the full operator manual or contact customer support.

7. Zvinotsanangurwa

8. Warranty uye Tsigiro

Ruzivo rwewaranti:

This Powerhorse generator comes with a 2-makore mashoma waranti. Ndapota chengetedza humbowo hwako hwekutenga kwezvichemo zvewaranti.

Tsigiro yeVatengi:

For technical assistance, parts, or warranty inquiries, please contact Powerhorse customer support. Refer to your complete operator manual for contact details or visit the official Powerhorse website.

Additional protection plans may be available for purchase, such as a 4-Year Protection Plan or Complete Protect monthly plan. Check with your retailer for details.
