Plum chef KFJ-6870 20 Bar Professional Espresso Machine User Manual

Nhanganyaya

This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your Plum chef KFJ-6870 20 Bar Professional Espresso Machine. Please read this manual thoroughly before first use and retain it for future reference.

Yakakosha Mirayiridzo Yekuchengetedza

• Gara uine chokwadi chekuti muchina waiswa panzvimbo yakagadzikana, nhanho.
• Usanyudze muchina, tambo yemagetsi, kana kubatanidza mvura kana zvimwe zvinwiwa.
• Bvisa muchina kubva panobuda kana usiri kushandiswa uye usati wachenesa.
• Chengeta maoko netambo kure nenzvimbo dzinopisa uye utsi.
• Mudziyo uyu ndewekushandisa pamba chete.
• Usashandise muchina netambo yakakuvara kana plug.
• Vana vanofanirwa kutariswa kuti vaone kuti havatambe nemudziyo.

Zvigadzirwa Zvikamu

Familiarize yourself with the parts of your espresso machine:

• Main Unit (with control panel and brew head)
• Porta-sefa
• Bhasikiti reFirita reShot Imwe Chete
• Bhasikiti reFirita reMapfuti maviri
• ESE Pod Filter Basket
• Kuyera Scoop/Tamper
• Removable Water Tank (54 oz / 1.6L capacity)
• Drip Tray and Grate
• Steam Wand
• Cup Warming Plate

Image: The Plum chef KFJ-6870 espresso machine, showing the main unit, porta-filter, and two cups of espresso.

Mufananidzo: Rear view of the espresso machine highlighting the removable water tank and drip tray components.

Gadzirira

1. Kubvisa bhokisi uye Kuchenesa Kwekutanga

1. Nyatsobvisa zvese zvikamu kubva pakurongedza.
2. Wash the water tank, porta-filter, filter baskets, measuring scoop, and drip tray with warm, soapy water. Rinse thoroughly and dry.
3. Pukuta kunze kwemuchina nekushambadziraamp jira.

2. Kuzadza Tangi Yemvura

• Remove the 54 oz (1.6L) water tank from the back of the machine.
• Zadza tangi nemvura yakachena, inotonhora kusvika pamutsetse weMAX.
• Replace the water tank securely into its position. Ensure it is properly seated to prevent leaks.

Image: The espresso machine on a kitchen counter, showing the transparent removable water tank at the back.

3. Initial Prime (First Use)

• Batanidza muchina mupombi yemagetsi yakadzikwa.
• Place a large cup under the brew head and steam wand.
• Batidza muchina uchishandisa bhatani remagetsi.
• Allow the machine to heat up (indicator light will stop flashing).
• Run a cycle of hot water through the brew head without coffee.
• Open the steam knob to release steam for 15-20 seconds to prime the pump. Close the steam knob.

Operating Instruction

1. Preheating Cups

Place your espresso cups on the cup warming plate located on top of the machine. This helps maintain coffee temperature and flavor.

Image: Close-up of the top heating plate with two cups, illustrating the cup preheating function.

2. Kubika Espresso

1. Prepare the Porta-filter:
   • For ground coffee: Insert the desired filter basket (single or double shot) into the porta-filter. Fill with finely ground espresso coffee using the measuring scoop. Tamp zvakasimba uye zvakaenzana.
   • For ESE pods: Insert the ESE pod filter basket. Place one ESE pod into the basket.
2. Attach Porta-filter: Align the porta-filter with the brew head and twist firmly to the right until it is securely locked.
3. Kapu yenzvimbo: Position your preheated cup(s) under the porta-filter spouts.
4. Tanga Kubika: Press the single or double shot button on the control panel. The machine will automatically brew the espresso and stop.

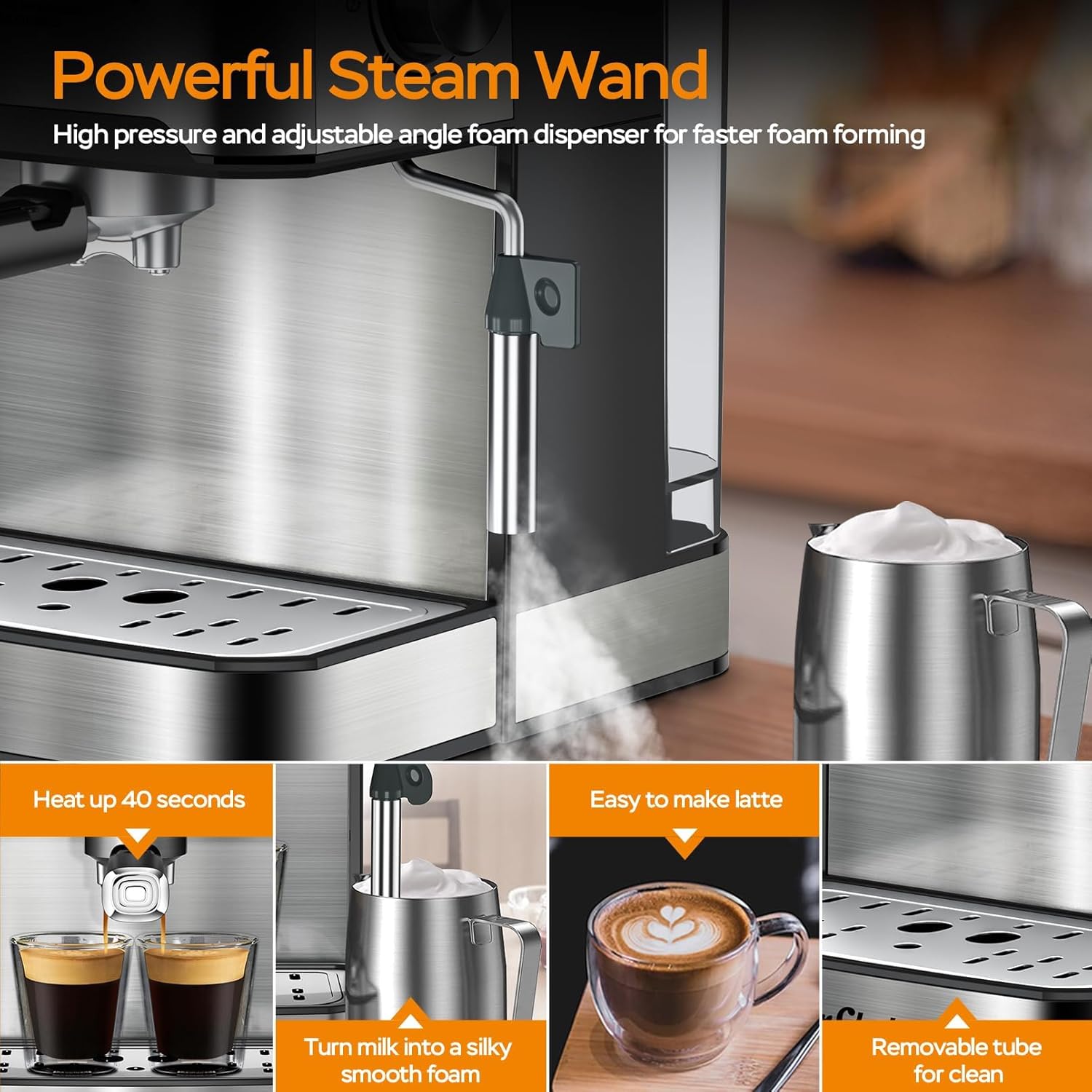

Image: The espresso machine with a hand frothing milk using the steam wand, emphasizing the 20 bar pump pressure.

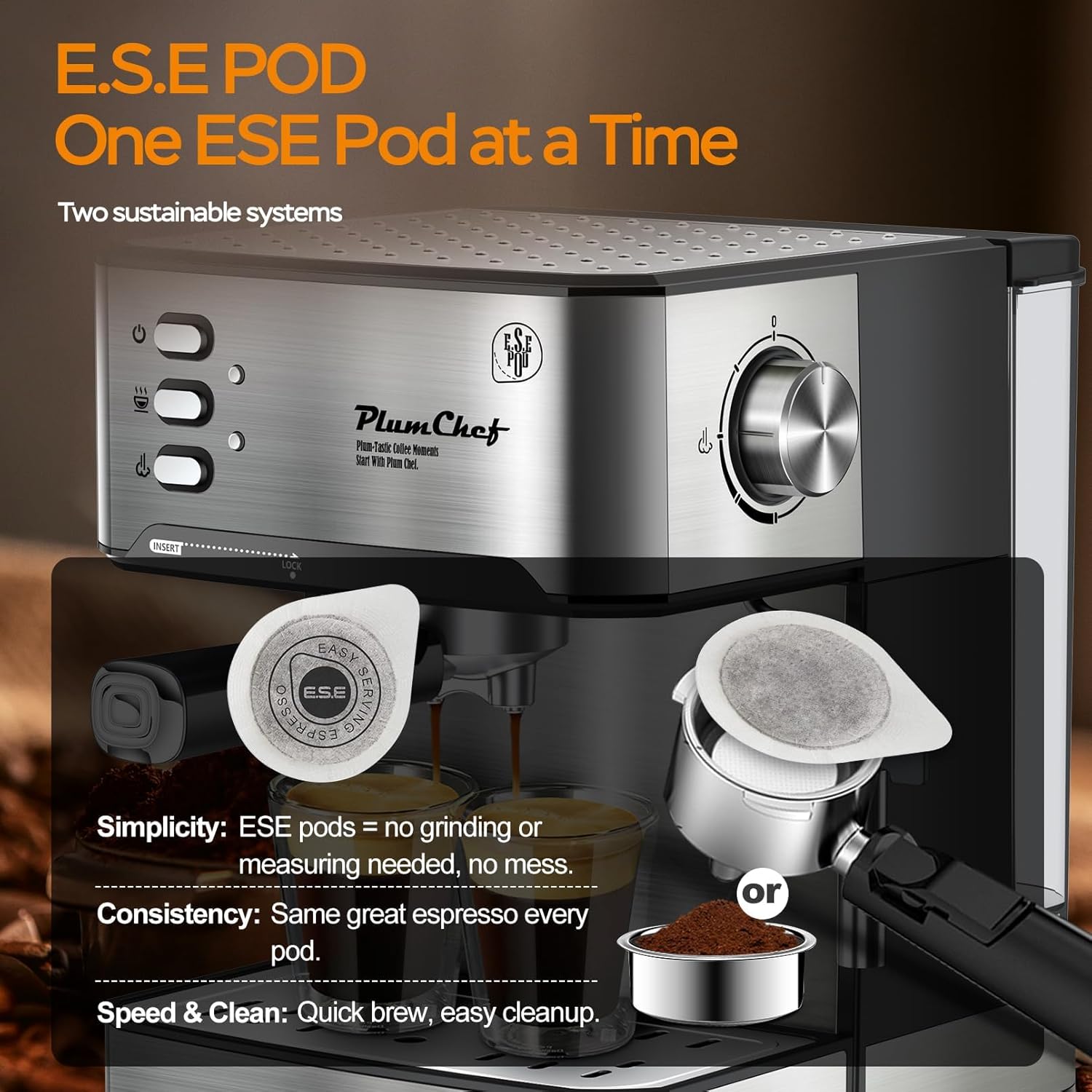

Image: The espresso machine illustrating the use of an ESE pod, highlighting its simplicity and consistency.

3. Milk Frothing

1. Zadza chirongo chesimbi isina furo nemukaka unotonhora (mukaka kana usiri wemukaka) kusvika pazasi pe spout.
2. Press the steam button on the control panel. Wait for the steam indicator light to illuminate steadily, indicating the machine is ready for steaming.
3. Position the steam wand just below the surface of the milk.
4. Turn the steam control knob to release steam. Move the pitcher up and down to create microfoam.
5. Once desired foam consistency and temperature are reached, turn off the steam control knob and remove the pitcher.
6. Pukuta tsvimbo yeutsi nekukasika nekushambadziraamp jira rekudzivirira kuti mukaka usaome.

Image: The espresso machine displayed with examples of different coffee beverages like Espresso, Latte, Mocha, and Cappuccino.

Kuchengetedza uye Kuchenesa

Kuchenesa nguva dzose kunoita kuti muchina wako we espresso ushande zvakanaka uye ugare kwenguva refu.

Daily Cleaning

• Porta-filter and Filter Baskets: After each use, remove the porta-filter, discard coffee grounds, and rinse thoroughly under hot water.
• Steam Wand: Pakarepo mushure mekukanda furo mukaka, pukuta wand yehutsi neadamp cloth. Purge steam briefly to clear any internal milk residue.
• Drip Tray: Bvisa uye sukurudza tray yekudonha zuva nezuva.
• Kunze: Wipe the stainless steel casing ne nyoro, damp jira.

Weekly Cleaning

• Tangi Yemvura: Remove and wash the water tank with warm, soapy water. Rinse well.
• Musoro weBira: Use a small brush to clean any coffee grounds from the brew head screen.

Kudzikisira

Depending on water hardness and usage, descaling should be performed every 2-3 months. Refer to a suitable descaling solution's instructions for proper procedure.

Kugadzirisa matambudziko

Zvinotsanangurwa

Warranty uye Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact Plum chef customer service directly. Keep your proof of purchase for any warranty claims.

Kuti uwane rumwe rubatsiro, ndapota shanyira iyo Plum chef Store.
