EuropAce ESF5165EDCR 16-inch DC Stand Fan User Manual

Yakakosha Mirayiridzo Yekuchengetedza

Ndapota verengai mirairo yese nokungwarira musati mashandisa mudziyo uyu uye muichengete kuti muzoshandisa mune ramangwana. Kukundikana kutevedzera mirairo iyi kunogona kukonzera kuvhunduka kwemagetsi, moto, kana kukuvara kwakanyanya.

Nguva dzose chengetedza voltage yakaratidzwa pachiratidzo cheratidzo inoenderana neyako mains voltage.
Usashandise chero fan netambo yakakuvara kana plug. Rasa feni kana dzokera kunzvimbo yakatenderwa sevhisi kunoongororwa uye/kana kugadzirisa.
Usamhanye tambo pasi pekapeti. Usafukidze tambo nerape, mumhanyi, kana zvimwe zvifukidzo zvakafanana. Ronga tambo kure nenzvimbo yemotokari uye kwaisingazogumburwe.
To protect against electrical hazards, do not immerse unit, plug, or cord in water or spray with liquids.
Kutariswa kwepedyo kunodiwa kana chero mudziyo uchishandiswa nevana kana pedyo.
Bvisa kubva pakubuda kana isiri kushandiswa, paunenge uchifambisa fan kubva kune imwe nzvimbo uchienda kune imwe, uye usati wachenesa.
Usapinze minwe kana chimwe chinhu kuburikidza negrille kana feni iri kushanda.
Do not use outdoors. This fan is for indoor use only.
Isa feni panzvimbo yakatsiga, yakati sandara kuti isanyungudika.

Product Overview

The EuropAce ESF5165EDCR DC Stand Fan is designed for efficient air circulation and cooling. It features an energy-efficient DC motor, a 16-inch fan blade, and convenient control options.

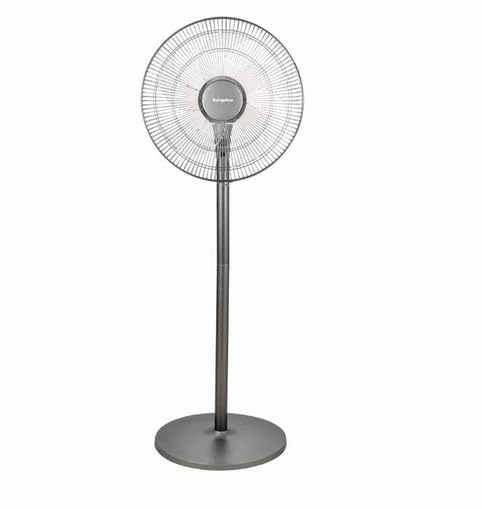

Figure 1: EuropAce ESF5165EDCR DC Stand Fan (Front View)

Zvikamu:

Musoro weFan: Includes front grille, fan blade, and rear grille.
Control Panel: Touch and knob controls for power, speed, oscillation, and timer.
Adjustable Stand Pole: Inobvumira kugadziriswa kwehurefu.
Base: Inopa kugadzikana kwefeni.
Remote Control: Kuti ushande zviri nyore kubva kure.
Power Cord: Inobatanidza feni nechinhu chinoburitsa magetsi.

Setup uye Assembly

Assembly is required before first use. Please follow these steps carefully:

Unpack Components: Carefully remove all parts from the packaging. Ensure all components listed in the Product Overview chikamu chiripo.
Unganidza Base: Place the stand pole onto the base. Secure it using the provided screw and washer from underneath the base. Tighten firmly.
Attach Rear Grille: Remove the spinner nut and retaining nut from the motor shaft. Place the rear grille onto the motor housing, ensuring it aligns with the positioning pins. Secure it with the retaining nut, turning clockwise.
Install Fan Blade: Slide the fan blade onto the motor shaft, ensuring the notch on the blade aligns with the pin on the shaft. Secure it with the spinner nut, turning counter-clockwise to tighten.
Batanidza Grille Yepamberi: Place the front grille over the rear grille, aligning the clips. Secure the grilles together using the provided clips or screws around the rim. Ensure the grilles are securely fastened.
Gadzirisa Urefu: Loosen the height adjustment knob on the stand pole, adjust the pole to the desired height, and then tighten the knob securely.
Position Fan: Place the assembled fan on a stable, flat surface.

Operating Instruction

Iyo fan inogona kushandiswa uchishandisa control panel pane iyo unit kana inosanganisirwa remote control.

Control Panel Operation:

Batidza/Kudzima: Turn the main knob clockwise to power on the fan. Turn it counter-clockwise to power off.
Speed Kugadziridza: Once powered on, rotate the knob to increase or decrease the fan speed. The fan features multiple speed settings.
Oscillation: Press the oscillation button (often indicated by an arrow icon) on the control panel to start or stop the fan head oscillating horizontally.
Basa renguva: Press the timer button to set the desired operating duration. Each press typically adds an increment of time (e.g., 1 hour, 2 hours, up to a maximum). The fan will automatically turn off after the set time.

Remote Control Operation:

Ensure batteries are correctly inserted into the remote control. Point the remote control towards the fan's receiver when operating.

Bhatani reSimba: Dzvanya kuti ubatidze kana kudzima feni.
Mabhatani ekumhanya: Use '+' and '-' buttons to adjust the fan speed.
Kubvisa Bhatani: Press to activate or deactivate the oscillation function.
Bhatani reTimer: Press to cycle through available timer settings.
Mode Button (if applicable): Some models may have different modes (e.g., normal, natural, sleep). Press to cycle through these modes.

Kuchengetedza uye Kuchenesa

Kuchenesa nekugadzirisa nguva dzose kuchaita kuti feni yako ishande zvakanaka uye kuchaita kuti irarame kwenguva refu.

Before Cleaning: Gara uchisunungura feni kubva mudura remagetsi usati wachenesa kana kuita chero kugadzirisa.
Kucheneswa Kwekunze: Pukuta kunze kwekunze kwefeni nekanyoro, damp jira. Usashandise abrasive cleaners kana zvinonyungudutsa, sezvo izvi zvinogona kukanganisa kupera.
Kuchenesa Grille neBlade:
1. To clean the fan blades and inside the grilles, you may need to remove the front grille. Refer to the "Setup and Assembly" section for reverse steps.
2. Carefully wipe the blades and grilles with a soft, damp cloth or use a vacuum cleaner with a brush attachment to remove dust.
3. Ensure all parts are completely dry before reassembling and operating the fan.
Kuchengeta: Kana isiri kushandiswa kwenguva yakareba, chengetedza feni munzvimbo inotonhorera, yakaoma, zviri nani mupakeji yayo yepakutanga, kuidzivirira kubva kuguruva uye kukuvara.

Kugadzirisa matambudziko

If you encounter any issues with your fan, please refer to the following troubleshooting guide before contacting customer support.

Dambudziko	Zvinogona Kukonzera	Solution
Fani haibatike.	Hapana magetsi. Tambo yemagetsi haina kubatanidza zvakanaka. Remote control mabhatiri akafa.	Tarisa uone kana magetsi ari kushanda. Ensure the power cord is securely plugged into the outlet and the fan. Tsiva mabhatiri eremote control.
Kuyerera kwemhepo kusina simba kana kusina.	Kumhanya kwefeni kwakaderera zvakanyanya. Magrille kana kuti mapanga akasviba.	Wedzera kumhanya kwefeni. Clean the fan grilles and blades as per the "Maintenance and Cleaning" section.
Fani inoita ruzha rusina kujairika.	Zvikamu zvakasununguka. Feni haisi panzvimbo yakagadzikana. Kuvharika kwemashizha efeni.	Check all assembled parts are tightened securely. Isa feni panzvimbo yakati sandara, yakagadzikana. Unplug the fan and check for any obstructions in the blades or grilles.
Remote control haisi kushanda.	Mabhatiri akafa kana kuiswa zvisizvo. Kuvharika pakati peremote nefeni.	Tsiva mabhatiri, kuve nechokwadi chechokwadi polarity. Ensure there is a clear line of sight between the remote and the fan's receiver.

Zvinotsanangurwa

Model	ESF5165EDCR
Brand	EuropAce
Electric Fan Design	Uriri Fan
Simba Source	DC Motor
Product Dimensions	45D x 40W x 126H masendimita
Special Features	Oscillating, Pedestal Base, Remote Controlled
Inosanganisirwa Zvikamu	Remote
Gungano Rinodiwa	Ehe

Warranty uye Support

Chigadzirwa ichi chakafukidzwa newarandi yemugadziri. Ndapota tarisa kadhi rewarandi riri mupakeji yechigadzirwa chako kuti uwane mitemo nemamiriro chaiwo, kusanganisira nguva yewarandi uye ruzivo rwekufukidza.

For technical support, service inquiries, or to purchase replacement parts, please contact EuropAce customer service. Contact information can typically be found on the EuropAce official websaiti kana pane chigadzirwa kurongedza.

Ndapota chengetedza humbowo hwako hwekutenga kwezvichemo zvewaranti.
