Nhanganyaya
Welcome to the URLIFE Electric Bike user manual. This guide provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new 14" Folding Electric Bike. Designed for adults and teens, this e-bike features a powerful 500W peak motor, a long-range 48V 375Wh removable battery, and a compact, foldable design for convenient storage and transport.
Mufananidzo: Iyo URLIFE 14" Folding Electric Bike, showcasing its compact design and dark black finish. A smaller inset image shows the bike in its folded state.
Key Features
- Powerful 500W Peak Motor: Experience speeds up to 20 MPH for efficient commuting and adventurous rides.
- Long Range & Removable Battery: The 48V 375Wh battery provides 20-40 miles per charge with 3-5 hours fast charging.
- Triple Shock Absorption System: Front fork, central, and seat suspension reduce road vibrations for a smooth ride.
- Space-Saving Fold + 3 Riding Modes: Easily folds for storage and offers E-Bike, Pedal-Assist, and Manual modes.
- UL & GCC Certification: Ensures safety and reliability with certified components.
Mufananidzo: Zvakadzama view of the 500W peak motor, highlighting its internal components and power capabilities.
Mufananidzo: Wakajeka view of the removable 48V 7.5AH battery, showing its internal structure and key features like BMS safety protection and UL 2849 certification.
Image: Illustration of the multiple shock absorption design, including mid-mounted suspension, saddle shock, and front shock, ensuring a smooth ride.
Package Zviri mukati
Upon unboxing, please verify that all components are present and undamaged. The package should include:
- URLIFE 14" Folding Electric Bike (main unit)
- 48V 375Wh Removable Battery
- Battery Charger
- Keys for power and battery removal
- Kiti yeZvishandiso (yekusanganisa)
- Mushandisi Chinyorwa (gwaro iri)
Gadzirira
Your URLIFE Electric Bike comes mostly pre-assembled. Follow these steps to prepare your bike for its first ride:
- Unfold the Bike: Carefully unfold the bike frame until it locks into place. Ensure all locking mechanisms are securely fastened.
- Isa Pedals: Identify the left (L) and right (R) pedals. Screw them into the crank arms. Note that the left pedal has a reverse thread. Tighten securely with the provided tool.
- Adjust Seat and Handlebars: Insert the seat post into the frame and adjust the height to a comfortable riding position. Secure the quick-release lever. Adjust the handlebar height and angle for optimal comfort and control, then tighten the stem clamp.
- Chaja Bhatiri: Before first use, fully charge the battery. Connect the charger to the battery port and then to a power outlet. The indicator light on the charger will change when fully charged (typically 3-5 hours).
- Pre-Ride Check: Before every ride, check tire pressure, brake functionality, and ensure all bolts and quick-release levers are tight.
Image: A person demonstrating the compact folding design of the URLIFE Electric Bike, easily fitting it into a car trunk for transport or storage.
Kushanda
Your URLIFE Electric Bike offers versatile riding options. Familiarize yourself with the controls and riding modes for an optimal experience.
Kubatidza/Kudzima
- Insert the key into the ignition and turn it to the "ON" position to power on the bike.
- To power off, turn the key to the "OFF" position. The key can also be used to remove the battery for charging or security.
Kutasva Modes
The bike features three distinct riding modes:
- E-Bike Mode (Pure Electric): Engage the throttle for full electric power, reaching speeds up to 20 MPH. This mode provides assistance without pedaling.
- Pedal-Assist Mode: The motor provides assistance as you pedal, extending your range up to 40 miles. This mode is ideal for longer rides and conserving battery.
- Manual Mode: Tamba bhasikoro sebhasikoro rechinyakare usina rubatsiro rwemagetsi.
Image: A person riding the URLIFE Electric Bike, illustrating the three riding modes: Classic Ride (Sport Mode), 20 Miles Pure Electric, and 40 Miles Pedal-Assist.
Braking System
The URLIFE Electric Bike is equipped with dual disc brakes for reliable stopping power in various conditions. Always apply both brakes smoothly and evenly for safe deceleration.
Mufananidzo: Zvakadzama view of the front and rear disc brakes, emphasizing their robust design for reliable stopping.
Safety Features
For your safety, the bike includes a bright front LED light and a rear reflector. Always use appropriate lighting when riding in low-light conditions.
Image: Close-up of the front LED light and rear reflector, highlighting their importance for visibility and secure riding.
Maintenance
Kugadziriswa nguva dzose kunovimbisa kugara kwenguva refu uye kushanda kwakachengeteka kwe URLIFE Electric Bike. Perform these checks periodically:
- Tyre Pressure: Check tire pressure before each ride and inflate to the recommended PSI (found on the tire sidewall).
- Mabhureki: Regularly inspect brake pads for wear and ensure brake levers provide firm and responsive stopping power. Adjust or replace as needed.
- Chain Lubrication: Keep the chain clean and lubricated to ensure smooth pedaling and prevent rust.
- Battery Care: Store the battery in a cool, dry place. Avoid fully discharging the battery frequently. If storing for extended periods, charge it to about 50-70%.
- General Inspection: Periodically check all bolts, nuts, and quick-release mechanisms for tightness. Ensure no parts are loose or damaged.
- Kuchenesa: Geza bhasikoro nedamp jira. Dzivisa kushandisa majeti emvura ane simba rakawanda zvakananga pamagetsi.
Kugadzirisa matambudziko
This section addresses common issues you might encounter with your electric bike. For problems not listed here, please contact customer support.
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Bhasikoro haribatidzi | Battery not charged; Key not in "ON" position; Loose battery connection. | Charge battery; Ensure key is fully turned; Check battery seating. |
| Mota haisi kubatsira | Battery low; Incorrect riding mode selected; Loose motor cable. | Recharge battery; Switch to E-Bike or Pedal-Assist mode; Check motor connections. |
| Bhatiri pfupi | Under-inflated tires; Frequent use of E-Bike mode; Riding uphill often. | Inflate tires to recommended PSI; Utilize Pedal-Assist mode more; Plan routes to minimize steep inclines. |
| Mabhureki anonzwa asina simba | Mapedhi ebhureki akasakara; Tambo yebhureki yakasununguka; Mhepo iri mu hydraulic system (kana zvichibvira). | Ongorora uye chinja mapedhi ebhureki; Gadzirisa kusimba kwetambo yebhureki; Bvunza nyanzvi kana paine matambudziko emabhureki ehydraulic. |
Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Model Name | F1L |
| Bike Type | Kupeta Bhasikoro |
| Age Range (Tsanangudzo) | Mukuru |
| Brand | URLIFE |
| Nhamba Yekumhanya | 3 |
| Color | Rima Dema |
| Frame Material | Carbon Steel |
| Kumiswa Type | Front, Central, Seat |
| Special Feature | Adjustable Seat, Digital Display, Dual Disc Brake, Foldable |
| Inosanganisirwa Zvikamu | Tool Kit |
| Size | 14" |
| Brake Style | Disc |
| Mashandisirwo Akananga Kwechigadzirwa | Commuter, Urban, Leisure |
| Item Weight | 53.7 Pondo |
| Simba Source | Motokari yemagetsi |
| Motor Peak Wattage | 500W |
| Bhatiri Voltage | 48V |
| Battery Capacity | 375Wh (7.5AH) |
| Max Speed | 20 MPH |
| Max Range | 40 Miles (Pedal-Assist) |
| Kuchaja Nguva | 3-5 Maawa |
| Maximum Weight Recommendation | 265 Pondo |
| Certifications | UL 2849, GCC |

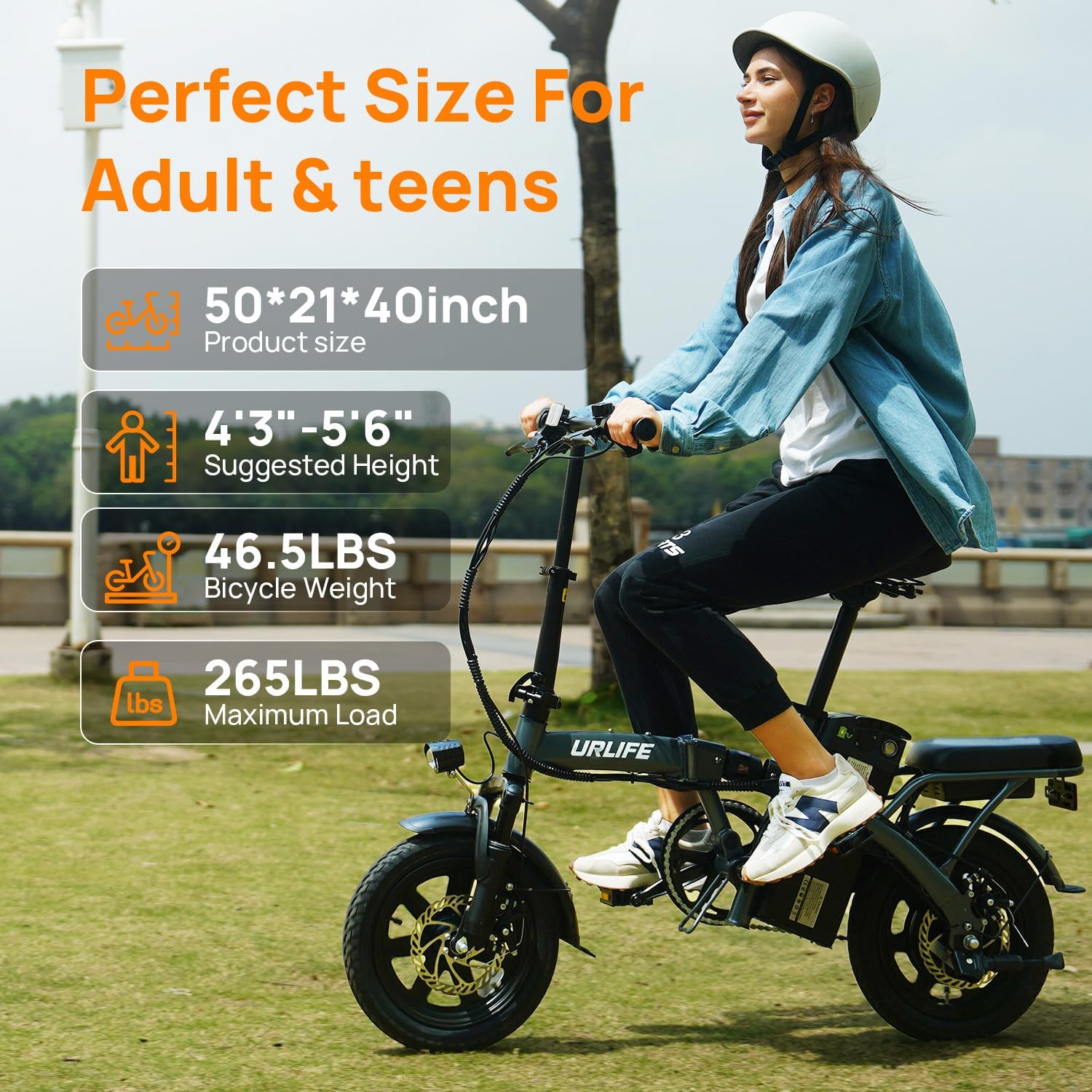

Image: Visual representation of the bike's dimensions (Product size: 50"x21"x40") and suggested rider height (4'3"-5'6"), along with bicycle weight (46.5 LBS) and maximum load (265 LBS).
Warranty & Support
Warranty Information
The URLIFE Electric Bike comes with a 1-Yegore Warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. Please retain your proof of purchase for warranty claims. The warranty does not cover damage due to misuse, accidents, normal wear and tear, or unauthorized modifications.
Mutengi Support
For any questions, technical assistance, or warranty claims, please contact URLIFE-US customer support. Refer to your purchase documentation for specific contact details or visit the official URLIFE website.
