Nhanganyaya
Thank you for choosing the FREDBECK 60x84 Brown K-Frame Barn Door. This manual provides comprehensive instructions for the safe and proper assembly, installation, operation, and maintenance of your new barn door system. Please read all instructions carefully before beginning installation and retain this manual for future reference.

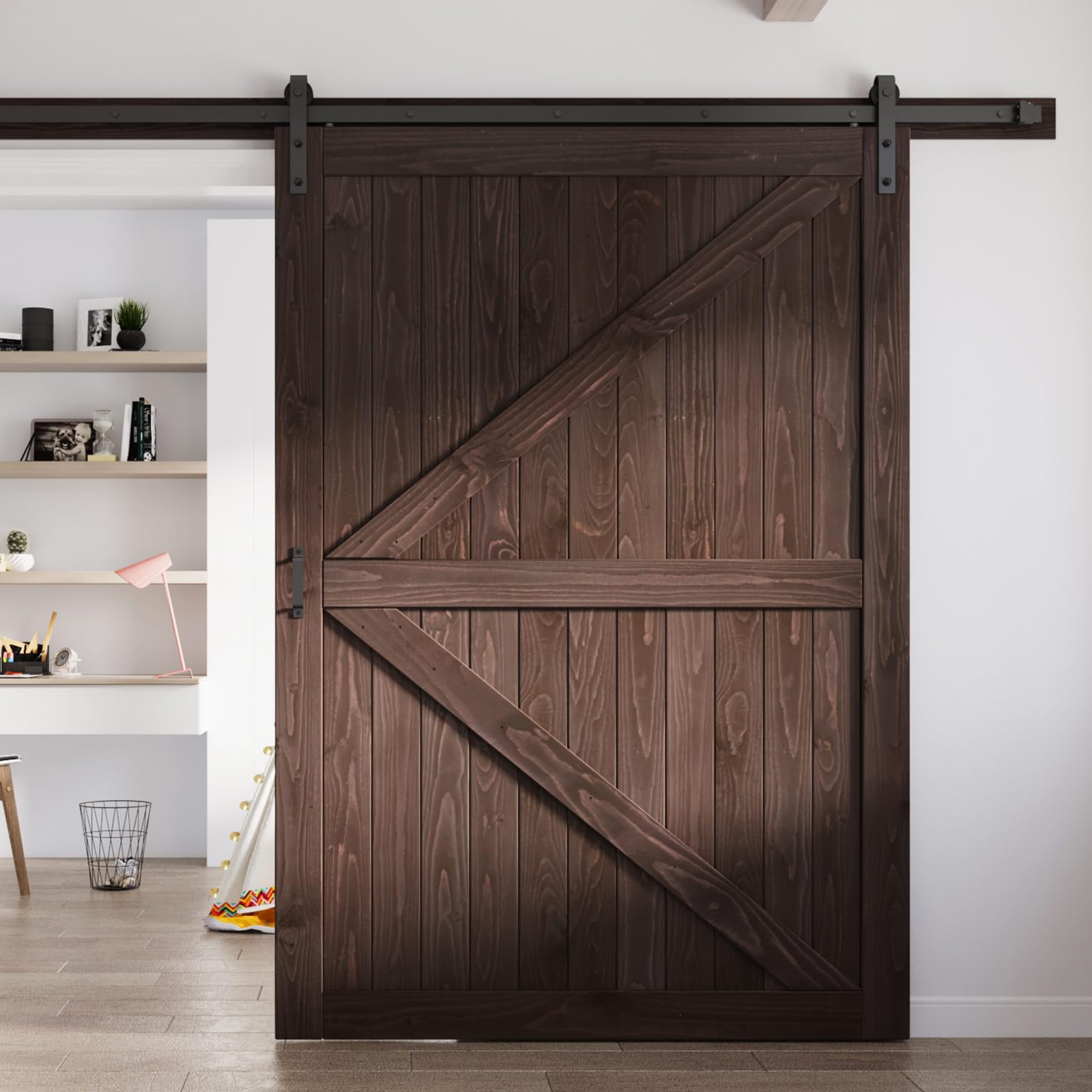

Figure 1: FREDBECK 60x84 Brown K-Frame Barn Door
Safety Information
- Verenga mirairo yese: Ensure you understand all steps before assembly and installation.
- Two-person assembly: Due to the size and weight of the door, two people are recommended for safe assembly and installation.
- Wall structure: Ensure the wall where the track will be mounted is structurally sound and can support the weight of the door and hardware. A header board (not included) may be required to align with wall studs for secure mounting.
- Proper tools: Shandisa maturusi akakodzera pakuboorera nekusunga.
- Clearance: Verify sufficient clearance around the door opening for the door to slide freely.
- Vana uye mhuka dzinovaraidza: Chengetedza vana uye mhuka dzinovaraidza kure nenzvimbo yekuisa.
- Kuongororwa nguva nenguva: Periodically check all fasteners and hardware for tightness and wear.
Package Zviri mukati
Iva nechokwadi chekuti zvese zvirimo usati watanga kugadzira.
- 1x 60-inch Barn Door Slab (Spruce Wood, K-Frame design)
- 2x 5FT Track sections (total 10ft / 120inch)
- 2x Hangers
- 10x Spacers
- 1x Floor Guide
- 1x Pull Handle
- Zvishandiso zveAssembly (screws, bolts, nezvimwewo)
- Bhuku reMirayiridzo
Mufananidzo 2: Zviri Mukati mePakeji Zvakabatanidzwa
Zvinotsanangurwa
| Brand | FREDBECK |
| Model Number | MB-02HA2-YS-60K |
| Color | Bhurawuni |
| Material | Spruce Wood |
| Door Dimensions (W x H x T) | 60 inches x 84 inches x 1.4 inches |
| Solid Core Thickness | 1/2 inch |
| Track Length | 10 tsoka (120 inches) |
| Item Weight | 54 Pondo |
| Gungano Rinodiwa | Ehe |
Figure 3: Spruce Wood Characteristics
Gungano Mirayiridzo
The FREDBECK barn door requires simple assembly. Follow these steps carefully.
- Vhura uye ongorora: Carefully unpack all components and inspect for any damage or missing parts. Refer to the "Package Contents" section.
- Unganidza Mapaneru eMasuo: The spruce wood panels are mitered for a snug fit. Arrange the panels according to the K-Frame design. Secure them using the provided screws and pre-drilled holes. Ensure all connections are tight.
- Batanidza Bata: Install the pull handle to the desired side of the door using the provided hardware.
- Isa maHanger: Attach the hangers to the top edge of the assembled door slab. Ensure they are securely fastened and properly aligned.
- Nzira yeGomo:
- Determine the mounting height for the track. The track should be mounted above the door opening, allowing sufficient clearance for the door to slide.
- Locate wall studs. It is crucial to mount the track into wall studs for stability. If studs do not align, a sturdy header board (minimum 1x6 inch, not included) must be installed across the door opening and securely fastened to studs, then the track mounted to the header board.
- Drill pilot holes for the track mounting screws.
- Attach the track sections to the wall using the spacers and mounting hardware. Ensure the track is level and securely fastened.
- Hang Door: With assistance, carefully lift the assembled door and hook the hangers onto the track.
- Gwaro rekuisa pasi: Position the floor guide in the pre-made groove at the bottom of the door. Secure it to the floor to prevent the door from swinging out.
- Gadzirisa uye Edza: Slide the door back and forth to ensure smooth operation. Adjust the track stoppers to prevent the door from sliding too far.
Figure 4: Quick Assembly Overview
Figure 5: Door Construction and Hardware Details
Operating Instruction
To operate your FREDBECK barn door:
- Grasp the pull handle firmly.
- Gently slide the door along the track to open or close it. The door is designed to slide smoothly and quietly.
- Ensure the door comes to a complete stop against the track stoppers at the end of its travel.
Maintenance
Kugadziriswa nguva dzose kuchaita kuti gonhi remudura rako rigare kwenguva refu uye rishande zvakanaka.
- Kuchenesa: Wipe the door and hardware with a soft, damp cloth. Avoid harsh chemicals that may damage the wood finish or hardware.
- Hardware Check: Periodically check all screws and bolts on the hangers, track, and handle to ensure they remain tight. Tighten if necessary.
- Nziyo neMaroller: Keep the track free of dust and debris. The rollers should move freely. If the door becomes difficult to slide, clean the track and rollers.
- Gwaro rePasi: Regularly clean the floor guide to prevent accumulation of lint, hair, or other debris, which can impede smooth sliding.
Kugadzirisa matambudziko
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Gonhi haritsvedzeri zvakanaka kana kuita ruzha. | Debris in track, loose hardware, misaligned track, dirty floor guide. | Clean the track and rollers. Tighten all hardware. Ensure the track is level. Clean the floor guide. |
| Gonhi rinoita serisingagadzikane kana kuti risina kugadzikana. | Loose track mounting screws, inadequate wall support. | Tighten all track mounting screws. Ensure the track is securely fastened to wall studs or a robust header board. Consult a professional if wall support is insufficient. |
| Mukova hauvharike zvachose. | Track stoppers incorrectly positioned, obstruction. | Adjust the position of the track stoppers. Check for any obstructions along the door's path. |
Warranty uye Support
For warranty information or technical support, please contact FREDBECK customer service. Keep your purchase receipt and model number (MB-02HA2-YS-60K) handy for faster service.
Visit the official FREDBECK store for more products and support: FREDBECK Store
