1. Nhanganyaya
The Godox V480O is a high-performance TTL Li-ion camera flash designed for Olympus and Panasonic cameras. It features a built-in 2.4G X wireless system, high-speed sync (HSS) up to 1/8000s, and a user-friendly 2.0-inch color touchscreen for intuitive control. This manual provides essential information for setting up, operating, and maintaining your V480O flash.
Figure 1.1: The Godox V480O TTL Li-ion Camera Flash.

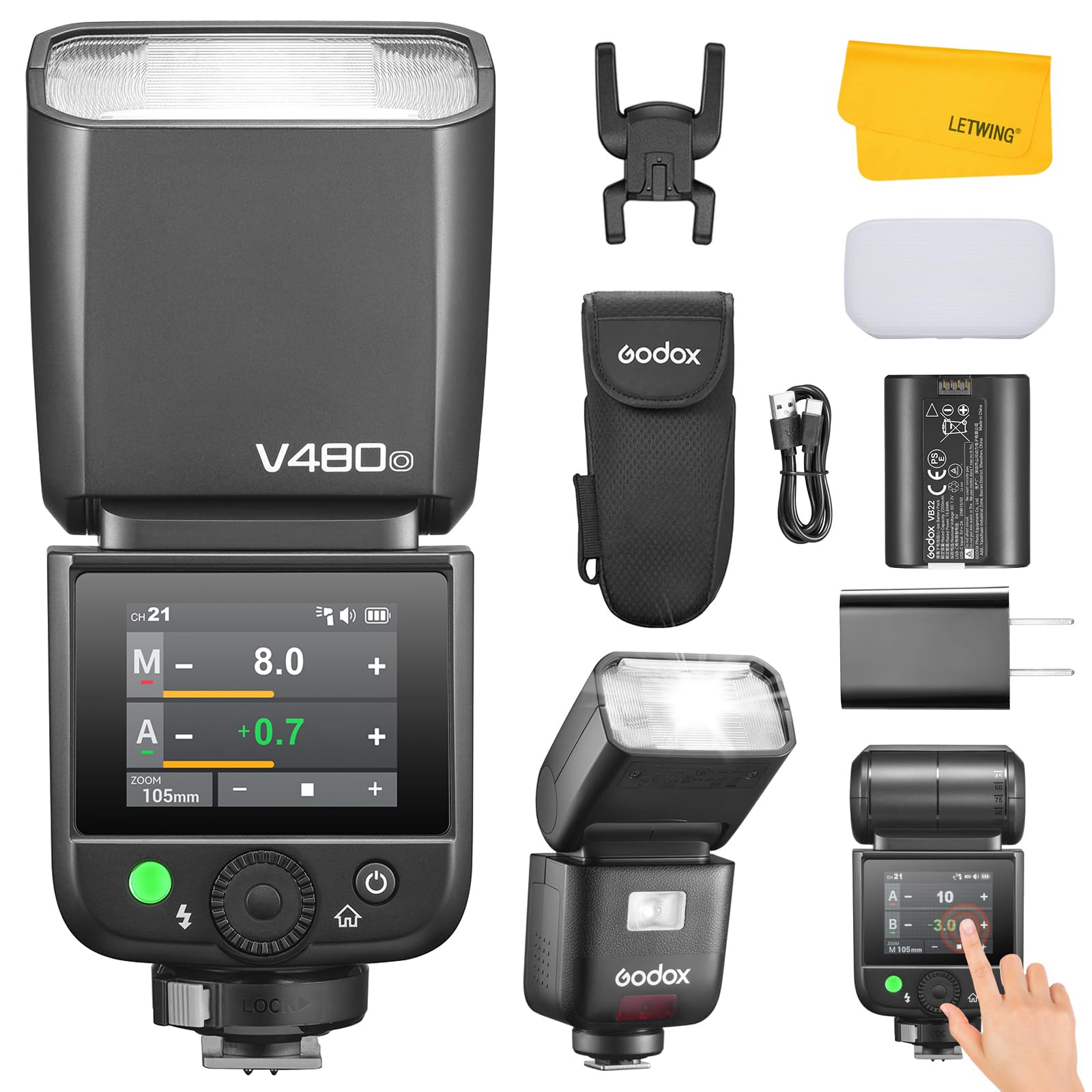

2. Chii chiri muBhokisi
Ndokumbira utarise kuti zvese zvinotevera zvinosanganisirwa mupasuru yako:
- 1x Godox V480O Olympus Flash
- 1x Yekuchengetedza Bhegi
- 1x Diffuser
- Chigadziko Chidiki che1x
- 1x Lithium Battery (7.2V/2200mAh)
- 1x USB-C yekuchaja Cable
- 1x Charger Adapter
3. Chigadzirwa Pamusoroview
3.1 Mamiriro Akakosha
- TTL Auto Flash: Automatic flash exposure for optimal results in various lighting conditions.
- 2.4G Wireless X System: Built-in sender and receiver functionality for versatile off-camera lighting.
- High-Speed Sync (HSS): Flash synchronization up to 1/8000s, allowing for wider apertures in bright light.
- Intuitive 2.0" Color Touchscreen: Easy navigation and precise adjustment of flash parameters.
- Smart Distance Readout: Real-time display of effective flash range.
- 10-Level LED Modeling Lamp: 2W LED light (5300K±300) with adjustable brightness for previewing light effects or as a fill light.
- High Capacity Li-ion Battery: Provides up to 650 full-power flashes with a 1.7s recycle time.
- Flexible Bounce Head: Tilts from -7° to 120° and swivels a full 330° for precise bounce angles.
- Yakareruka uye Inotakurika: Weighs approximately 361g (with battery) for easy transport.
3.2 Zvikamu
Familiarize yourself with the main components of your Godox V480O flash:
Mufananidzo 3.1: Mberi view of the V480O flash, highlighting the touchscreen interface.

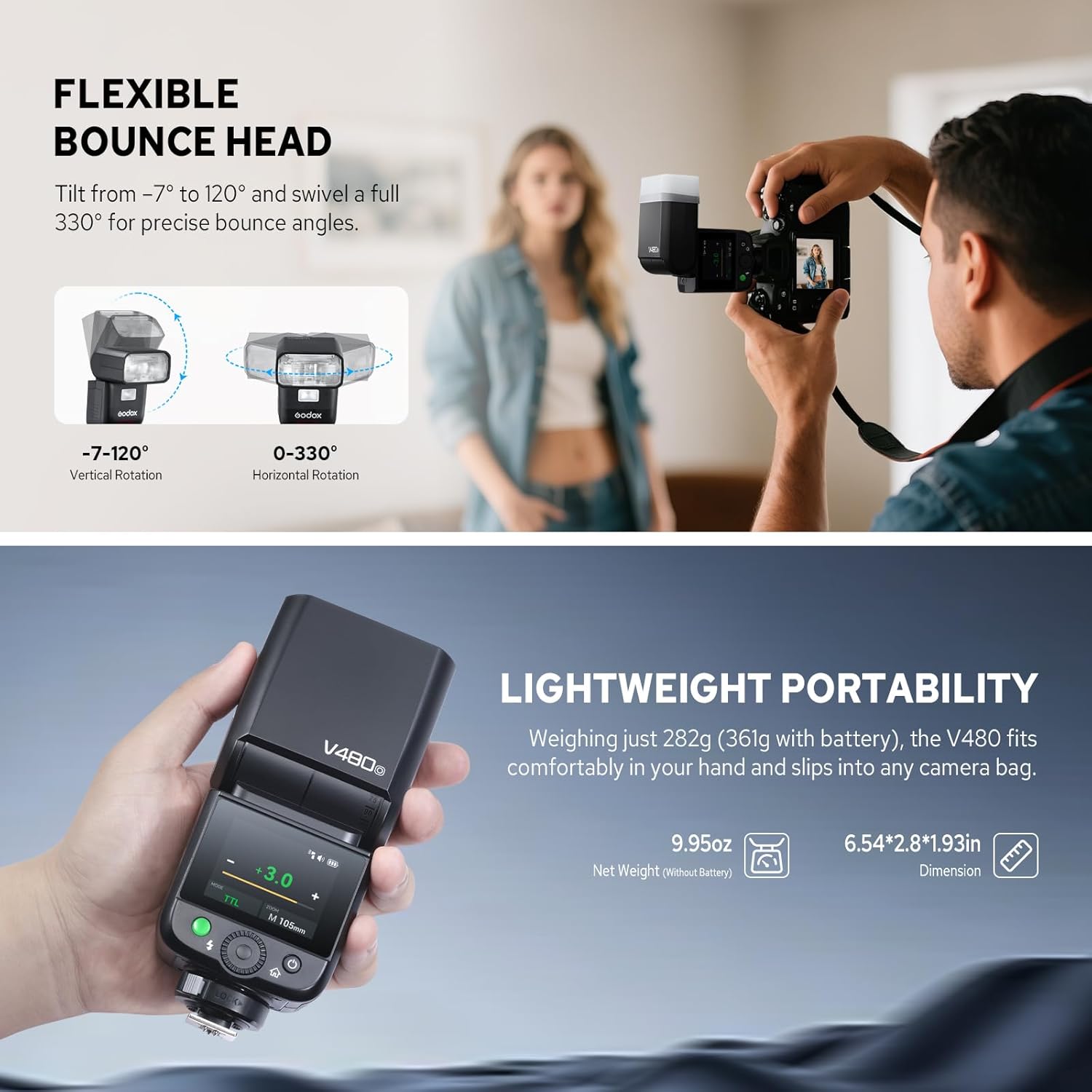

Figure 3.2: The flexible bounce head and compact design of the V480O.
4. Setup
4.1 Kuiswa kwebhatiri uye kuchaja
- Insert the provided 7.2V/2200mAh lithium battery into the battery compartment located on the side of the flash unit. Ensure it clicks securely into place.
- To charge the battery, connect the USB-C charging cable to the flash unit and a power source using the included charger adapter. The flash supports USB-C charging for convenience.
Figure 4.1: The V480O Li-ion battery and USB-C charging port.
4.2 Kuisa Flash
- Slide the flash's hotshoe onto your camera's hotshoe mount.
- Secure the flash by rotating the locking ring or lever on the flash unit until it is firmly attached to the camera.
- For off-camera use, attach the flash to the included mini stand or a compatible light stand.
5. Operating Instructions
5.1 Power On/Off and Touchscreen Navigation
- Dzvanya wobata bhatani rekudzima kana kubatidza flash.
- Use the 2.0-inch color touchscreen to navigate menus and adjust settings. Tap, swipe, or use the tactile buttons for precise control.
5.2 Flash Modes
The V480O supports various flash modes:
- TTL Modhi: (Through-The-Lens) Automatically adjusts flash output for correct exposure.
- Maitiro Ekushandisa Nemaoko (M): Inobvumira kudzora nemaoko pamusoro pemagetsi anobuda neflash.
- Mamiriro Akawanda: Fires a series of rapid flashes for creative motion effects.
- High-Speed Sync (HSS): Enables flash use at shutter speeds faster than your camera's native sync speed (up to 1/8000s).
- Front/Rear-Curtain Sync: Synchronizes the flash with the beginning or end of the shutter curtain movement for dynamic effects.
Figure 5.1: The V480O supports TTL Auto Flash, Manual Zoom, and Exposure Compensation.
Figure 5.2: High-Speed Sync (HSS) allows for flash photography at fast shutter speeds.
Sisitimu ye5.3 2.4G isina waya X
The V480O can function as both a sender and receiver within the Godox 2.4G X wireless system. This allows for multi-flash setups without external triggers.
- Zvikwata: Supports 5 groups (M, A, B, C, D).
- Zviteshi: Offers 32 channels (CH1-CH32).
- ID: Adjustable ID settings (OFF/01-99).
- Chinhambwe chekufambisa: Approximately 100m / 328ft.
Figure 5.3: Diagram illustrating the Godox 2.4G X wireless system with the V480O.
5.4 Smart Distance Readout
The V480O's display provides a real-time effective flash range, helping you determine if your subject is within optimal reach for proper exposure.
Figure 5.4: The smart distance readout feature on the V480O touchscreen.
5.5 10-Level LED Modeling Lamp
The integrated 2W LED modeling lamp assists in pre-visualizing light direction and intensity. It has 10 adjustable brightness levels and can also serve as a continuous fill light.
Figure 5.5: The V480O's 10-level LED modeling lamp mukushandiswa.
5.6 Creative Light Shapers
The V480O includes a built-in slide-out catchlight panel for adding sparkle to eyes and a snap-on wide-angle diffuser for broader, softer light coverage.
Figure 5.6: The V480O with its built-in catchlight panel and wide-angle diffuser.
6. Kuchengeta
6.1 Kuchenesa
Regularly clean the flash unit with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the screen or casing.
6.2 Kuchengeta
When not in use, store the Godox V480O flash in its provided storage bag to protect it from dust and scratches. Store in a cool, dry place away from direct sunlight.
6.3 Firmware Updates
The USB-C port on the V480O also supports firmware updates. Check the official Godox website periodically for the latest firmware versions to ensure optimal performance and access to new features.
7. Kugadzirisa matambudziko
If you encounter issues with your Godox V480O flash, please refer to the following common troubleshooting steps:
- Flash haisi kupfura: Ensure the battery is charged and correctly installed. Check the flash mode and camera settings. Verify wireless connection if using off-camera.
- Kuonekwa zvisiri izvo: Adjust flash exposure compensation (FEC) in TTL mode or manual power output in M mode. Check camera ISO, aperture, and shutter speed settings.
- Wireless yekubatanidza nyaya: Ensure both the flash and trigger (if applicable) are set to the same group, channel, and ID. Check for obstructions or excessive distance.
- Touchscreen haidaire: Try restarting the flash. Ensure the screen is clean and dry.
For more detailed troubleshooting or persistent issues, please contact Godox customer support or visit their official website.
8. Zvinotsanangurwa
| Feature | Tsanangudzo |
|---|---|
| Brand | GODOX |
| Model Number | V480O |
| Inowirirana Mounings | Olympus, Panasonic |
| Rudzi rweFlash yeKamera | Hotshoe |
| Flash Sync Speed | 1/8000s (HSS) |
| Bhatiri Type | 7.2V/2200mAh Li-ion Battery (included) |
| Yakazara Simba Inopenya | Approx. 650 |
| Dzokorora Nguva | Approx. 1.7s |
| Kuenzanisira Lamp | 2W LED (5300K±300), 10 Levels |
| Display | 2.0-inch Ruvara Chekubata Screen |
| Wireless System | Godox 2.4G X Wireless System |
| Transmission Range | Kusvika ku100m / 328ft |
| Item Weight | 1.45 pounds (approx. 658g) |
| Package Dimensions | 8.27 x 7.4 x 3.39 inches |
9. Official Product Video
Vhidhiyo 9.1: Kuperaview of the Godox V480 TTL Camera Flash Speedlite, showcasing its features and use in various photography scenarios.
10. Warranty uye Tsigiro
The Godox V480O TTL Li-ion Camera Flash is covered by a manufacturer's warranty. For specific warranty terms, registration, and support, please refer to the warranty card included in your product packaging or visit the official Godox website. You can also find additional resources, FAQs, and contact information for customer service there.
Godox Yepamutemo Websaiti: www.godox.com
