GGM Gastro DGSHB24 Food Dehydrator Instruction Manual

1. Nhanganyaya

Thank you for choosing the GGM Gastro DGSHB24 automatic food dehydrator. This appliance is designed to efficiently dry various food items, including fruits, vegetables, and meats, preserving their nutrients and extending their shelf life. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your dehydrator. Please read it thoroughly before first use and keep it for future reference.

GGM Gastro DGSHB24 Food Dehydrator with door open and trays filled with various foods like fruits and vegetables.

The GGM Gastro DGSHB24 Food Dehydrator, shown with its door open and trays filled, ready for operation.

Assortment of dried foods including fruits, vegetables, spices, and meats, demonstrating the versatility of a food dehydrator.

Examples of various foods that can be dried using the dehydrator, including fruits, vegetables, and meats.

2. Mirayiridzo Yekuchengetedza

To prevent injury or damage, always observe basic safety precautions when using electrical appliances. Failure to follow these instructions may result in electric shock, fire, or serious injury.

Verenga mirairo yese usati washandisa mudziyo.
Iva nechokwadi chekuti voltage yakaratidza pane chishandiso chinoenderana neyako mains ma voltage pamberi pekubatanidza.
Usanyudze mudziyo, tambo, kana plug mumvura kana chero imwe mvura.
Chengeta mudziyo uyu kure nevana nezvipfuyo. Kutarisirwa kwakasimba kunodiwa kana mudziyo uyu uchishandiswa pedyo nevana.
Unplug the dehydrator from the outlet when not in use, before cleaning, or before moving.
Usashandise chero mudziyo uine tambo yakakuvadzwa kana plug, kana mushure mekunge mudziyo watadza kushanda kana wakakuvadzwa chero nzira.
Place the appliance on a stable, heat-resistant, and dry surface, away from walls or other appliances to ensure proper ventilation.
Usavhare maburi emhepo panguva yekushanda.
Shandisa zvinhu zvinokurudzirwa chete nemugadziri.
Ichi chishandiso chakaitirwa imba uye zvakafanana kunyorera.

3. Chigadzirwa Pamusoroview

The GGM Gastro DGSHB24 is a robust food dehydrator designed for efficient and consistent drying. It features a durable black exterior and high-quality stainless steel trays.

Zvikamu Zvikuru:

Control Panel: Digital display with intuitive controls for timer and temperature settings.
Matireyi Ekuomesa: 24 removable stainless steel trays for food placement.
Drip Tray: A dedicated tray to collect any moisture or residue.
Door: Gonhi rinoonekera rekutarisa maitikiro ekuomesa.
Ventilation System: Rear-mounted fans for even air circulation.

Angled kumberi view of the GGM Gastro DGSHB24 Food Dehydrator with its door closed, showcasing dhizaini yaro inotsvedza.

Angled view of the DGSHB24 dehydrator with the door closed.

Mberi view of the GGM Gastro DGSHB24 Food Dehydrator with its door closed, highlighting the control panel and transparent door.

Mberi view of the DGSHB24 dehydrator with the door closed, showing the control panel.

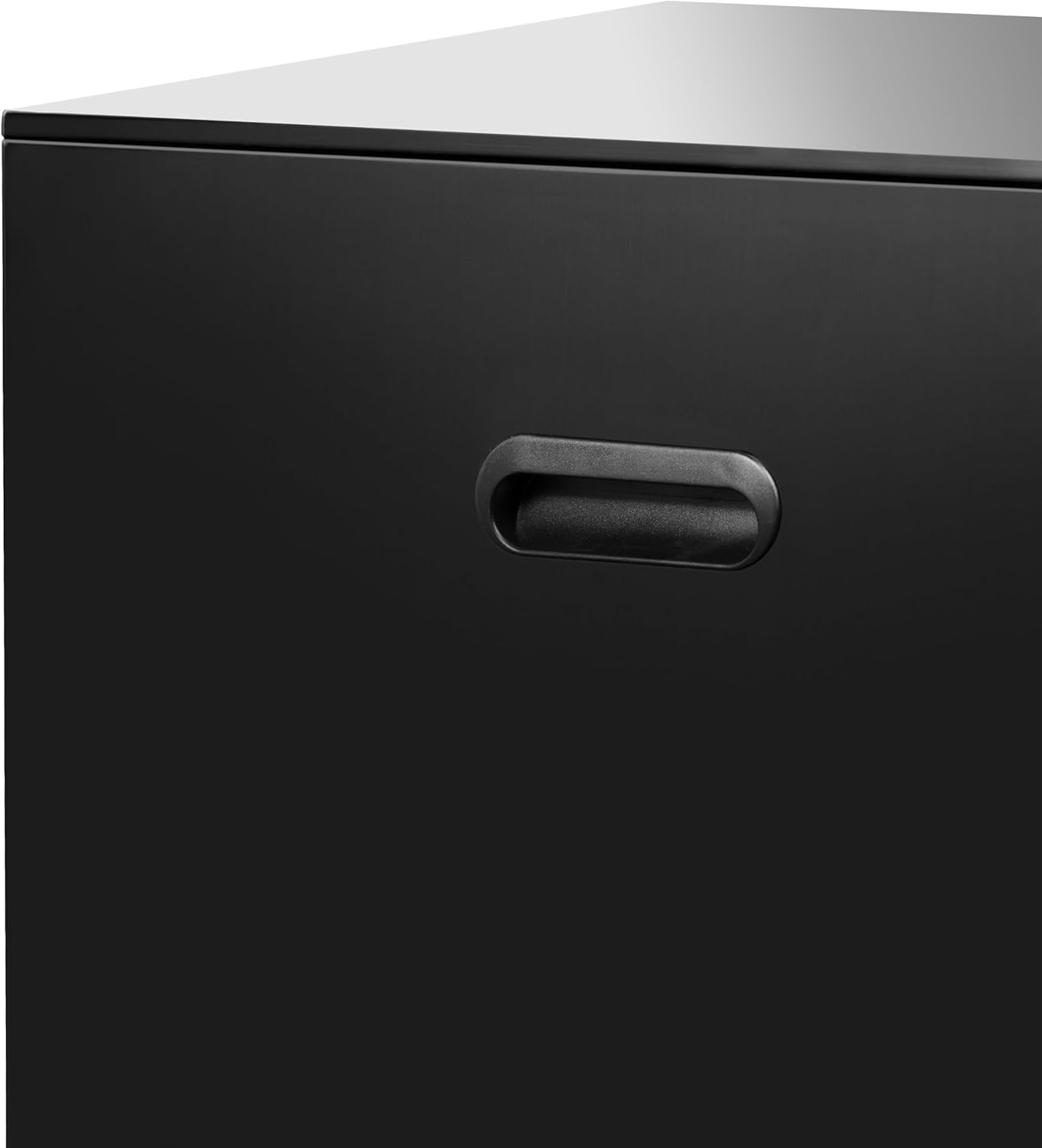

Pedyo-up view of the handle on the GGM Gastro DGSHB24 Food Dehydrator door.

Detail of the door handle on the DGSHB24.

Pedyo-up view of the door hinge on the GGM Gastro DGSHB24 Food Dehydrator, showing its robust construction.

Detail of the door hinge, indicating sturdy construction.

Rear view of the GGM Gastro DGSHB24 Food Dehydrator, showing the ventilation fans and power input.

Rear view of the DGSHB24, highlighting the ventilation system.

4. Setup uye Kutanga Kushandisa

Kuburitsa: Carefully remove the dehydrator and all its components from the packaging. Retain packaging for future storage or transport.
Kuongorora: Check the appliance for any signs of damage. If damaged, do not operate and contact customer support.
Kuchenesa: Before first use, wash all 24 drying trays and the drip tray with warm, soapy water. Rinse thoroughly and dry completely. Wipe the interior and exterior of the dehydrator with a damp jira.
Kuiswa: Place the dehydrator on a flat, stable, heat-resistant surface. Ensure there is adequate space around the unit (at least 15 cm / 6 inches) for proper air circulation, especially around the rear ventilation area.
Power Connection: Ensure the power switch is in the "OFF" position before plugging the unit into a grounded electrical outlet (230 V / 1 N/PE / 50 Hz).

5. Operating Instructions

Follow these steps to operate your GGM Gastro DGSHB24 food dehydrator:

Gadzira Chikafu: Wash, peel, and slice your desired food items (fruits, vegetables, meats) to a uniform thickness for even drying.
Matrei Ekutakura: Arrange the prepared food in a single layer on the stainless steel drying trays. Do not overlap food items to allow for optimal air circulation. Insert the loaded trays into the dehydrator. Place the drip tray at the bottom.
Close Door: Securely close the dehydrator door.
Power On: Plug the unit into the power outlet and press the power button on the control panel. The digital display will illuminate.
Seta Nguva: Use the timer controls to set the desired drying duration. The timer is adjustable from 0 to 24 hours.
Seta Tembiricha: Use the temperature controls to set the desired drying temperature.
Tanga Kushaya Mvura Mumuviri: Press the start button to begin the drying process. The dehydrator will operate until the timer counts down to zero.
Tarisa mafambiro Periodically check the food's dryness. You may need to rotate trays or rearrange food for more even drying.
Kupedzisa: Once the food is dried to your satisfaction, turn off the dehydrator, unplug it, and carefully remove the trays. Allow food to cool completely before storing.

GGM Gastro DGSHB24 Food Dehydrator with its door open, showing 24 trays filled with sliced fruits and vegetables.

The dehydrator with its door open, demonstrating how to load the 24 trays with food.

GGM Gastro DGSHB24 Food Dehydrator with its door open, showing 24 trays filled with sliced fruits and vegetables, from a slightly different angle.

Imwe view of the dehydrator with trays loaded, ready for the drying process.

Mberi view of the GGM Gastro DGSHB24 Food Dehydrator with its door closed, showing the digital display and trays filled with food.

The dehydrator in operation, with the door closed and food visible through the transparent panel.

6. Kuchengetedza uye Kuchenesa

Regular cleaning and maintenance will ensure the longevity and optimal performance of your dehydrator.

Nguva dzose Unplug: Before cleaning, always ensure the dehydrator is unplugged from the power outlet and has cooled down completely.
Clean Trays and Drip Tray: Remove all 24 drying trays and the drip tray. Wash them with warm, soapy water. For stubborn residue, soak them for a few minutes before scrubbing. Rinse thoroughly and dry completely before reinserting.
Yakachena Mukati: Wipe the interior surfaces of the dehydrator with a damp jira. Kuti uwane zvinonamira, shandisa sipo yakapfava, wobva wapukuta nejira rakachena.amp jira rekubvisa chero zvasara zvesipo. Iva nechokwadi chekuti mukati mayo maoma zvachose usati washandisa zvakare.
Chenesa Kunze: Pukuta kunze kwemudziyo nekanyoro, damp jira. Usashandise abrasive cleaners kana scouring pads, sezvo anogona kukanganisa kupera.
Usanyudza: Never immerse the main unit of the dehydrator in water or any other liquid.
Kuchengeta: If storing the dehydrator for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging.

7. Kugadzirisa matambudziko

If you encounter any issues with your GGM Gastro DGSHB24 dehydrator, refer to the following common problems and solutions:

Dambudziko	Zvinogona Kukonzera	Solution
Dehydrator haibati.	Haina kubaiwa nemazvo. Kusashanda zvakanaka kwemagetsi. Switch yemagetsi yadzimwa.	Ita shuwa kuti tambo yemagetsi yakanamirwa zvakachengetedzeka muchinhu chinoshanda. Edza nzvimbo yacho nechimwe chigadzirwa. Dzvanya switch yemagetsi panzvimbo yekuti "ON".
Food is not drying evenly or taking too long.	Food slices are too thick or uneven. Trays are overloaded. Musuwo hauna kuvharwa mushe. Incorrect temperature or timer setting.	Slice food to a uniform thickness. Do not overload trays; ensure a single layer with space for air circulation. Ensure the door is securely closed. Verify that the timer and temperature settings are appropriate for the food being dried.
Ruzha rusina kujairika panguva yekushanda.	Appliance kwete panzvimbo yakagadzikana. Obstruction in the fan area.	Isa dehydrator panzvimbo yakadzikama, yakagadzikana. Unplug the unit and check for any foreign objects near the fan vents (rear of the unit).

If the problem persists after trying these solutions, please contact GGM Gastro customer support for assistance.

8. Zvinotsanangurwa

Feature	Detail
Brand	GGM Gastro
Model	DGSHB24
Color	Nhema
Zviyero zveChigadzirwa (L x W x H)	60 masendimita x 47 masendimita x 88.3 masendimita
Nhamba yeTreyi	24
Tray Dimensions	300 mm x 280 mm
Drip Tray Dimensions	250 mm x 250 mm
Material	High-quality stainless steel (trays)
Simba	2 kW
Kubatana kweMagetsi	230 V / 1 N/PE / 50 Hz
Maximum Load Capacity	Kusvika ku8 kg
Timer Range	Maawa matanhatu kusvika masere
Certifications	CE Mark, Compliant with European food standards
