POWERPLUS POWDPG80510 Cordless Pruning Shears User Manual

1. Nhanganyaya

The POWERPLUS POWDPG80510 cordless pruning shears are designed for efficient and comfortable pruning of plant stems and branches up to 30 mm in diameter. This tool is part of the Dual Power series, offering a compact and lightweight solution for garden maintenance. This manual provides essential information for the safe and effective use, setup, and maintenance of your pruning shears.

Mufananidzo 1: Kupfuuraview of the POWERPLUS POWDPG80510 Cordless Pruning Shears with a battery attached.

2. Mirayiridzo Yekuchengetedza

Always observe basic safety precautions to reduce the risk of injury. Read all instructions carefully before operating the tool.

• Verenga Manual: Zijairirane nezvinodzora uye kushandisa kwakakodzera kwechishandiso.
• Pfeka Dziviriro: Always wear safety glasses, gloves, and appropriate clothing when operating the pruning shears.
• Chengeta Maoko Akajeka: Never place hands or fingers near the cutting blades during operation or when the tool is connected to a battery.
• Kuchengetedzwa kweBhatiri: Use only compatible 20V Dual Power batteries and chargers. Disconnect the battery before making any adjustments, changing accessories, or storing the tool.
• Secure Grip: Ramba wakabata chishandiso zvakasimba panguva yekushanda.
• Nzvimbo yebasa: Ensure your work area is well-lit and free from obstructions. Keep bystanders, especially children, away from the operating area.
• Kuchengeta: Store the tool in a dry, secure place, out of reach of children. Always use the blade protector when storing.

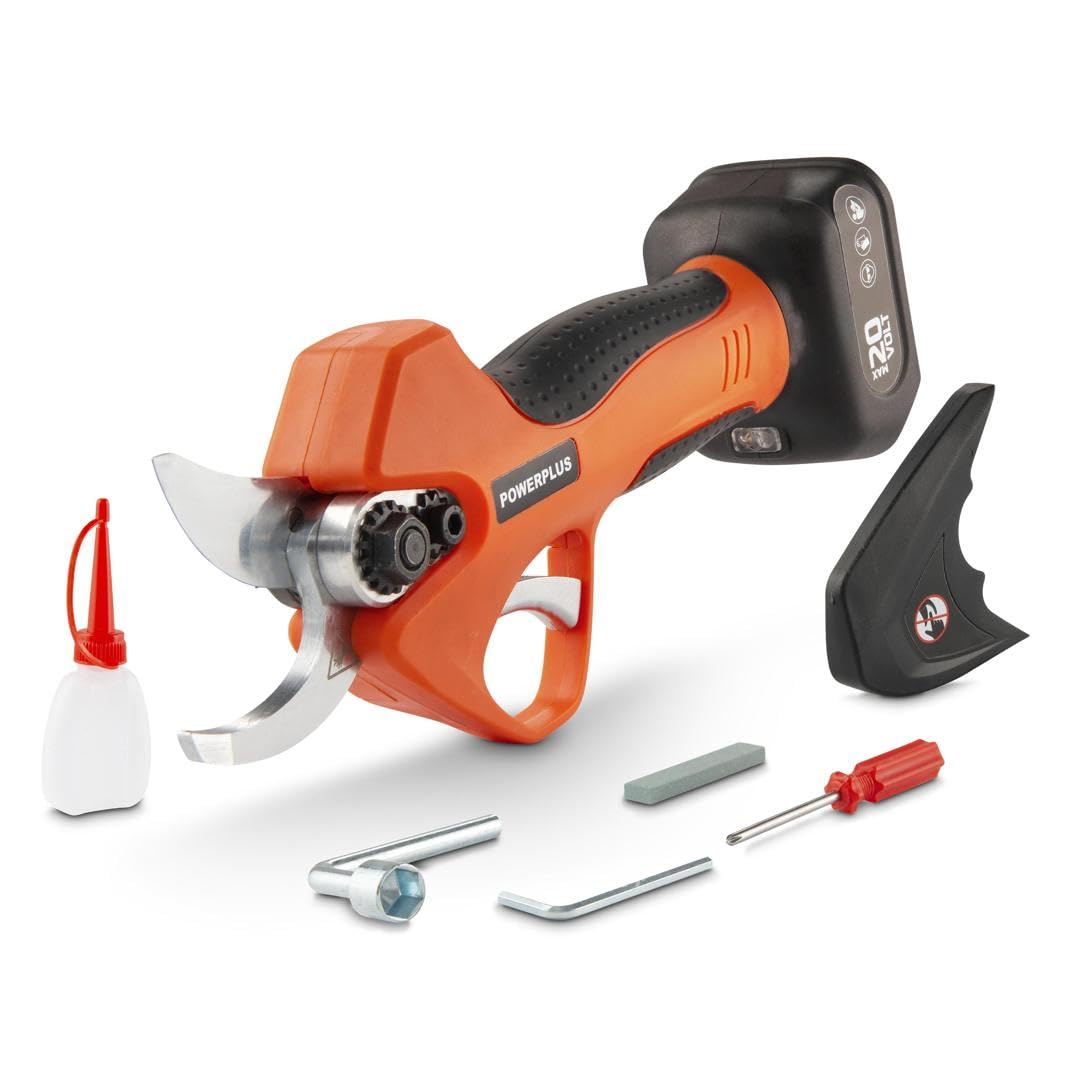

3. Package Zviri mukati

Carefully unpack the box and ensure all items are present and undamaged. If any parts are missing or damaged, contact your retailer.

• 1x Cordless Pruning Shears (POWDPG80510)
• 1x Blade Protector
• 1x Grinding Stone
• 1x Empty Oil Bottle (10ml)
• 1x Screwdriver
• 1x Hex kiyi
• 1x L-Key
• 1x Chinyorwa Chekuraira

Cherechedza: Bhatiri nechaja hazvina kubatanidzwa uye zvinofanirwa kutengwa zvakasiyana.

4. Zvigadzirwa zveChigadzirwa

Familiarize yourself with the different parts of your pruning shears for safe and effective operation.

Mufananidzo 2: Rutivi view of the pruning shears, highlighting the handle, trigger, and blades.

• Kucheka Mashizha: Sharp blades for precise cutting.
• Trigger Switch: Activates the cutting mechanism.
• Batanidza/Kudzima: Powers the tool on and off.
• Battery Port: Where the 20V Dual Power battery connects.
• Ergonomic Handle: Designed for comfortable single-hand operation.

Figure 3: The pruning shears with the blade protector installed for safe storage.

5. Setup

5.1 Kuiswa kwebhatiri

1. Ensure the pruning shears are switched off.
2. Align the battery with the battery port on the bottom of the tool.
3. Svetedza bhatiri muchiteshi kusvika radzvanya zvakachengetedzeka panzvimbo.
4. Kuti ubvise bhatiri, tinya bhatani rekuburitsa (kana riripo) uye tsvedza bhatiri panze.

5.2 Kuongorora Kwekutanga

• Before each use, inspect the blades for any damage or dullness.
• Ita shuwa kuti ese screws uye fasteners zvakasimba.
• Verify that the safety mechanism operates correctly.

6. Kushanda

6.1 Activating the Pruning Shears

The pruning shears feature a safety mechanism to prevent accidental activation:

1. Press and hold the On/Off button for one second. The tool will enter standby mode.
2. Quickly press the trigger switch twice to unlock the blades. The blades will open, indicating the tool is ready for use.

6.2 Maitiro ekuchekerera

• Isa bazi kuti richekwe pakati pemashizha akavhurika.
• Press the trigger switch to close the blades and make the cut.
• Bvisa chitokisi kuti uvhure mapanga ekucheka kunotevera.
• Avoid forcing the blades through branches thicker than 30 mm.

Figure 4: Proper use of the pruning shears for cutting branches.

6.3 Deactivating the Pruning Shears

To turn off the tool, press and hold the On/Off button until the indicator lights turn off. Always engage the blade protector when not in use.

7. Kuchengeta

Regular maintenance ensures the longevity and optimal performance of your pruning shears.

7.1 Kuchenesa

• Bvisa bhatiri usati wachenesa.
• Wipe the blades and housing with a clean, damp jira mushure mekushandisa kwega kwega.
• Remove any sap or debris from the blades to prevent corrosion and ensure smooth operation.

7.2 Kurodza kweblade

Dull blades can reduce cutting efficiency and strain the motor. Use the provided grinding stone to sharpen the blades as needed. Follow the original blade angle for best results.

7.3 Kuzora mafuta

Apply a few drops of machine oil (not included, use the provided empty bottle for storage) to the pivot points and blades regularly to ensure smooth movement and prevent rust.

7.4 Kuchengeta

When not in use, always attach the blade protector to cover the cutting blades. Store the tool in a dry, secure location, away from direct sunlight and extreme temperatures.

8. Kugadzirisa matambudziko

If you encounter issues with your pruning shears, refer to the following common problems and solutions:

Kana dambudziko rikaramba riripo mushure mekuedza mhinduro idzi, taura nerutsigiro rwevatengi.

9. Zvinotsanangurwa

10. Warranty uye Tsigiro

This POWERPLUS product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official POWERPLUS websaiti kune yakadzama waranti mazwi uye mamiriro.

For technical assistance, spare parts, or any questions regarding your POWDPG80510 pruning shears, please contact POWERPLUS customer support through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
