1. Nhanganyaya
The GardePro E8 2.0 WiFi Trail Camera is designed for capturing high-quality images and videos of wildlife or for property surveillance. It features 4K Ultra HD video recording, 64MP photo resolution, and no-glow infrared night vision. The camera incorporates innovative low-power WiFi and Bluetooth connectivity, allowing for convenient control and media access via the GardePro Mobile App on your smartphone. Its dual-antenna design enhances WiFi stability and range, making it suitable for various outdoor environments.
Vhidhiyo 1.1: GardePro E8 2.0 Series Product Introduction. This video provides a general overview of the camera's features and design.
2. Package Zviri mukati
Ona kuti zvinhu zvese zviripo mupasuru yako:

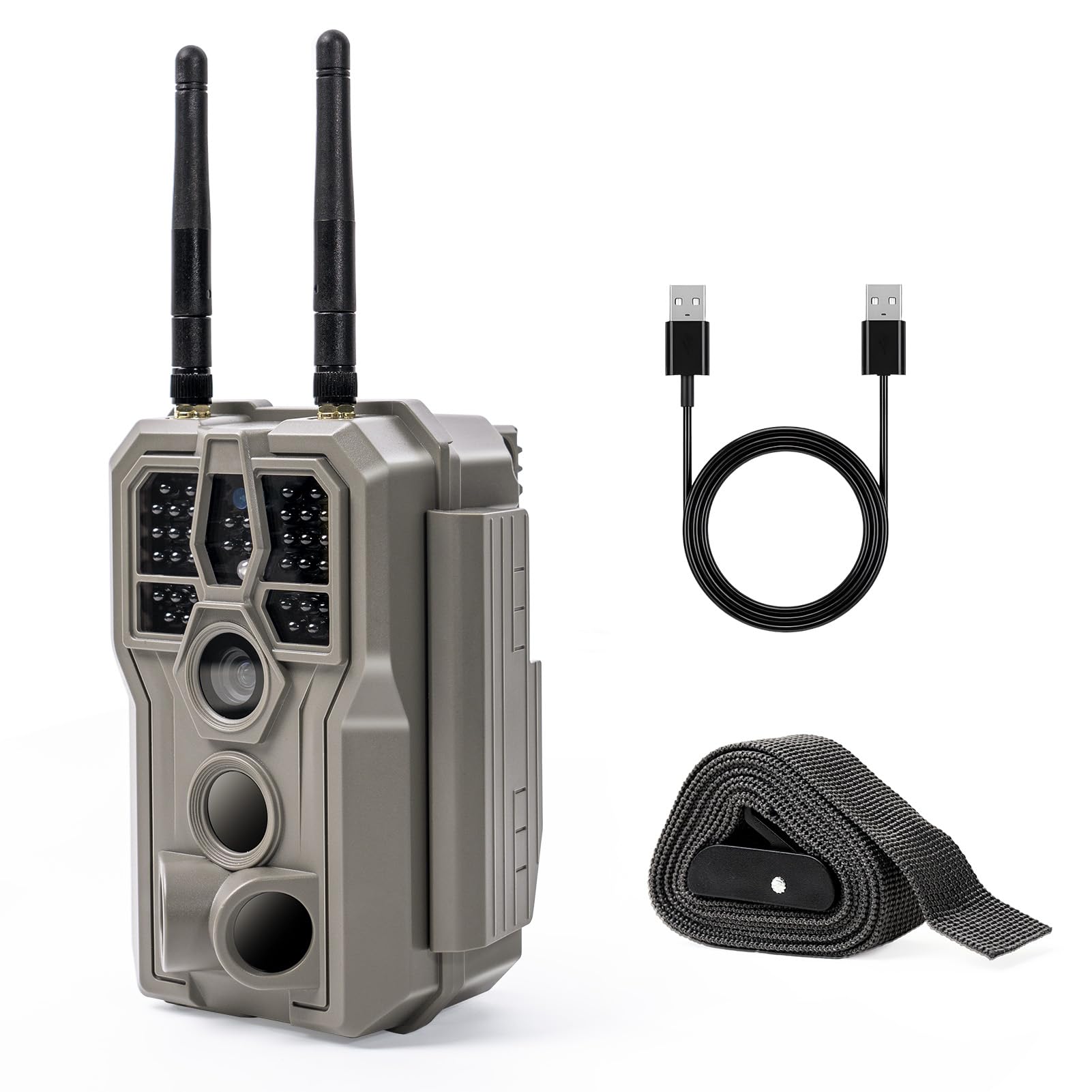

- 1 x GardePro E8 2.0 Trail Camera
- 2 x Antennas
- 1 x Bhuku reMirayiridzo
- 1 x Kukwidza Tambo
Cherechedza: 8 AA batteries and an SDHC/SDXC memory card (up to 512GB) are required for operation and are not included. The GardePro SP350 solar panel is sold separately.
3. Kamera Pamusoroview
Familiarize yourself with the main components of your GardePro E8 2.0 camera.
Mufananidzo 3.1: Mberi view of the GardePro E8 2.0 camera, highlighting the main lens, motion sensors, and dual antennas for enhanced connectivity.
Mufananidzo 3.2: Internal view of the camera, displaying the LCD screen, navigation buttons (MENU, OK, directional arrows), and the ON/OFF/START switch. The SD card slot and USB port are also visible.
4. Setup
4.1 Kuisa Kamera Pamagetsi
The GardePro E8 2.0 can be powered by 8 AA batteries (not included) or an optional GardePro SP350 solar panel (sold separately). The E8 2.0 Pro variant includes a built-in 7800mAh rechargeable battery.
- AA mabhatiri: Insert 8 new AA batteries into the battery compartment, ensuring correct polarity.
- Rechargeable Battery (E8 2.0 Pro only): The built-in battery can be charged via a USB-C cable.
- Panera rezuva (Sarudzo): Connect the GardePro SP350 solar panel to the camera's external power port for continuous charging and extended outdoor use.
Mufananidzo 4.1: Illustration of battery installation and optional solar panel connection for continuous power.
4.2 SD Kadhi Kuiswa
A full-size SDHC/SDXC memory card (up to 512GB) is required to store photos and videos. Insert the SD card into the designated slot with the metal contacts facing the correct direction, as indicated on the camera.
4.3 Kuisa kamera
Use the included mounting strap to secure the camera to a tree or post. The camera also features dual copper mounting posts for tripod or wall compatibility, offering flexible installation options. Ensure the camera is positioned to capture the desired area, avoiding obstructions.
Mufananidzo 4.2: The GardePro E8 2.0 camera securely mounted to a tree using the provided strap, ready for outdoor use.
5. Kushandisa Kamera
5.1 Simba On / Off uye Mode Sarudzo
Locate the ON/OFF/START switch inside the camera. Switch it to 'ON' to activate the camera. The camera will enter setup mode, allowing you to adjust settings. To begin recording, switch to 'START'.
5.2 Kubatanidza uye Kudzora App
The GardePro E8 2.0 connects directly to your smartphone via Bluetooth for initial pairing, then uses the camera's built-in WiFi for data transfer and live view. Download the free GardePro Mobile App from your device's app store.
- Kubatanidza: Enable Bluetooth on your smartphone and open the GardePro Mobile App. Follow the in-app instructions to connect to your camera.
- WiFi Range: The dual antennas provide a connection range of up to 165 ft (50 m) in open conditions. Physical obstructions may reduce this range.
- Kushanda Iyo app inobvumidza iwe kuti view and download original photos and videos, adjust camera settings, and use the Live View feature.
Chiziviso Chakakosha: The E8 2.0 does not connect to home WiFi routers or cellular networks. It supports direct connection to a smartphone only. PCs, laptops, and web browsers are not supported for WiFi connection.
Mufananidzo 5.1: The GardePro Mobile App interface, showing options for live view, status, and gallery access, enabling remote control and media management.
5.3 Rarama View for Real-Time Observation
Utilize the Live View function in the GardePro Mobile App to see what the camera is capturing in real-time. This is useful for precise camera aiming during installation and for observing wildlife without disturbance from a distance of up to 165 ft in open areas.
Mufananidzo 5.2: A user monitoring the camera's live feed on a smartphone, demonstrating the long-range WiFi connectivity for remote observation.
5.4 Kurekodha Modes
The camera supports multiple recording modes:
- Motion Mode: Captures photos or videos when motion is detected by the PIR sensors.
- Nguva-Yekupfuura Modhi: Takes photos at set intervals, regardless of motion.
- Hybrid Mode: Combines motion-triggered events with time-lapse photography.
5.5 Image and Video Quality
The E8 2.0 captures 4K Ultra HD videos and 64MP still images, providing clear and detailed footage. The 0.1s fast trigger speed and 120° wide PIR detection angle ensure that fast-moving subjects are captured effectively.
Mufananidzo 5.3: Example of 4K Ultra HD video quality, showcasing a fox in clear detail during daytime.
5.6 No-Glow IR Night Vision
Equipped with invisible 940nm no-glow infrared LEDs, the camera delivers clear night images and videos without emitting visible light, preventing animals from being startled and ensuring discreet surveillance.
Mufananidzo 5.4: Night vision footage of a raccoon, demonstrating the effectiveness of the 940nm no-glow infrared technology for clear, discreet nighttime recording.
6. Kuchengeta
6.1 Battery Management
Regularly check battery levels, especially if not using a solar panel. Replace AA batteries when low. For the E8 2.0 Pro, ensure the rechargeable battery is fully charged before deployment for optimal performance.
6.2 Kudzivirirwa Kwemamiriro ekunze
The GardePro E8 2.0 camera is IP66 rated, providing protection against dust and strong jets of water. This ensures reliable operation in various weather conditions, including rain and snow. However, avoid submerging the camera in water.
Mufananidzo 6.1: The camera operating in rainy conditions, illustrating its robust IP66 waterproof design for outdoor durability.
7. Kugadzirisa matambudziko
- Kamera haisi kubatika: Check if batteries are inserted correctly and fully charged. For E8 2.0 Pro, ensure the internal battery is charged.
- WiFi yekubatanidza nyaya: Ensure your smartphone is within 165 ft (50 m) of the camera in open conditions. Avoid physical obstructions like thick walls or dense foliage. Remember, it connects directly to your smartphone, not home WiFi.
- Hunhu husina kunaka hwemufananidzo/vhidhiyo: Check the lens for dirt or condensation. Ensure the camera is stable and not subject to excessive movement. Verify settings in the app for desired resolution.
- Kamera haisi kurekodha: Ensure an SD card is inserted and has sufficient free space. Check if the camera is in 'START' mode and not in standby after app use. Format the SD card if issues persist.
- Upfupi bhatiri hupenyu: Use high-quality AA batteries. Consider using the GardePro SP350 solar panel for extended operation. Reduce video length or frequency of captures if possible.
8. Zvinotsanangurwa
| Feature | Tsanangudzo |
|---|---|
| Model Name | E8 2.0 |
| Inoshanda Zvakadaro Resolution | 64 MP |
| Vhidhiyo Capture Resolution | 4K |
| Kubatana Technology | Wireless (Bluetooth, Wi-Fi) |
| Kubatana Protocol | Makaralı, Wi-Fi |
| Simba Source | Battery Powered (8xAA, or 7800mAh rechargeable for Pro model) |
| Flash Memory Inotsigirwa Size Maximum | 512 GB (SDHC/SDXC) |
| Night Vision Range | 100 Tsoka |
| Viewing Angle | 70 madhigirii |
| rukungiso Speed | 0.1s |
| PIR Kutsvaga Angle | 120° |
| International Protection Rating | IP66 |
| Zviyero zveChigadzirwa (L x W x H) | 4.2 x 2.9 x 5.6 inches |
| Item Weight | 1.3 makirogiramu |
9. Warranty uye Tsigiro
For warranty information, technical support, or any inquiries regarding your GardePro E8 2.0 WiFi Trail Camera, please refer to the official GardePro websaiti kana kubata basa ravo revatengi zvakananga. Chengeta risiti yako yekutenga yezvichemo zvewaranti.
