Nhanganyaya
This manual provides detailed instructions for the Electrolux Top-Load Washing Machine 600 SensiCare 6 kg, model EW6T426A. It covers essential information regarding the safe and efficient use of your appliance, including installation, operation, maintenance, and troubleshooting. Please read this manual thoroughly before using the washing machine and keep it for future reference.
The Electrolux 600 SensiCare washing machine is designed to offer optimal laundry care with features like the SensiCare System, Eco Time Manager, Steam Anti-Allergy program, and Soft Opening for user convenience.
Safety Information
Before installation and use, carefully read the supplied instructions. The manufacturer is not responsible for any injury or damage resulting from incorrect installation or use. Always keep the instructions in a safe and accessible location for future reference.
General Safety
- Mudziyo uyu unogona kushandiswa nevana vane makore masere zvichikwira uye vanhu vane simba rakadzikira mumuviri, pfungwa kana pfungwa kana kushaya ruzivo neruzivo kana vakatariswa kana kurairwa nezvekushandisa mudziyo nenzira isina njodzi uye vanonzwisisa njodzi dziripo. .
- Vana vanofanira kutariswa kuti vaone kuti havasi kutamba nemudziyo wacho.
- Kucheneswa nekuchengetedzwa kwevashandisi hakuitwe nevana pasina vatariri.
- Ramba uchirongedza zvinhu zviri kure nevana.
- Keep pets and children away from the appliance when it is operating or when the door is open.
Setup uye Installation
Proper installation is crucial for the safe and efficient operation of your washing machine. It is recommended that installation be performed by a qualified technician.
Kuburitsa
- Remove all packaging materials and transport bolts before using the appliance. Failure to do so can cause serious damage to the appliance and property.
- Keep all packaging materials in a safe place for future transport.
Positioning
- Install the appliance on a firm, flat floor. Ensure there is adequate space around the machine for ventilation and access.
- Do not install the appliance behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the washing machine, in such a way that a full opening of the washing machine door is restricted.
Kubatanidza Mvura
- Batanidza pombi yemvura inopinza papombi yemvura inotonhora ine shinda ye3/4" Iva nechokwadi chekuti majoini ese akasimba kudzivirira kudonha.
- The drain hose must be correctly positioned to prevent water from flowing back into the machine.
Kubatana kweMagetsi
- Ita shuwa kuti magetsi emagetsi awandatage and frequency match the ratings on the appliance's rating plate.
- The appliance must be earthed. Use a properly installed shock-proof socket.
Operating Instruction
Familiarize yourself with the control panel and various functions to achieve optimal washing results.
Image: Control panel of the Electrolux Top-Load Washing Machine, showing program selector, display, and function buttons.
Loading Laundry with Soft Opening
The Soft Opening system allows for easy and safe loading and unloading of laundry. Press the button to open the lid, and the internal drum will open gradually for convenient access.
- Ensure the drum is empty before loading.
- Distribute laundry evenly inside the drum.
- Close the lid securely before starting a cycle.
Using the SensiCare System
The SensiCare System automatically adjusts the washing cycle based on the load size using specialized sensors. This optimizes water, energy, and time consumption, providing gentle and sustainable washing even for smaller loads.
- Load your laundry.
- Sarudza purogiramu yaunoda.
- The machine will detect the load and adjust settings automatically.
Program Selection and Options
Turn the program selector knob to choose from various washing programs such as Cotton, Synthetics, Delicates, Wool, Anti-Allergy Vapour, and more. The touch display allows for further customization.
- Eco Time Manager: Select this function on the control panel to reduce the cycle duration by up to four times, without compromising washing results.
- Steam Anti-Allergy Program: This program combines a wash cycle with steam to remove over 99.99% of bacteria and viruses* at temperatures above 60°C. It also reduces pollen and allergens for hygienically clean clothes. (*Tested for staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external tests by Swissatest Testmaterialien AG in 2021.)
- Plus Soft Option: During the penultimate rinse, this option saturates garments with water and evenly distributes fabric softener within the drum, ensuring softer and fresher clothes for longer.
- Kunonoka Kutanga: Set a delayed start time for your wash cycle.
- Tembiricha uye Spin Speed: Adjust these settings according to your fabric type and desired care.
Image: A stack of clean laundry next to a clock and a piggy bank, illustrating the time and energy saving benefits of the SensiCare and Eco Time Manager features.
Maintenance
Kugara kugadziridza kunovimbisa hupenyu hurefu uye kuita kwakakwana kwemuchina wako wekugeza.
Kuchenesa Kunze
- Pukuta nzvimbo dzekunze nekanyoro, damp jira. Usashandise abrasive cleaners kana solvents.
Kuchenesa Detergent Dispenser
- Nguva nenguva bvisa uye uchenese dhirowa rekugezesa dhirowa kudzivirira zvakasara kuvaka. Rigeze pasi pemvura inoyerera.
Kuchenesa iyo Drain Sefa
- Regularly check and clean the drain filter to remove lint, coins, or other small objects that may obstruct drainage. Refer to the diagram in the specifications section for filter location.
Drum Cleaning
- Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) periodically to prevent odors and limescale buildup.
Kugadzirisa matambudziko
Before contacting service, refer to the following common issues and solutions.
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Machine haina kutanga | Power cord not plugged in; door not closed properly; program not selected; delay start active. | Check power connection; ensure door is fully closed; select a program and press start; check delay start setting. |
| Mvura isingazadzi | Pombi yemvura yakavharwa; inlet hose kinked; pressure yemvura yakanyanya kuderera. | Vhura pombi yemvura; ruramisa hose; tarisa kudzvinyirirwa kwemvura yemumba. |
| Mvura isina kupera | Dhiraivha hose kinked kana kuvharwa; drain filter yakavharwa. | Rongedza kana kuchenesa hose yemvura; yakachena drain sefa. |
| Kudengenyeka kwakanyanyisa/ruzha | Mabhaudhi ekufambisa haana kubviswa; muchina kwete level; kusaenzana mutoro. | Remove transport bolts (if applicable); adjust leveling feet; redistribute laundry evenly. |
| Zvakaipa kusuka mhinduro | Incorrect detergent dosage; overloaded machine; wrong program selected. | Use correct detergent amount; do not overload; select appropriate program for fabric type. |
Zvinotsanangurwa
Key technical specifications for the Electrolux Top-Load Washing Machine EW6T426A.
- Brand: Electrolux
- Model Number: EW6T426A (Internal: 913 148 480)
- Kugona 6 makirogiramu
- Zviyero (Kudzika x Upamhi x Kureba): 60 masendimita x 40 masendimita x 87 masendimita
- Kurema 58 makirogiramu
- Kirasi Yekuita Nesimba: A
- Kudzora Type: Bata
- Special Feature: Kubudirira Kwepamusoro
- Access Position: Pamusoro Mutoro
- Ruvara: Chena
- Operating Mode: Automatic

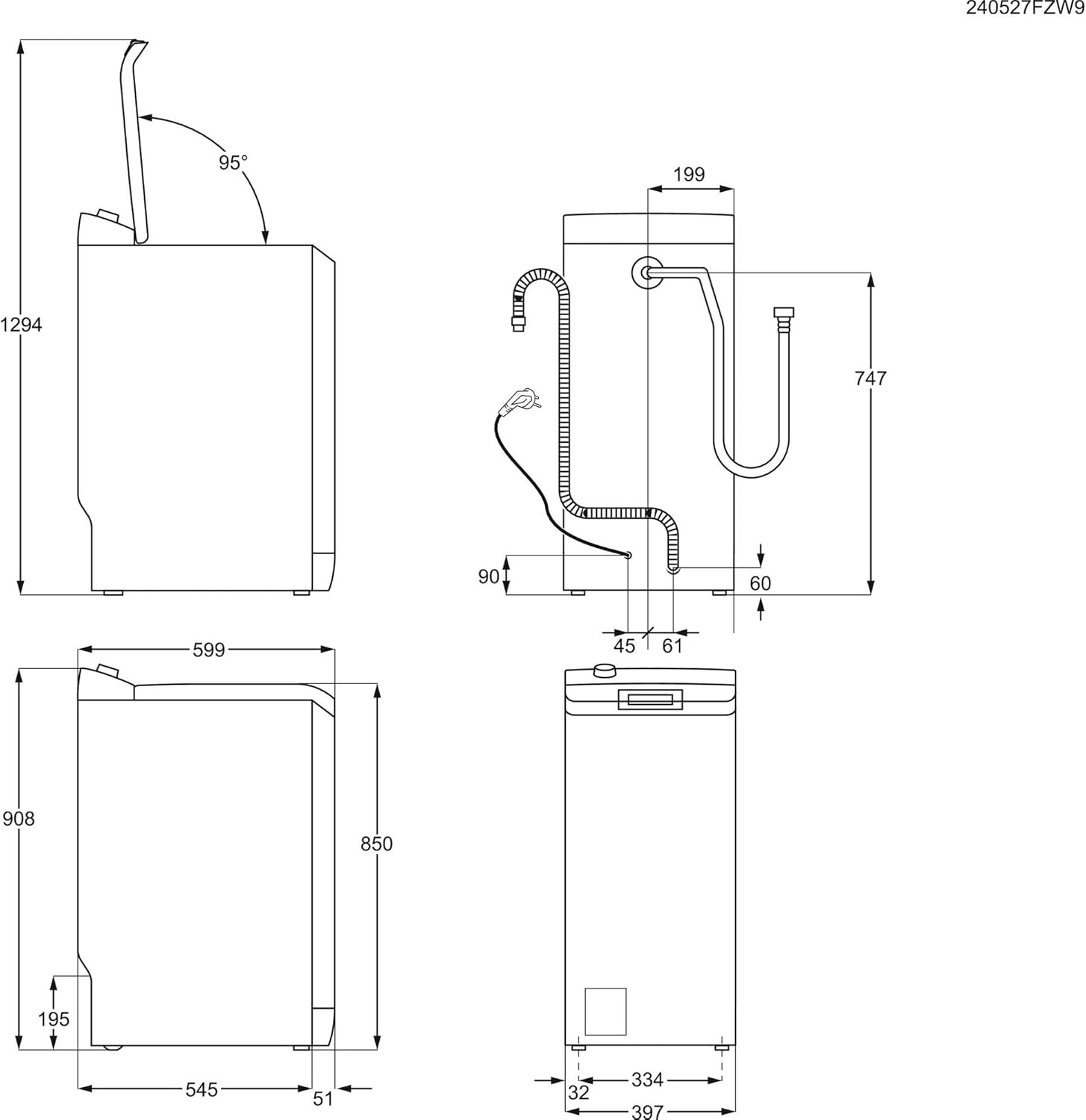

Image: Technical drawing illustrating the dimensions and connections of the Electrolux Top-Load Washing Machine.
Warranty uye Support
Kuti uwane ruzivo nezvewarandi uye rutsigiro rwevatengi, ndapota tarisa kadhi rewarandi riri muchigadzirwa chako kana kushanyira Electrolux yepamutemo. website. Chengetedza risiti yako yekutenga sehumbowo hwekutenga kwezvichemo zvewaranti.
If you encounter issues that cannot be resolved using the troubleshooting guide, please contact Electrolux customer service for assistance. Ensure you have your model number (EW6T426A) and serial number ready when contacting support.
Unogona kuwana rumwe ruzivo uye zviwanikwa zvekutsigira pa Chitoro cheElectrolux Brand paAmazon.
