CRUA 28 Inch 4K UHD+ IPS Monitor (Model CR280HDM) - Instruction Manual

1. Nhanganyaya

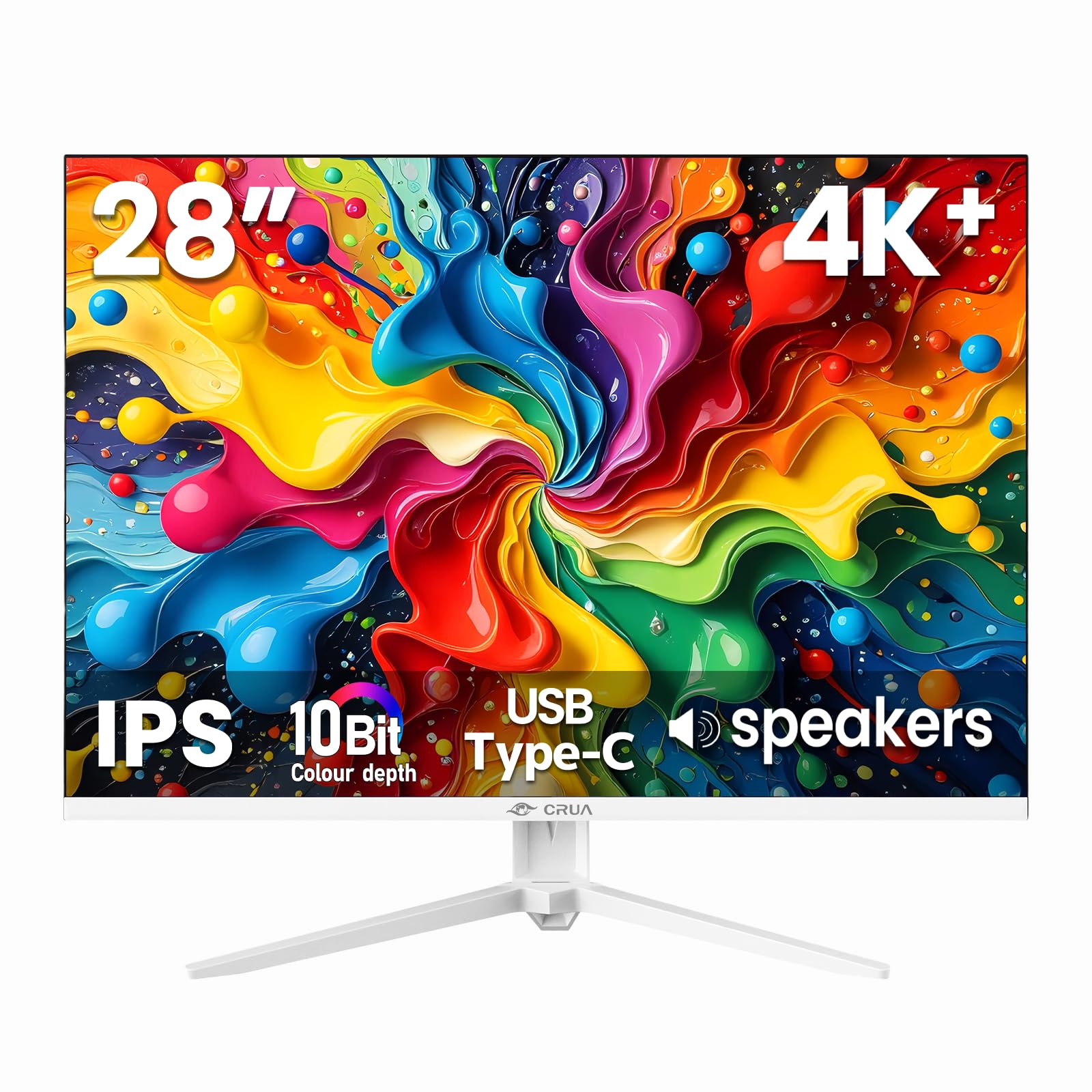

Thank you for choosing the CRUA 28 Inch 4K UHD+ IPS Monitor. This monitor is designed to deliver stunning visual clarity and vibrant colors for an immersive viewing experience, whether for work, gaming, or creative projects. Featuring a 3840×2560p resolution, 60Hz refresh rate, and extensive connectivity options, it is built to enhance your digital interactions.

Please read this manual carefully before operating your monitor to ensure proper setup and optimal performance. Keep this manual for future reference.

2. Package Zviri mukati

Ensure all items are present in the box before proceeding with the setup:

• 28-inch white monitor
• Base and support
• User instructions (this manual)
• DP cable x1 (4.92 ft)
• Type-C cable x1 (4.92 ft)
• Power adapter x1 (4.92 ft)

3. Setup

3.1. Kuungana kweMonitori

Kuunganidza chigadziko chemonitor:

1. Nyatsobvisa chevha kubva pakurongedzerwa kwayo, woiisa yakatarisa pasi panzvimbo yakapfava, yakachena kudzivirira makwara.
2. Attach the stand support to the back of the monitor.
3. Secure the base to the stand support using the provided screws.

Alternatively, the monitor is wall-mountable (75×75mm VESA compatible) for flexible ergonomic setups.

3.2. Connecting Your Monitor

The CRUA monitor offers versatile connectivity options:

• HDMI2.0: Connect your computer, gaming console, or other HDMI-enabled devices using one of the two HDMI 2.0 ports.
• DisplayPort 1.4: For high-resolution and refresh rate connections, use the DisplayPort 1.4.
• USB Type-C: Connect compatible devices for video, data transfer, and power delivery (charging).
• 3.5mm Audio Jack: Batanidza vatauri vekunze kana mahedhifoni.

Ensure the power adapter is securely connected to the monitor and a power outlet.

4. Kushandisa Monitor Yako

4.1. Pa-Screen Display (OSD) Menyu

The OSD menu allows you to adjust various monitor settings. Buttons are typically located on the back or bottom edge of the monitor. Common controls include:

• Bhatani reSimba: Inobatidza / kudzima monitor.
• Bhatani reMenu: Accesses the OSD menu.
• Navigation Mabhatani: Used to move through menu options and adjust values (e.g., brightness, contrast, input source).

4.2. Key Features

• Ultra-Sharp 4K Visuals: Enjoy a 3840×2560p resolution on a 28-inch IPS panel with a 15:10 aspect ratio, 1.07 billion colors (8-bit+FRC), 120% sRGB, 270 cd/m² brightness, and 1200:1 contrast ratio for vivid and true-to-life images.
• IPS Panel & Wide Viewing Angles: Consistent and accurate colors are maintained across a wide 178° viewing angle, ideal for various professional and entertainment uses.
• Smooth Gaming & Eye Protection: AMD FreeSync technology and a 60Hz refresh rate provide tear-free gameplay. A built-in blue light filter helps reduce eye strain during extended use.
• Flexible Ergonomic Setup: Adjust the monitor with tilt support (-5° forward, 15° backward) or mount it on a wall using the 75×75mm VESA standard.
• Vakavakwa-Vatauri: Integrated speakers deliver clear audio, eliminating the need for external audio devices.

5. Kuchengeta

To ensure the longevity and optimal performance of your CRUA monitor, follow these maintenance guidelines:

• Kuchenesa Screen: pukuta skrini zvinyoro nyoro nemucheka wakapfava, usina lint. Pazvibodzwa zvakasindimara, zvishoma dampsn jira nemvura kana mushonga wekuchenesa skrini. Dzivisa makemikari ane hasha kana abrasive zvinhu.
• Kuchenesa iyo Casing: Shandisa jira rakapfava, rakaoma kuchenesa chemonitori casing.
• Kufefetedza Ensure the monitor's ventilation openings are clear and unobstructed to prevent overheating.
• Power Off: Always power off the monitor and unplug it from the power outlet before cleaning or if it will not be used for an extended period.

6. Kugadzirisa matambudziko

Kana ukasangana nenyaya nemonitor yako, tarisa kune anotevera akajairika matanho ekugadzirisa matambudziko:

• Hapana Kuratidzwa/Sikirini Nhema:
  • Tarisa kana monitor yakabatidzwa uye kana tambo yemagetsi yakabatana zvakanaka.
  • Verify that the video cable (HDMI, DisplayPort, or USB-C) is correctly connected to both the monitor and your computer/device.
  • Iva nechokwadi chekuti sosi chaiyo yekuisa yasarudzwa pamonitor kuburikidza neOSD menu.
  • Test with a different video cable or device to rule out cable or source issues.
• Flickering/Unstable Image:
  • Check the video cable connections for looseness.
  • Rongedza mwero wekuvandudza mumasetin'i ekombuta yako.
  • Disable AMD FreeSync in the OSD menu if issues persist.
• Hapana Audio kubva kumaSpeaker Akavakirwa Mukati:
  • Ensure the monitor's volume is not muted or set too low in the OSD menu.
  • Check your computer's audio output settings to ensure the monitor is selected as the playback device.
  • Verify the audio source is working correctly.
• Image Too Dark/Bright/Incorrect Colors:
  • Gadzirisa kupenya, kusiyana, uye marongero emavara uchishandisa menyu yeOSD.
  • Gadzirisa zvakare cheki kufekitori default zvigadziriso kuburikidza neOSD menyu.

If these steps do not resolve the issue, please contact CRUA customer support for further assistance.

7. Zvinotsanangurwa

8. Warranty uye Tsigiro

CRUA provides high-quality computer monitors and premium services. For any questions or issues regarding your CRUA 28 Inch 4K UHD+ IPS Monitor, please contact our customer support team. We are committed to serving you and solving all your problems.

Ndapota tarisai magwaro enyu ekutenga kuti muwane ruzivo rwakakwana rwewarandi uye ruzivo rwekuonana.
