artfone CS181 Senior Mobile Phone User Manual

Nhanganyaya

This manual provides detailed instructions for the safe and efficient use of your artfone CS181 senior mobile phone. Please read this manual carefully before using the device and keep it for future reference. The artfone CS181 is designed for ease of use, featuring large buttons, clear display, and essential functions for reliable communication.

Package Zviri mukati

• artfone CS181 Mobile Phone
• Bhatiri (800mAh)
• USB-C Kuchaja Cable
• User Manual
• Lanyard (inogona kusiyana nepakeji)

Mudziyo Pamusoroview

Familiarize yourself with the main components and design of your artfone CS181 phone.

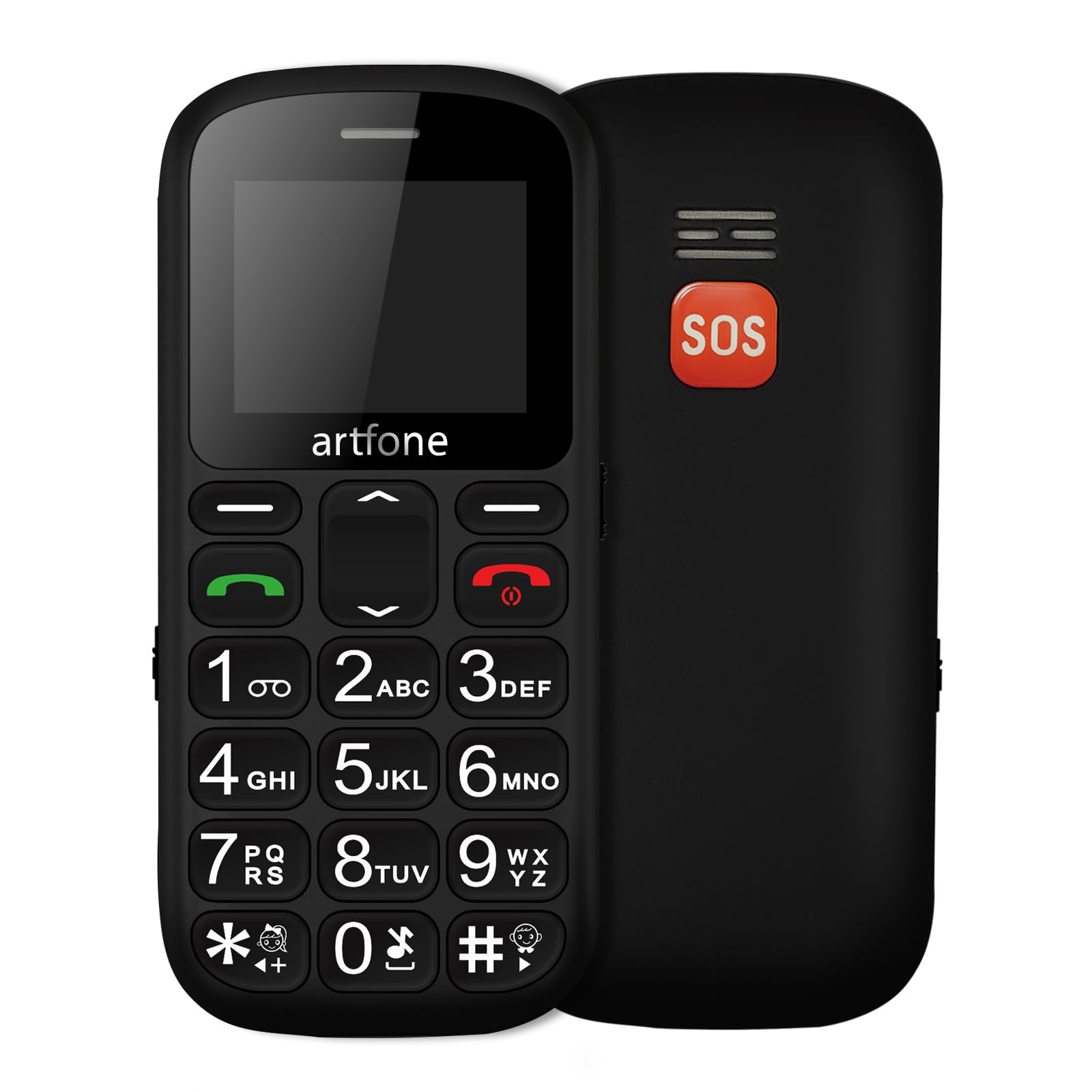

Mufananidzo: Mberi neshure view of the artfone CS181 mobile phone, showcasing its large keypad and the SOS button on the rear.

Mufananidzo: Diagram illustrating the dimensions of the artfone CS181 phone from various angles.

Gadzirira

1. Installing the Battery and SIM Cards

The artfone CS181 supports dual SIM cards (2G GSM network). Ensure the phone is powered off before installation.

1. Bvisa chifukidziro chekumashure chefoni nekuchivhura zvinyoro nyoro kubva panotch.
2. Insert the 800mAh Lithium-ion battery into its compartment, ensuring the contacts align correctly.
3. Locate the SIM card slots. Insert your 2G GSM SIM card(s) into the designated slots, ensuring the gold contacts face downwards and the cut corner aligns correctly.
4. (Optional) If using a memory card, insert it into the memory card slot.
5. Dzorera chivharo chekumashure kusvika chadzvanya zvakanaka panzvimbo.

Mufananidzo: Internal view of the artfone CS181 showing the battery compartment, dual SIM card slots, and memory card slot.

2. Kuchaja Foni

Usati washandisa kekutanga, chaja bhatiri refoni zvizere.

1. Connect the USB-C charging cable to the charging port on the phone.
2. Connect the other end of the cable to a compatible USB power adapter (not always included) or a computer's USB port.
3. The charging indicator on the phone's screen will show the charging status. Disconnect the charger once the battery is full.

3. Powering On / Off

• Kuti ubate: Dzvanya wobata bhatani Kufona kweSimba/Kugumisa button (red button) until the screen lights up.
• Kudzima: Dzvanya wobata bhatani Kufona kweSimba/Kugumisa bhatani kusvika sarudzo dzekudzima magetsi dzaonekwa, wobva wasarudza "Kudzima magetsi".

4. Pakutanga Zvirongwa

Upon first power-on, you may be prompted to set the language, date, and time. Follow the on-screen instructions.

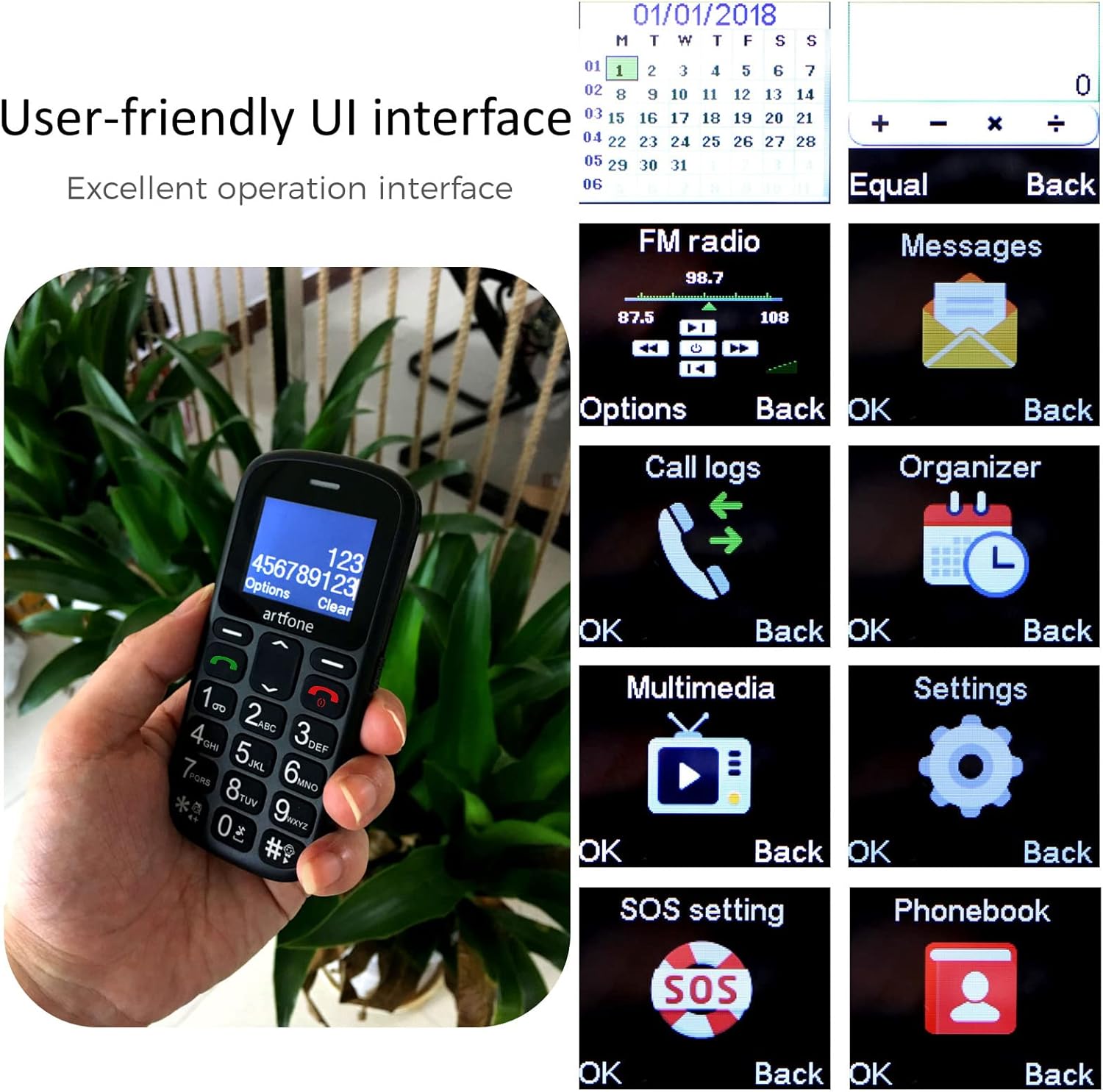

Mufananidzo: The artfone CS181's user-friendly interface with large, clear menu icons for functions like FM radio, messages, call logs, and settings.

Operating Instruction

1. Kuita uye kugamuchira mafoni

• Kufona: Isa nhamba yefoni uchishandisa keypad wobva wadzvanya bhatani rekuti Call bhatani (girini bhatani).
• Kupindura runhare: Press the Call button (green button) when the phone rings.
• Kupedza kufona: Press the End Call bhatani (bhatani dzvuku).
• Chiziviso Chezwi: The phone can announce dialed numbers in English, German, French, Spanish, and Italian. This feature can be enabled or disabled in the settings menu.

2. Kutumira nekugamuchira mameseji eSMS

• Navigate to the "Messages" menu.
• Select "Write message" to compose a new SMS.
• Isa nhamba yearikugamuchira kana sarudza kubva kune vanobatika, wobva wanyora meseji yako.
• Press "Send" to transmit the message.

3. SOS Emergency Call Function

The SOS button is located on the back of the phone and is designed for quick access to emergency contacts.

1. Setting up SOS numbers: Enda ku Menu > Settings > SOS Settings. You can pre-program up to five emergency numbers and an emergency SMS message.
2. Kushanda kweSOS: Kana paine dambudziko, dzvanya wobata bhatani SOS bhatani for 3 seconds. The phone will automatically dial the pre-programmed numbers in sequence and send the emergency SMS.
3. Canceling SOS: If activated by mistake, you can cancel the SOS call within 3 seconds by pressing any key.

Mufananidzo: A finger pressing the prominent orange SOS button located on the back of the artfone CS181 phone.

4. Tochi

The phone includes a bright flashlight for convenience.

• To turn on/off: Press the dedicated flashlight button on the left side of the phone.

Mufananidzo: The artfone CS181 phone with its flashlight illuminated, showing the light beam and the location of the flashlight LED.

5. FM Radio

Listen to your favorite FM radio stations.

• Navigate to the "FM Radio" menu.
• Use the navigation keys to scan for stations or manually tune.

6. Makaralı

Connect your phone to Bluetooth headsets or other devices.

• Enda ku Menu > Settings > Bluetooth.
• Batidza Bluetooth wotsvaga zvishandiso zviripo.
• Select the desired device to pair.

7. Keypad Lock/Unlock

Prevent accidental key presses by locking the keypad.

• To lock: Press the dedicated keypad lock button on the right side of the phone.
• To unlock: Press the dedicated keypad lock button again.

8. Speed Dial Setup

Assign frequently called numbers to speed dial keys (1-9, *, #).

1. Enda ku Menu > Settings > Speed Dial.
2. Select a key (e.g., "1") and assign a contact from your phonebook.
3. To use: Press and hold the assigned speed dial key to call the contact.

Maintenance

1. Battery Care

• Use only the original or approved charger and battery.
• Dzivisa kuisa bhatiri kune tembiricha yakanyanyisa.
• Usaboora, kupatsanura, kana kupfupisa bhatiri.
• If the phone will not be used for an extended period, charge it partially and store it in a cool, dry place.

2. Kuchenesa nekuchengetedza

• Clean the phone with a soft, dry cloth. Do not use liquid cleaners.
• Keep the phone away from dust, moisture, and direct sunlight.
• Avoid dropping the phone or subjecting it to strong impacts.

Kugadzirisa matambudziko

Zvinotsanangurwa

Warranty uye Support

Your artfone CS181 mobile phone comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact artfone customer service through their official websaiti kana mutengesi kwawakatenga chigadzirwa.

Kuti uwane rumwe ruzivo, shanya iyo artfone Brand Store.
